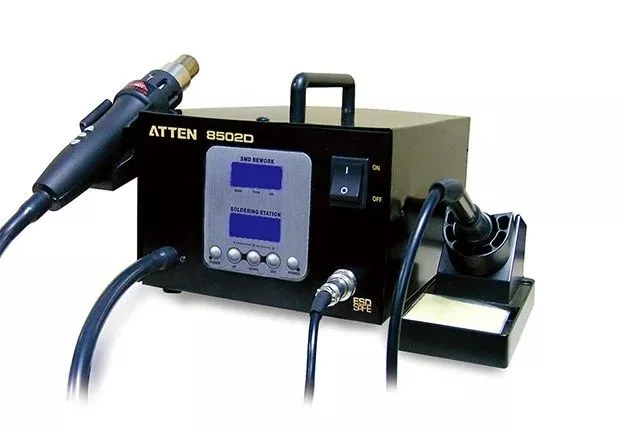

Atten AT8502D 2 in 1 Rework Station

The ATTEN AT8502D 2 in 1 Rework Station includes a 550W hot air station and a 50W soldering station.

€199.00*

Content: 1

incl. VAT. (inactive)

Prices excl. VAT plus shipping costs

2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.

In Stock, Delivery time: 1 - 3 days

Further information

4002 PCBite mounting kit (A5 base plate)

€59.00*

4002 PCBite mounting kit (A5 base plate)

€59.00*

Product number: AT8502D

Manufacturer: Atten

AT8502D 2 in 1 Rework Station

Offer

Description

The AT8502D station is ideal for precise work with MCU and PID algorithm controlled temperature. The 2 in 1 system offers two large & high resolution LCD screens on which the soldering and air temperature can be intuitively set. Three different air and soldering temperatures can be easily programmed individually and can be called up directly by pressing the corresponding selection button. In addition, the soldering and hot air module has a built-in sleep function that automatically lowers the temperature or switches off the device to ensure a longer service life of the device and the soldering tips. Furthermore, an intelligent error display is available, which informs the user of errors.

Heißluftsystem

Intelligent cooling system is in place and can automatically delay the air supply when the unit is turned off, which greatly extends the life of the heater core and holder.
Sprial heater core is used, which contributes to longer service life.
The handpiece of the hot air gun has been redesigned to make the air more uniform. It is tremendously durable, which is ideal for maintenance, storage and transportation.
The patented heating system ensures very fast heating up
Additionally available is an independent cold air function to cool components.
The built-in diaphragm pump ensures a constant pressure and is therefore suitable for various types of nozzles.

Lötsystem

The soldering station uses a split heater core material that provides heat conduction and an extremely high temperature return speed. It takes only 10 seconds from room temperature to 350°C.
The front sensor is used to ensure high accuracy of temperature control and good temperature stability.
The soldering iron handle holder is lightweight and convenient, and includes a sensor that initiates sleep mode when innactivity is detected.

Productvideo

AT8502D Overview

Technical Data

System	Hot Air System	Soldering System
Power	550 W	50 W
Temperature range	100 - 500°C	200 - 480°C
Volume flow (max)	23 L/min	-
Operating volume	<52dB(A)	-
Temperature for calibration	-50~+50℃	-50~+50℃
Temperature stability	5°C	2°C
Earth resistance	2 Ohm	2 Ohm
Earth potential	< 2mV	< 2mV
