Product configuration
Description

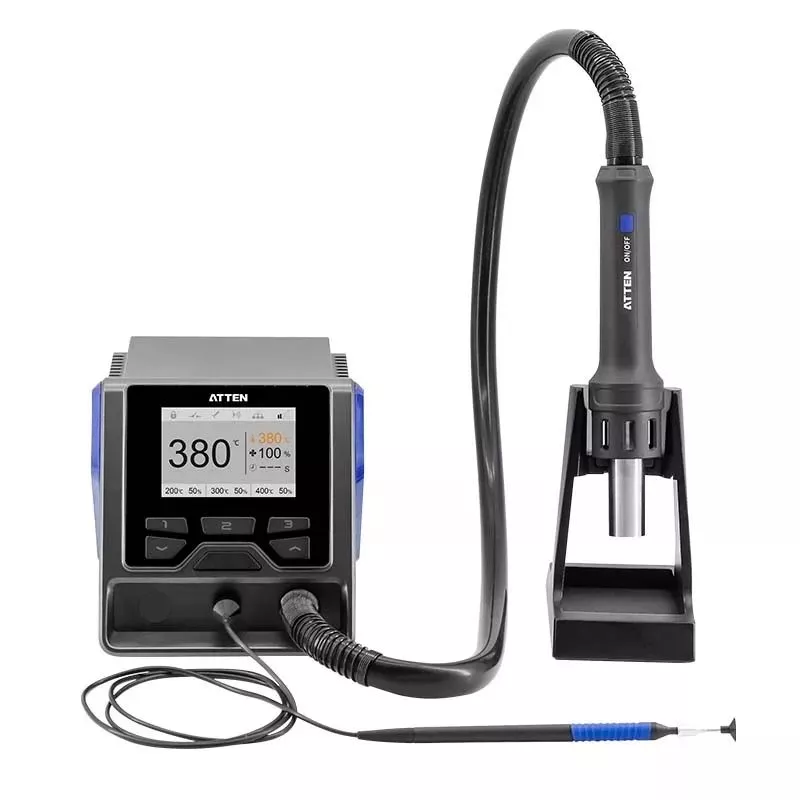

The ATTEN GT-1028 soldering station is an intelligent digital 2 in 1 hot air station with 1000 W heating element for temperatures from 100 - 500 °C. With the help of the vacuum pin, components can be easily removed after heating the solder.
Features
- Intuitive menu navigation through large silicone buttons
- Display of parameter data as well as information in the form of a graphic display on a large screen
- 3 configurable temperatures and air flow setting are available at the touch of a button
- Can be controlled via an external pedal
- Very fast heat-up due to 1000 watt heating core: from room temperature to 350 °C only approx. 8 s
- High-contrast multifunctional LC display for status and programming display
- Temperature freely selectable between 100 °C and 500 °C
- Temperature stability: ± 1 °C (without load / MCU-controlled temperature calibration)
- Automatic, adjustable temperature setback to 100 °C during soldering breaks (1-120 min)
- ESD-safe design, low-voltage heating completely isolated from power supply
- LCD display that facilitates monitoring of parameters and system setting.
- Plug-in design facilitates change of handle and heater elements.
- Built-in RS-485 communication interface, supports IoT function.
- Built-in brushless fan (airflow can reach 120 l/min)
- Infrared temperature calibration function.
- Supports timing / manual heating mode
- Password protection function Make parameter setting with permission.
- Automatic standby/air delay after power off makes work safer.
Hardware details
The Atten GT-1028 Rework Station has 1000 watts of power and is supplied with suitable PC software for control. The station is equipped with a user-friendly display with which the most important functions can be accessed via intuitive menu navigation. The soldering station automatically lowers the temperature to 100°C when not in use. Three different temperatures can be easily programmed individually and can be called up directly by pressing the corresponding selection button.
The Rework Station has a temperature stability of 1°C and enables precise rework.
Included nozzles
Technical Data
| Model |  GT-1028 |
|---|---|
| Rated working voltage | AC 230 V ±10 % 50 Hz / ( 110 V ±10 % 60 Hz ) |
| Rated power | 200 W |
| Maximum power | 1300W |
| Heating power | 1300W |
| Temperature range | 100 ℃ ~500 ℃ / 212 ℉ -932 ℉ |
| Air volume range | 1 % ~ 100 % |
| Timing time | 10 ~ 900 s ( can be switched off ) |
| Temperature unit | ℃ / ℉ ，℃ by default |
Air flow | 120L/min ( Max .) |
| Multiple alarm and protection functions | Open heating circuit alarm, sensor error alarm, zero crossing signal alarm, SCR damage alarm, overtemperature protection alarm |
| Password protection function | 3 groups short-time temperature |
| Password protection function | Available (disabled by default) |
| Alarm function | Available (enabled by default) |
| User temperature compensation | ±50 ℃ / ±90 ℉ |
| Temperature adjustment step | Long press for an adjustment of 10 units, short press for an adjustment of 1 unit |
| Air volume adjustment steps | Long press for 2 unit adjustment, short press for 1 unit adjustment |
| Vacuum pressure | -80Kpa |
| Fast temperature/airflow/time | 3 groups of temperature/air volume/time, quick recall |
| Working conditions | Temperature 0 ℃ ～40 ℃ Relative humidity ＜85 % RH |
| Dimensions | 315 (L) x 252 (W) x 127 (H) mm |
| Weight (NW) | Approx. 4.78 kg |
