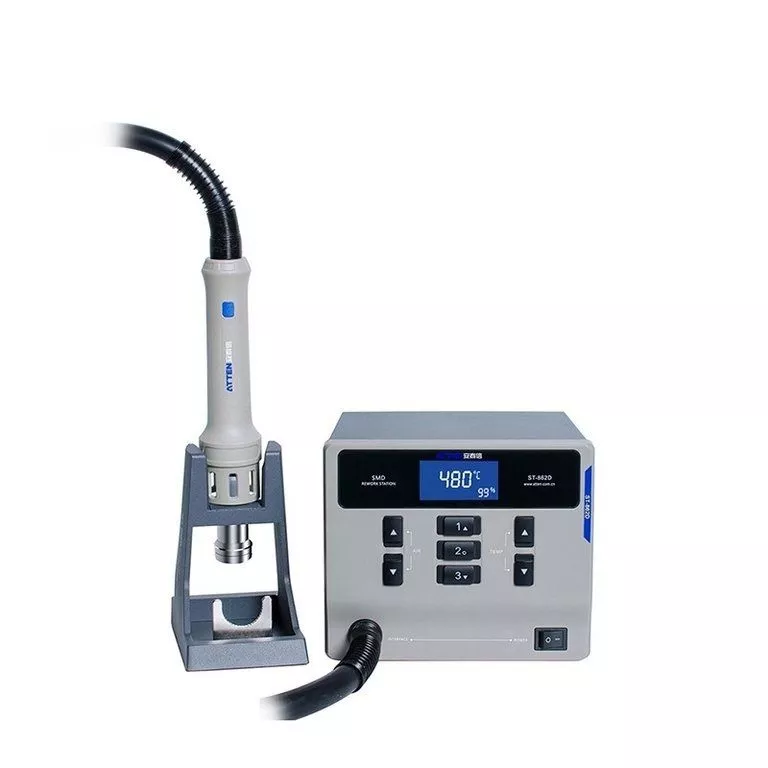

Atten ST-862D Hot Air Station

The ATTEN ST-862D hot air soldering station is a unit with 1000 watts of power, which allows the station to reach operating temperature very quickly.

€164.00*

Content: 1
  • 2.5% advance payment discount

Available in 30 days, Pre-order possible

Further information
Request a quote
Paypal-icon
Mastercard-icon
visa-icon
klarna-icon
Sepa-lastschrift-icon
invoice-icon
Product number: ST-862D
Manufacturer: Atten

Description

The ATTEN ST-862D hot air soldering station is a hot air station with 1000 watts of power. Due to the high wattage, the station reaches operating temperature very quickly. The temperature can be set manually between 100 and 480 degrees °C or set to one of three user-defined temperatures with the push of a button. The device has an adjustable flow rate (max. 120 L/min). Temperature and volume flow as well as a variety of built-in functions such as an auto-sleep function can be regulated with the silicone buttons. In addition, the system has an overheat protection system as well as a good cooling system, which ensures long operating times in harsh environments.

Features

  • Patented heater for rapid heating
  • Switchable between target and actual temperature.
  • Intelligent cooling system and delayed shutdown function to extend the life of the handpiece.
  • LCD screen for visualization of the control.
  • Temperature adjustment protection, automatic time-controlled switch-off.
  • MCU controlled temperature calibration, constant work compensation.
  • High airflow with brushless fan.
  • Convertible with Straight Air and Spiral Air.
  • Auto sleep function.
Übersicht Düsen ST-862D Atten

Hardware details

The Atten ST-862D hot air station features precise control and MCU-based calibration. The LED screen for displaying working temperatures and working states makes it easy to operate and access the most important functions. The embedded sensor in the trigger piston enables an automatic sleep mode to save energy. The intelligent cooling system enables maximum system service life. The device has an internal memory in which a number of frequently used temperature and airflow settings can be saved. In addition, digital control for airflow classes (A25-A99) is available. In addition to the hot air function, the device can also generate an air flow at room temperature to cool components.

Included nozzles

Atten A-2605 Düse
A-2605 noozles
A-2608 Atten Düse
A-2608 noozles
B-2608 Düse
B-2608 noozles
B-2610 Atten Düse
B-2610 noozles

Productvideo

ST-862D Review

Technical Data

Device SpecificationAtten ST-862D Heißluftstation small
ST-862D
Power1000 watt
Temperature range100℃ - 480℃
Temperature Accuracy (outgoing air)35℃
Flow rate (air)120 L/min (max) | 30 L /min (min)
Flow rate setting range10% - 100%
Available temperature units°F / °C
Standby cooling functionYes
Error detectionShort circuit / missing heating element / overheating
Beep alarm functionAvailable
Quick access3 user-defined temperatures and flow rates
Temperature compensation50°C
Heating statusDisplay on LCD display
Timing function20s to 600s (adjustable)
Temperature setting10 digits / 1 digit (fine adjustment)
Flow rate setting2 digits / 1 digit (fine adjustment)
Volume<52dB(A)
Operating temperatur0℃~40℃
