Description

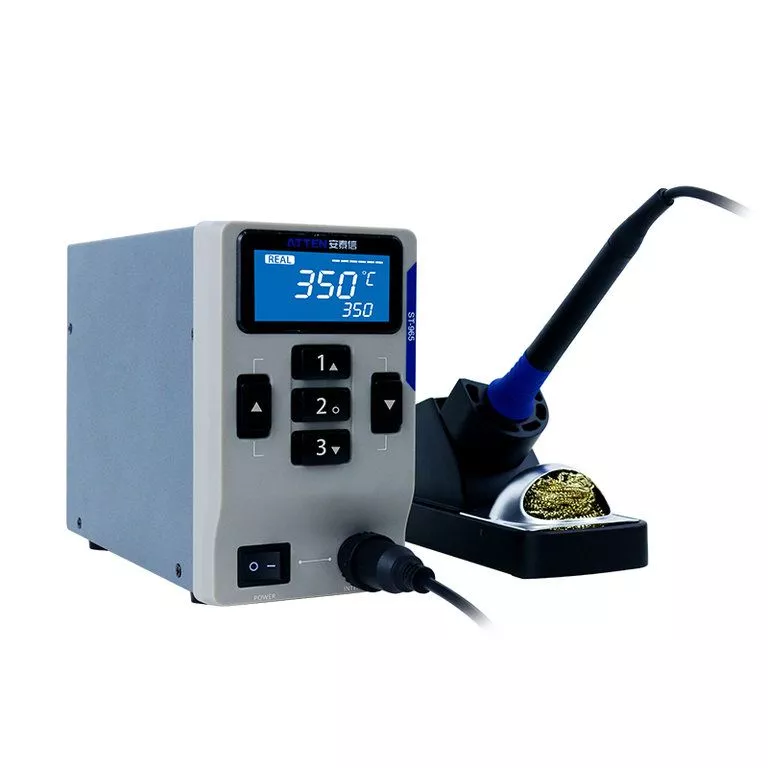

The Atten ST-965 soldering station has a high-quality heating element with 65 watts of power. The ST-965 is equipped with a user-friendly display. The soldering station automatically lowers the temperature to 200°C when not in use. This allows for a longer life of the soldering tip. Three different soldering temperatures can be easily programmed individually and called up directly by pressing the corresponding selection button.
The soldering station is covered with a soldering holder. With 65 watts of power, the soldering tip heats up very quickly, and the high temperature stability (2°C) also enables very precise work. The soldering station comes with a round soldering tip with a diameter of 0.2 mm. You can see more soldering tips under accessories.
Features
- Max. Power of 65 W, soldering iron 28 V AC
- Very fast heating: from room temperature to 350 ° C only approx. 10 s
- Internally heated soldering tip, fast and efficient heat transfer to the entire soldering tip
- High-contrast multifunction LC display for status and programming display
- Control of operational readiness by bar display
- Soldering iron with flexible connection cable
- Direct programming of all functions via a simple menu navigation and just a few buttons
- Soldering tip temperature freely selectable between 200 ° C and 450 ° C
- 3 freely adjustable temperature memories
- Exact calibration of the temperature possible, calibration range ± 50 ° C
- Temperature stability: ± 1 ° C (without load / MCU-controlled temperature calibration)
- Temperature setting possible in 5-degree or 1-degree steps
- Protection against changing the soldering tip temperature
- Automatic, adjustable temperature reduction in soldering breaks to 200 ° C (1–120 min)
- Warning in the event of device malfunctions
- Acoustic feedback when a button is pressed (can be switched off)
- ESD-safe design, low-voltage heating completely separated from the power supply
- Freely adjustable soldering iron holder
- Dim. (W x H x D): 168 x 95 x 110 mm
- High quality four-wire heating element with silver alloy for quick heating
- Intelligent detection of work or non-work status.
- Low voltage heating separated from the power supply to make the soldering work safer.
- Interchangeable 900M series (soldering tips) to save usage costs.
- Password protecting function and temperature unite switching function
Technical Data
| Model |  ST-965 |
|---|---|
| Power | 65 Watt |
| Temperature range | 150°C - 450°C |
| Temperature offset range | ±50°C |
| Temperature setting | 5 digits (Default)/1 digit (Fine-tuning) |
| Temperature stability | 1°C |
| Heating element | Silver alloy heater |
| Sicherheitslevel | Klasse 1 (Steuerung) Klasse 3 (Zubehör des Lötgriffs) |
| ESD Safe | ✓ |
| Earth resistance | < 2 Ohm |
| Earth potential | < 2 mV |
| Dimensions | 168 x 110 x 95mm |
| Weight | 2.1 Kg |
| Channels | 1 |
| Voltage | 230 V / 50 Hz |
| RoHS | Conform |
