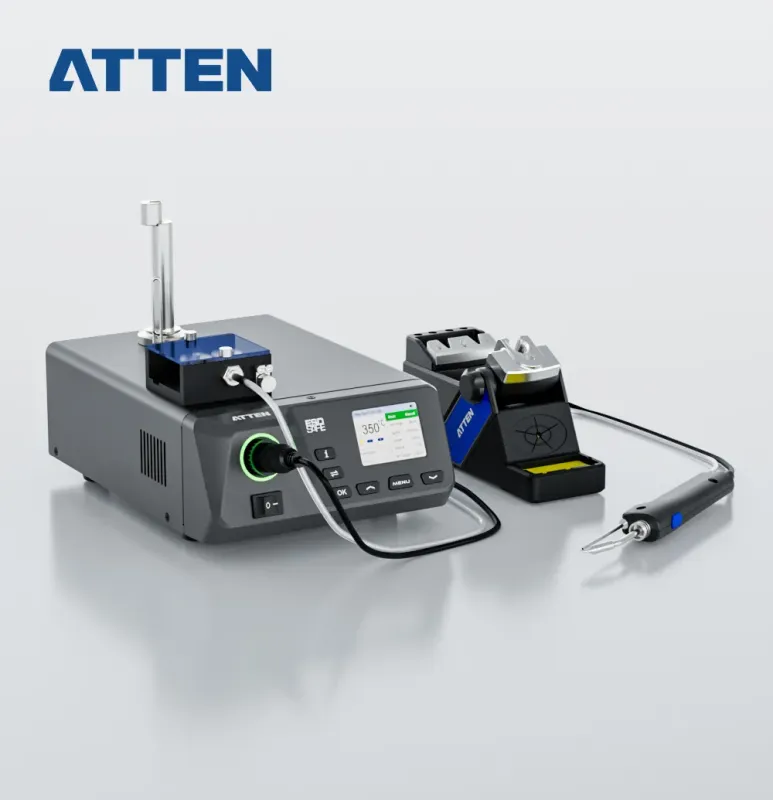

Atten ZT-660-150G Soldering station with automatic feeder

The station has an automatic feeder for 1 mm solder wire so that it no longer needs to be held.

€499.00*

Content: 1

Volume discounts on request!

incl. VAT. (inactive)

Prices excl. VAT plus shipping costs

2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.

In Stock, Delivery time: 1 - 3 days

Further information

4002 PCBite mounting kit (A5 base plate)

€59.00*

4002 PCBite mounting kit (A5 base plate)

€59.00*

Product number: ZT-660-150G

Manufacturer: Atten

ZT-660-150G Soldering station with automatic feeder

Offer

Description

The ZT-660-150G station has an automatic feeder for 1 mm solder wire so that it no longer needs to be held, which improves efficiency, the soldering result and makes soldering considerably easier.

Features

Automatic tin dosing system, one-handed operation, simple and easy welding, increases work efficiency.
Temperature control range from 80 °C to 500 °C, stable and precise temperature control.
Antistatic design prevents damage to sensitive components due to static charge.
Adjustable solder return flow rate to reduce solder waste.
Adjustable speed and length of tin feed.

Productvideo

Functions of the ZT-660-150G station

Technical Data

Model	ZT-660-150G
Voltage	AC 220-240 V ~ 50/60 Hz (AC 110-120 V ~ 60 Hz)
Power output	180 W (±10 %)
Temperature range	80 °C - 500 °C
Temperature compensation	±50 °C
Antistatic design	Yes
Operating environment	0 °C - 40 °C, humidity <85 % RH
Quick parameter profiles	10 freely programmable profiles
Dimensions (main device)	275 × 180 × 117 mm
Weight (main unit)	≈4.1 kg
Handle model	ZP-155G
Handle power	≥150 W
Handle heating core	T155 series
Cable length	1,00 m
Handle dimensions	183 × 21 × 30 mm
Handle weight (net)	≈0.14 kg
Packaging inner box	450 × 330 × 215 mm, ≈6.5 kg
Outer carton packaging	465 × 345 × 455 mm (2 pieces/box), ≈14 kg
