€270.00*
In Stock, Delivery time: 1 - 3 days
Description

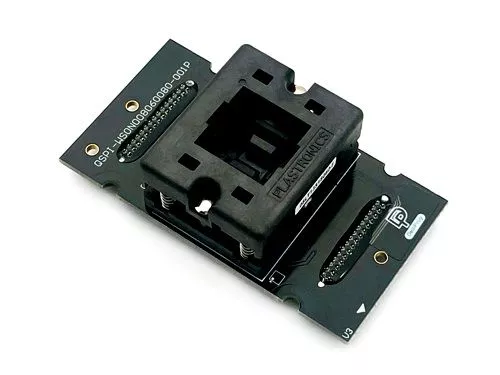

The WSON Socket Adapter is supported by the SF, Progmaster and StarProg series programmers as well as the K110 programmer.
- Optimized circuitry to improve programming performance of Quad IO, Dual IO and Single IO.
- Supports SPI Flash programming.
- Dediware version 3.16.28.13 and higher supports EEPROM programming.
- This socket adapter cannot be used on the K110/StarProg-A programmers to program I2C EEPROM.
Application instructions
1.) Make sure that the triangle mark on the lower left PCB is aligned with the triangle mark on the DediProg devices.
For a more detailed insertion direction, please download the document below.
Caution. Incorrect installation of the socket adapter may cause damage to the device and the socket.
2.) Align the pin 1 mark on the socket with pin 1 of the IC. Press the top of the socket down to insert the IC.
Visually check the connection between the socket and the device. If the connection is correct, the device is ready for programming.
3.) The use of a pick-up tool is recommended for handling the socket. Do not touch the circuit board directly, as dirt and static can cause errors when programming the device.
4.) Please remove the adapter from the device after finishing work.
Technical Data
| Model Specification |  QSPI-WSON008060080-001P |
|---|---|
| Package Type | WSON |
| Number of Pin | 8 |
| Type | Opentop |
| PCB Dimension | 64x34 |
| IC Size (mm) | |
| Length (D1 | 8 |
Width (E1) | 6 |
| Height (A) | 0.75 |
| Pitch(e) | 1.27 |
