Allows emulation of A2B 2.0 main or sub-nodes. Easy routing of any audio channels.
Volume discounts on request!
€1,289.00 Net
€1,533.91 incl. VAT
Shipping country
Customer Group
Währung
In Stock, Delivery time: 1 - 3 days
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- The “+ Audio model” also features integrated digital S/PDIF audio and analog audio inputs and outputs, allowing a direct connection to amplifiers, DACs, ADCs and audio analyzers without the need for external converters.
Product configuration
Description

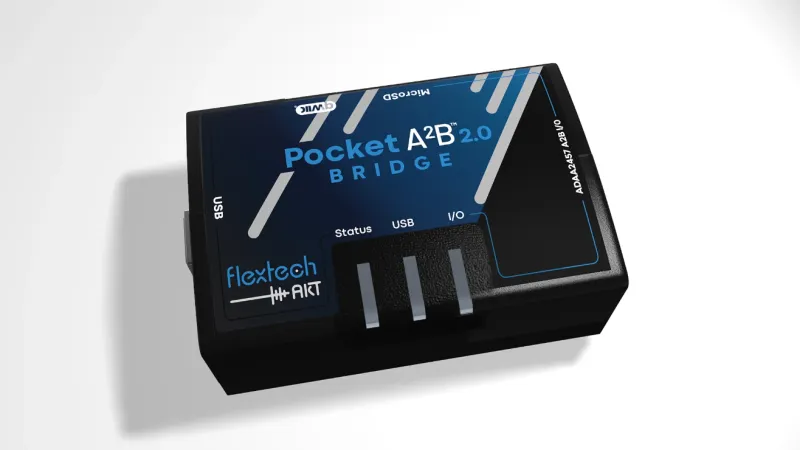

Automate A2B 2.0 bus discovery and setup directly via USB and effortlessly emulate A2B 2.0 main or subnodes. Easily discover the A2B 2.0 bus configuration or emulate a subnode for testing. Benefit from simple routing of any audio channel for recording, analysis, and playback.Features
- A²B 2.0 Pocket Bridge in the same pocket format
- Fully independent operation of the A²B 2.0 main or secondary node emulation
- Includes Python remote control API
- All command and control functions are fully user-programmable.
- Integrated VU meters and signal generators for audio channel testing
- Automatic bus configuration and detection on power-up with AKT Automation
- Automatic playback or recording of A²B bus audio WAV files
- Routing of any A²B 2.0 audio channels to bus nodes, WAV, VU or USB
- Full user programmability with the AKT Automation Lua API
- Additional audio connections: Stereo analog and S/PDIF inputs/outputs. Routing of any A²B audio slots to inputs/outputs.
Applications
A2B node emulation and audio routing for testing infotainment and audio systems- Head Unit (m)
- RNC Systems (m/s)
- Amplifier(s)
- ANC Systems (m/s)
- E-Call A2B (s)
- Accelerometer (s)
- Voice Assistants
- Remote Tuners
- A2B Microphones (s)
{{ n }}
License to automate startup, test configuration and self-start
Command-and-control API to support integration at the test platform level via Python, C and C++
Graphic VU meters monitor and display audio channels.
Routing and playback of audio channels on:
• Any A2B audio channels
• Signal generators between nodes
• USB channels on the PC for recording, analysis and playback from any DAW program
Supported operating systems (32-bit and 64-bit)
• Windows 10, 11
• Linux: Ubuntu 22.04
Hardware
- Pocket Bridge with standard USB UAC 2.0 interface
- Crossover board with DuraClick sockets for direct connection to ADI evaluation board
- 24-pin I/O connector with A2B and 2 GPIO lines
- Pocket Bridge I/O header JST 24B-PHDSS
software
Advanced automation available through LUA scriptingLicense to automate startup, test configuration and self-start
Command-and-control API to support integration at the test platform level via Python, C and C++
Graphic VU meters monitor and display audio channels.
Routing and playback of audio channels on:
• Any A2B audio channels
• Signal generators between nodes
• USB channels on the PC for recording, analysis and playback from any DAW program
Supported operating systems (32-bit and 64-bit)
• Windows 10, 11
• Linux: Ubuntu 22.04
Documentation
software
LUA Automation License
Product Nr.: AKT-LUA
Automate A²B bus configuration, bus monitoring, and command and control functions with Lua scripting.
€119.00*
Configuration for external IOVDD (TDM pins only)
Product Nr.: AKT-TDM-Pins
Configuration for external IOVDD (TDM pins only) for the Pocket TDM Bridge AKT-2000.
€0.00*
