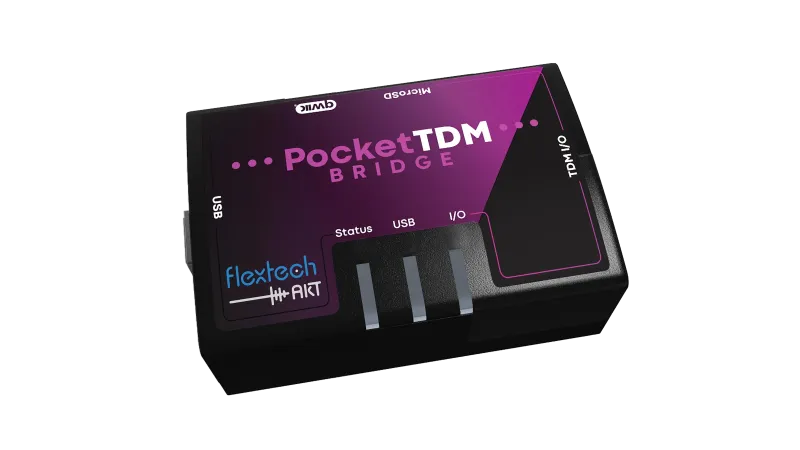

Develop and test DSPs, Class-D amplifiers, Bluetooth modules and A2B audio systems with the AKT-2000 V2 USB to TDM/I2S Pocket Bridge.
Volume discounts on request!
€599.00 Net
€712.81 incl. VAT
Shipping country
Customer Group
Währung
In Stock, Delivery time: 1-3 days
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Product configuration
Customize your product!
Click on a category below to view available options.
Description
USB interface and configuration of any TDM audio signals at chip level for transmit and receive tests. Easily set up Mclk, Fs and Bclk for serial TDM/I2S ports and route any TDM audio channel to or from the USB audio for recording and analysis.Features
- Precise TDM/I2S signal configuration and alignment
- Clock generation for low delay difference and jitter
- Bit-accurate audio via TDM and USB
- Supports 32 inputs and 32 outputs with up to 32-bit audio channels
- Flexible real-time audio routing via USB, WAV and TDM
- 10 TDM inputs and outputs (5 pairs) for up to 160 16-bit channels
- Integrated signal generators route to all TDM audio channels
- Integrated VU meter
- Compatible with ADI
- A2B transceivers for bus configuration and detection
- Micro SD card for TDM audio WAV file recording/playback or self-boot
- Includes a flexible cable set kit for interfacing TDM inputs and outputs, I2C, SPI and GPIO signals
New in AKT-2000 V2
- Software-selectable internal 3.3 V or external IOVDD
- All digital I/O interfaces (TDM, I2C, SPI and GPIO) switch to the selected IOVDD
- Supports external IOVDD from 1.8V to 5.0V
- Programmable alternate functions for TDM Pins 8 and 9 (available with a future firmware update)
- Secondary clock domain with BCLK and SYNC input/output
- Pocket TDM-to-Pocket TDM audio block synchronization
- Additional SPI slave select
- Additional GPIO interface
- Integrated S/PDIF input and output
Applications
- Testing integrated audio circuits (IC): direct TDM/I2S signal
- Debugging/testing: DSP, CODEC, ADC, DAC, AMP, BT
- Demonstration: Forwarding USB audio signals to any TDM audio device channel for playback.
- SD card: Record TDM as a WAV file or play back WAV as TDM
- Bridge to the DSIO interface on the hardware audio analyser (Ap, others)
Hardware
- Pocket TDM Bridge with standard USB UAC 2.0 interface, 24-pin I/O header cable set
- Connection header cable set with 12 signal lines
Software
Advanced scripting functions available to automate test configuration and self-start commands.Command and control API to support test platform level integration via Python, C and C++.
Graphical VU meter display to show audio data on all TDM channels.
Routing and playback of audio channels to:
1. Any USB audio channel to any TDM transmitter/receiver
2. SD card for playback or recording of TDM WAV files
3. USB channels on the PC for recording, analysis and playback from any DAW programme
Supported operating systems (32-bit and 64-bit)
- Windows 10, 11
- Linux: Ubuntu 22.04
Documentation
Option
LUA Automation License
Product Nr.: AKT-LUA
Automate A²B bus configuration, bus monitoring, and command and control functions with Lua scripting.
€119.00*
