Description

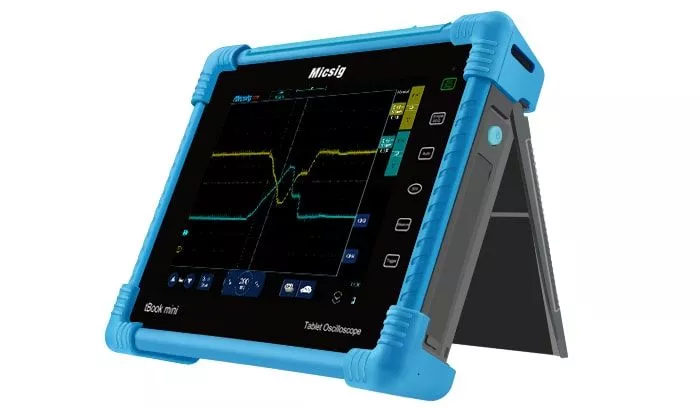

The ATO1104 is an oscilloscope from the Miscig tBook mini series, an innovative oscilloscope series that is the first in the world to be operated purely via touch. The ATO1000 series focuses on automotive diagnostics. In addition to serial bus decoding, the ATO also offers various automotive diagnostic functions such as charging and starter circuit tests, pressure tests such as cylinder compression and fuel pressure.
If models with rotary encoders are required, the STO1000C/E series is available, which, thanks to the additional analog buttons, is suitable both as a desktop oscilloscope and for mobile applications. An adapted version of Linux is used as the operating system, which means that the device has great system compatibility. In combination with battery operation and the touch screen, the ATO1104 oscilloscope is ideal for mobile use as well as for use as a desktop oscilloscope. The ATO1104 features a sample rate of up to 28 Mpts memory depth, a waveform capture rate of up to 130,000 wfm/s (segmented memory mode), 4 channels, 100 MHz bandwidth, and 1 GSa/s sample rate. In addition, it has a touch LCD display with a resolution of 800 * 600 pixels, which supports multi-touch operation. The oscilloscope app (IOS & Android) allows remote control of the oscilloscope via WIFI. The oscilloscope also has a USB and Ethernet interface.
The touch operation of the Micsig ATO1104 is intuitive. This simple operation is of course indispensable for users of smartphones and tablets today, but it is new and innovative for an oscilloscope. Due to the digital trigger system, the trigger jitter is very low and the triggering is highly precise. In addition, the oscilloscope supports serial bus triggers and bus decoding.
Features
- Integrated car diagnostic software
- Compact oscilloscope with 4 channels
- Bandwidth of 100MHz
- 1 GS/s real-time sample rate.
- Linux operating system
- Replaceable battery
- Up to 28 Mpts memory depth.
- 130,000 wfms/s acquisition rate
- 8"/20.3 cm industrial LCD, 800x600 resolution, capacitive multi-point touch screen.
- Interfaces: Ethernet/LAN, WiFi, USB 2.0 Host & Device; HDMI.
- Connection for probe calibration.
- Bus trigger and decode supported: UART, I²C, SPI, CAN, LIN.
- PC software, iOS and Android mobile app to control the oscilloscope remotely.
- Built-in 8G storage for waveform and video recording.
- Lithium battery, battery life up to 5 hours.
- Screen sharing via WiFi, USB and HDMI
Car diagnostic examples
Primary ignition test
Ignition diagnosis for primary and secondary ignition
Probe tests
ABS, lambda, knock, fuel sensor diagnosis etc.
Network tests
With network test for CAN, LIN, Flexray & K-line.
drive diagnostics
Automotive application examples
Mass Air Flow Sensor and Throttle Paddle Position Test
Audi Lin bus test
Can bus communication and power supply test
Tank Solenoid Valve Test
Mazda air mass meter test
BMW air mass meter testOszilloskop Features
8GB storage space
Built-in 8 GB memory & intuitive file management system.
Touch-Screen Keyboard
Software keyboard for the usual fast input with smart devices.
Many trigger functions
Serial bus decoding
Supports serial triggering and decoding (I2C, SPI, RS232/UART, CAN, LIN).
Automatic measurements
31 automatic measurements for the most diverse measurement requirements.
28 Mpts memory depth
Allows you to zoom in on an area of the acquired signal using the touch screen.
Mouse operation
Micsig's oscilloscopes can also be easily controlled using a standard USB mouse.
Automatic scaling
Automatically adjusts the offset in real-time according to the magnitude and frequency of the signal.
Technical Data
| Oscilloscope Model |  SATO1004 |  ATO1104 |  STO1104C Plus |
|---|---|---|---|
| Vehicle Diagnostics | Charging circuit, starter circuit, sensor, actuator, ignition test, communication test (incl. CAN, LIN, FlexRay, K, etc.), pressure test (cylinder pressure, intake and exhaust pressure, fuel pressure, etc.) | Charging circuit, starter circuit, sensor, actuator, ignition test, communication test (incl. CAN, LIN, FlexRay, K, etc.), pressure test (cylinder pressure, intake and exhaust pressure, fuel pressure, etc.) | None |
| Operating System | Android | Linux | Android |
| Bandwidth | 100 MHz | 100 MHz | 100 MHz |
| Channels | 4 | 4 | 4 |
| Memory Depth | 70 Mpts | 28 Mpts | 28 Mpts |
| Capture Rate | 130,000 wfm/s | 130,000 wfm/s | 80,000 wfm/s |
| Resolution | 8 Bit | 8 Bit | 8 Bit |
| Display | 8 Inch TFT LCD | 8 Inch TFT LCD | 8 Inch TFT LCD |
| Sampling Rate | 1 GSa/s | 1 GSa/s | 1 GSa/s |
| Rotary Encoder | ✓ | X | ✓ |
| Internal Memory | 32 GB | 8GB | 8 GB |
| Interfaces | Wi-Fi, USB 3.0/2.0 Host, USB Type-C, HDMI, Trigger Output, Grounding | USB 2.0 Host & Device, Ethernet/LAN, Wifi | USB 2.0 Host & Device, Ethernet/LAN, Wifi |
| Safety | CAT I 300 Veff (1-MΩ-Input) | CAT I 300 Veff (1-MΩ-Input) | CAT I 300 Veff (1-MΩ-Input) |
| Triggermodes | Edge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge and Video. | Edge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge and Video. | Edge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge and Video. |
| Bus-Decoding | UART, I²C, SPI, CAN, LIN | 1553B, 429 (Included) | UART, I²C, SPI, CAN, LIN | 1553B, 429 (Included) | UART, I²C, SPI, CAN, LIN | 1553B, 429 (Included) |
| Battery | 7500 mAh Lithium-Ionen-Akku | 7500 mAh Lithium-Ionen-Akku | 7500 mAh Lithium-Ionen-Akku |
