Description

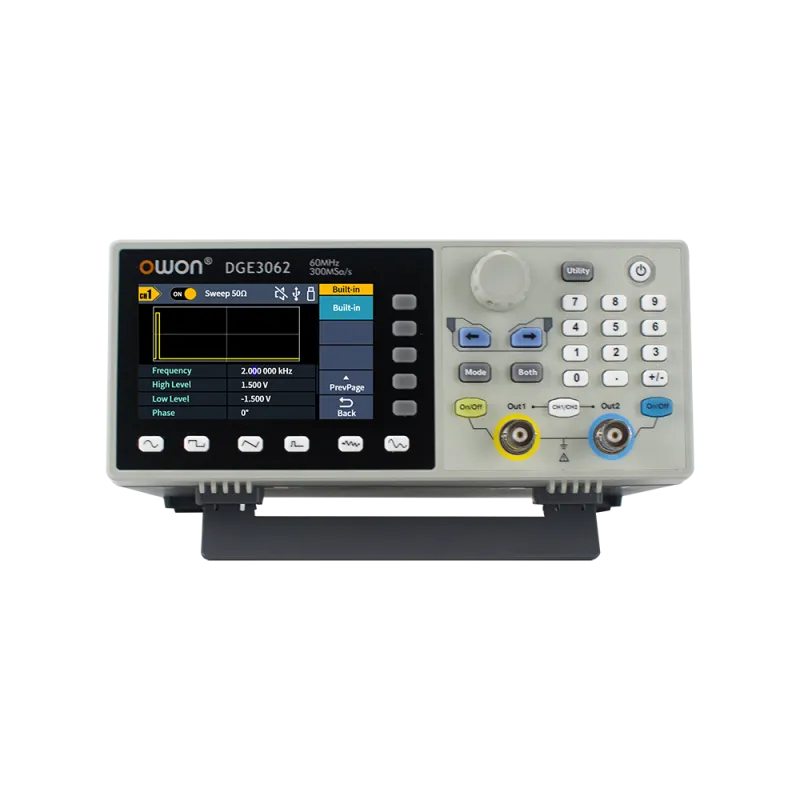

The OWON DGE3062 is a 60 MHz function generator in the entry-level class and offers the same range of functions at software level as the DGE2000. The DGE3000 series also has additional inputs and outputs. These include a trigger and modulation signal input as well as the option of synchronisation using a reference clock and frequency counter.
The devices in the DGE3000 series can output 160 different integrated waveforms and have 5 basic waveforms (sine, square, pulse, ramp, noise). In addition, the device offers extensive modulation functions including AM, FM, FSK, sweep, burst, etc. As a special feature in this segment, the device has SPCI and LabVIEW scripts for automation and also free PC software for remote control of the function generator.
Features
- Extended inputs and outputs
Frequency counter input, trigger input and output - Frequency output:
60 MHz - Sampling rate:
300MSa/s - 14 bit vertical resolution:
max. 100K Arb waveform length - Comprehensive waveform output:
5 basic waveforms and 160 integrated arbitrary waveforms - Extensive modulation functions:
AM, FM, PM, FSK, sweep, burst etc. - Control and automation:
SCPI and LabVIEW are supported
PC software available - Display:
3.6-inch TFT LCD
Functions
Frequency counter
High-precision frequency counter, supported range 100 MHz - 200 MHz
Dual channel
Two-channel operation with equivalent power possible
Burst function
Pulse generation with burst function
Memory functions
Storage of presets and generated waveforms
Arbitrary waveforms
Offers more than 160 types of integrated arbitrary waveforms
Modulation modes
Supports AM, FM, PM and FSK modulation modes
Sweep function
Technical Data
| Specification |  DGE3032 | DGE3062 |
|---|---|---|
| Channels | 2 | 2 |
| Frequency output | 30 MHz | 60 MHz |
| Sampling rate | 125 MSa/s | 300 MSa/s |
| Vertical resolution | 14 Bit | 14 Bit |
| Standard waveforms | Sine, Square, Pulse, Ramp, Noise | Sine, Square, Pulse, Ramp, Noise |
| Arbitrary waveforms (built-in) | 160 bits (including exp. rise/fall, sin(x)/x, step) | 160 units (including exp. rise/fall, sin(x)/x, step) |
| Frequency range (sine) | 1 µHz - 30 MHz | 1 µHz - 60 MHz |
| Frequency range (square) | 1 µHz - 15 MHz | 1 µHz - 20 MHz |
| Frequency range (Pulse) | 1 µHz - 15 MHz | 1 µHz - 20 MHz |
| Frequency range (ramp) | 1 µHz - 1 MHz | 1 µHz - 2 MHz |
| Noise (-3 dB, typical) | 20 MHz | 20 MHz |
| Arbitrary waves (frequency) | 1 µHz - 10 MHz | 1 µHz - 10 MHz |
| Max. Arbitrary wavelength | 100 000 points | 100 000 points |
| Amplitude at 50 Ω | 1 mVpp - 10 Vpp (≤ 10 Hz) / 1 mVpp - 5 Vpp (≤ 60 MHz) | 1 mVpp - 10 Vpp (≤ 10 Hz) / 1 mVpp - 5 Vpp (≤ 60 MHz) |
| DC offset range | ±(10 Vpk - amplitude Vpp/2) (high impedance) / ±(5 Vpk - amplitude Vpp/2) (50 Ω) | ±(10 Vpk - amplitude Vpp/2) (high-impedance) / ±(5 Vpk - amplitude Vpp/2) (50 Ω) |
| DC offset resolution | 1 mV or 4 digits | 1 mV or 4 digits |
| DC offset accuracy | ±(1 % of the value + 1 mV + amplitude Vpp × 0.5 %) | ±(1 % of the value + 1 mV + amplitude Vpp × 0.5 %) |
| Modulation types | AM, FM, PM, FSK, sweep, burst | AM, FM, PM, FSK, sweep, burst |
| Display | 3.6″ LCD (480 × 272) | 3.6″ LCD (480 × 272) |
| Interfaces | USB Host, USB Device | USB Host, USB Device |
| Dimensions (W × H × D) | 200 × 92 × 157 mm | 200 × 92 × 157 mm |
| Weight | approx. 0.8 kg | approx. 0.8 kg |
| Model |  DGE2000 | DGE3000 Series |
|---|---|---|
| Bandwidth | 35 / 70 MHz | 30 / 60 MHz |
| Frequency resolution | 1 μHz with 7 digits | 6 digits |
| Length of the waveform | 8 kpts | 100 kpts |
| Frequency counter | Not available | 100 mHz - 200 MHz |
