The XDM1241 has a battery and can also be used as a mobile device with 4 1/2 digits and 65 measurements per second.
€90.00*
Content: 1
Volume discounts on request!
- 3-year guarantee
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Free shipping
No longer available
Further information
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Product number: XDM1241
Description

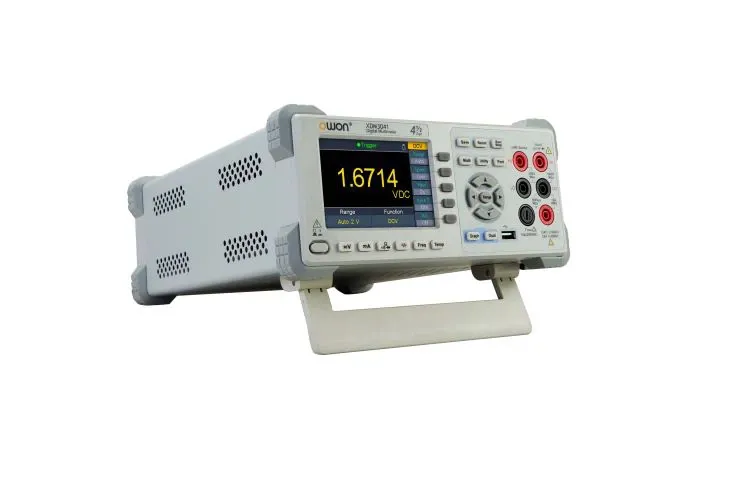

The OWON XDM Capacitance Bench Multimeter (4½ digits) combines high precision and reliable capacitance measurement with typical bench multimeter functions. It offers true RMS for accurate measurement of AC voltage and AC current, even with distorted signals. With up to 65 readings per second, rapid changes can be recognised.
The clear 3.7-inch display (approx. 480×320 pixels) enables the display in trend or chart mode and with two lines simultaneously. Data logging is possible via the internal memory for up to 1000 measuring points with a freely selectable interval. remote control via SCPI command is possible via USB or RS-232, ideal for automation, test benches or laboratory software communication.
Features
- Integrated battery
- Capacitance measurement in the range from a few nanofarads to high micro-/milli-farads
- 4½ digits, 55 000 counts
- True-RMS AC voltage & current, automatic range selection
- Trend mode, chart display, MIN/MAX/average value calculations
- Internal data logger (up to 1000 data points, setting interval 15 ms to 9999 s)
- Interfaces: USB, RS-232, SCPI remote control
- Extensive measurement functions: Resistance, voltage, current, frequency, continuity, diode
Technical Data
| Model |  XDM1041 | XDM1241 |
| Display digits / Counts | 4½ digits, 55,000 counts | 4½ digits, 55,000 counts |
| Reading speed | up to 65 values/second | up to 65 values/second |
| True RMS AC voltage/current | Yes | Yes |
| Display | 3.5-inch / 480 × 320 LCD/TFT | 3.5-inch / 480 × 320 LCD/TFT |
| Measuring ranges DC voltage | 0.001 mV - 1000 V | 0.001 mV - 1000 V |
| Current range | 0.01 µA - 10 A | 0.01 µA - 10 A |
| Resistance | up to approx. 50 MΩ | up to approx. 50 MΩ |
| Frequency range | 0.001 Hz - 60 MHz | 0.001 Hz - 60 MHz |
| Capacitance | 1 nF - 50 mF | 1 nF - 50 mF |
| Data storage / data log | yes, 1000 measured values, adjustable interval | yes, 1000 measured values, adjustable interval |
| Interfaces / remote control | USB, SCPI, (RS-232 depending on version) | USB, SCPI, (RS-232 depending on version) |
| Power supply | Mains operation / AC power supply | Lithium battery (rechargeable) and USB/DC jack spare charge |
| Dimensions & weight | approx. 235 × 88 × 65 mm, ~450 g | comparable, may be slightly heavier due to battery |
| Price / target group | inexpensive laboratory use with mains connection | more mobility, also suitable for working without mains power |
