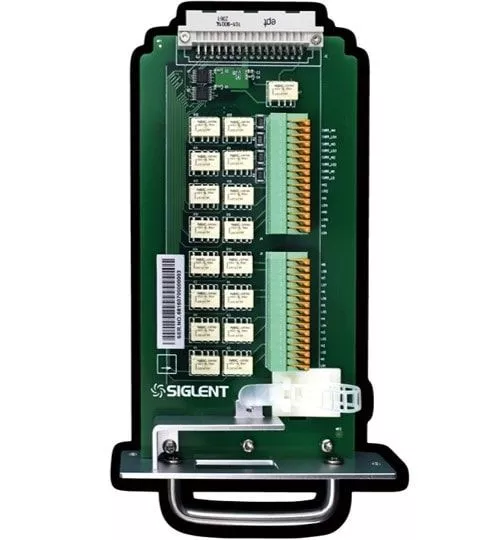

The SC1016 multiplexer has 12 general purpose channels and 4 power channels.
Description
The SC1016 is a multiplexer that adds multipoint measurement capabilities to the SDM3000-SC series digital multimeters. The scanner has 12 multipurpose and 4 current channels.
This product is only compatible with Siglent's SDM3055-SC and SDM3065X-SC models and is not an upgrade kit.
Supports the following measurement functions
- DCV
- ACV
- DCI
- ACI
- 2WR
- 4WR
- CAP
- FREQ
- DIODE
- CONT
- TEMP
Technical Data
Specifications | CP4050 |
---|---|
Bandwidth | 1MHz |
Maximum Continuous Current | 50 Arms |
Peak Current | 140A |
Switching Ratio | 500mV/A; 5mV/A |
DC Measurement Accuracy | 500mV/A (20mA-14 Apk) ±3%±20mA; 50mV/A (200mA-100ApK) ±4% ±4% 200mA; 50mV/A (100A-140ApK)±15% |
Power | 9V battery |
Weight | 400 grams |
