€2,259.00*
- 3 Years Warranty
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Delivery time 1 to 3 days
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Description

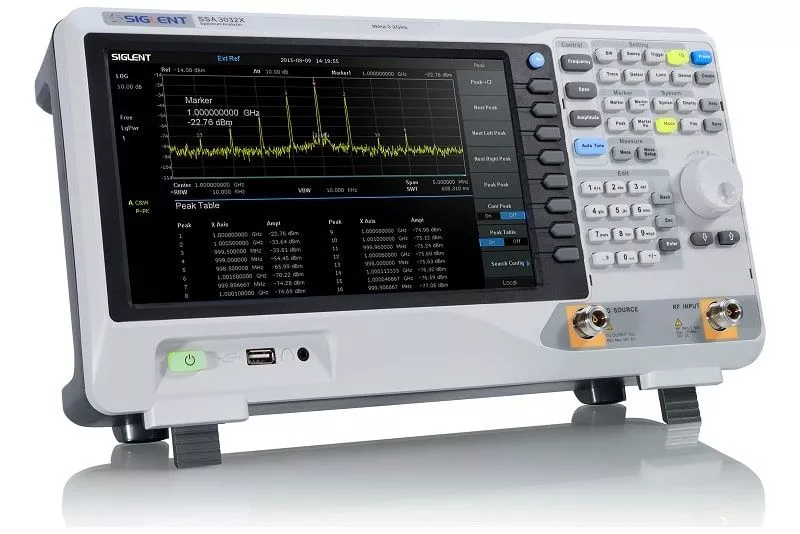

The SSA3032X spectrum analyzer from SIGLENT offers a bandwidth of up to 3.2 GHz. It guarantees reliable measurements, precision and many other RF measurement functions.
Features
- Fully digital IF technology
- Frequency range from 9 kHz 3.2 GHz
- -161 dBm/Hz Indicated average noise level (typ.)
- -98 dBc/Hz at 10 kHz offset phase noise (1 GHz, typ.)
- Overall amplitude accuracy < 0.7 dB
- 1 Hz Minimum resolution bandwidth (RBW)
- Tracking generator (TG) is currently included free of charge
- Standard preamplifier
- Standard tracking generator kit
- Reflection/VSWR measurement kit (optional)
- Extended measurement kit (optional)
- EMI Pre-Compliance Measurement Kit (optional)
- 10.1-inch WVGA display (1024 x 600).
Hardware details
Siglent's SSA3000X family of spectrum analyzers offers a frequency range from 9 KHz to 2.1/3.2 GHz. With their light weight, small size and user-friendly user interface, the SSA3000s offer a large, bright, easy-to-read display, powerful and reliable automatic measurements and many impressive features. Applications include research and development, education, production, maintenance and pre-compliance testing.
Product highlights
On-screen VSWR/return loss measurements with the reflectance measurement option (REFL-SSA3000X)
Available with or without directional coupler
Zero-span and demodulation capabilities
AM / FM demodulation with audio output jack.
Phase noise
Phase noise -98 dBc/Hz at 1 GHz at 10 kHz offset
Noise level
The average displayed noise level is -151 dBm (RBW=10 Hz)
1 Hz Minimum resolution bandwidth (RBW)
RBW: 1 Hz - 1 MHz in 1-3-10 sequence.
(Minimum RBW depends on frequency span).
Advanced measurement kit (AMK-SSA3000X) includes ACPR measurements on screen
Channel power, adjacent channel power ratio, time domain power, occupied bandwidth, third-order intercept, spectrum monitor (waterfall).
Supports four independent tracks and cursors
Four selectable color-coded tracks can be used for different functions (e.g. Max Hold, Min Hold, Clear-Write, Math, Average, etc.).
Four movable markers.
EMI filter and quasi-peak detector according to CISPR 16 (EMI-SSA3000X)
Comes with EMI reporting software. Speeds up measurement time, creates test reports
Technical Data
| Model comparison |  SSA3021X |  SSA3032X |  SSA3015X Plus |  SSA3021X Plus |  SSA3032X Plus |  SSA3075X Plus |
|---|---|---|---|---|---|---|
| Max. Bandwidth | 2.1 GHz | 3.2 GHz | 1.5 GHz | 2.1 GHz | 3.2 GHz | 7.5 GHz |
| Preamplifier | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Tracking generator | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| EMI filter (option) | 200 Hz, 9 kHz, 120 kHz | 200 Hz, 9 kHz, 120 kHz | 200 Hz, 9 kHz, 120 kHz, 1MHz | 200 Hz, 9 kHz, 120 kHz, 1MHz | 200 Hz, 9 kHz, 120 kHz, 1MHz | 200 Hz, 9 kHz, 120 kHz, 1MHz |
| AMK CHP/ACPR/TOI/OBW/Monitor | Option | Option | Option | Option | Option | Option |
| AMA AM/FM | n/a | n/a | Option | Option | Option | Option |
| DMA ASK/FSK/PSK/QAM | n/a | n/a | Option | Option | Option | Option |
| Touch Screen | n/a | n/a | ✓ | ✓ | ✓ | ✓ |
| Resolution bandwidth (RBW) | 1 Hz ~ 1 MHz, in 1-3-10 Sequence | 1 Hz ~ 1 MHz, in 1-3-10 Sequence | 1 Hz ~ 1 MHz, in 1-3-10 Sequence | 1 Hz ~ 1 MHz, in 1-3-10 Sequence | 1 Hz ~ 1 MHz, in 1-3-10 Sequence | 1 Hz ~ 1 MHz, in 1-3-10 Sequence |
| Display average noise level (DANL), min. | -161 dBm/Hz, Normalize to 1 Hz (typ.) | -161 dBm/Hz, Normalize to 1 Hz (typ.) | -156 dBm/Hz | -161 dBm/Hz | -161 dBm/Hz | -165 dBm/Hz |
