The SRF5030T near-field probe set for the SSA3000X and SVA1000X Siglent series.
€499.00*
Volume discounts on request!
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Free shipping
Delivery time: 4 to 5 weeks
Further information
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Product number: SRF5030T
Manufacturer: Siglent
Description
Siglent's SRF5030T near-field probes have an operating frequency range of 300 kHz to 3 GHz. The probes are electrically isolated and have a thin profile for easier access to tight spots. Perfect for identifying sources of interference and other EMI events.

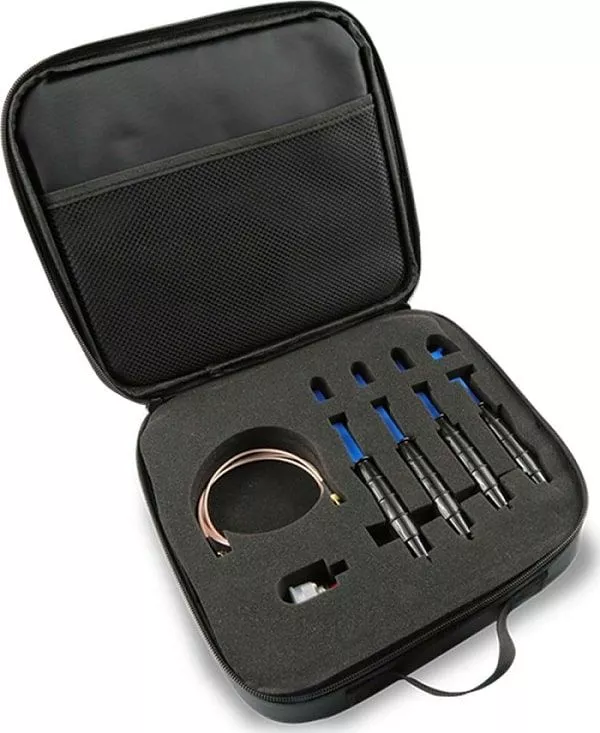

The kit contains:
- Three magnetic near-field probes (20, 10 and 5 mm resolution)
- One electric field point probe (5 mm resolution)
- N-to-SMA adapter and cable
- Carrying case
Technical Data
| Specifications |  CP4050 |
|---|---|
| Bandwidth | 1MHz |
| Maximum Continuous Current | 50 Arms |
| Peak Current | 140A |
| Switching Ratio | 500mV/A; 5mV/A |
| DC Measurement Accuracy | 500mV/A (20mA-14 Apk) ±3%±20mA; 50mV/A (200mA-100ApK) ±4% ±4% 200mA; 50mV/A (100A-140ApK)±15% |
| Power | 9V battery |
| Weight | 400 grams |
