€6,509.00*
- 3 Years Warranty
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Delivery time: 4 to 5 weeks
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Description

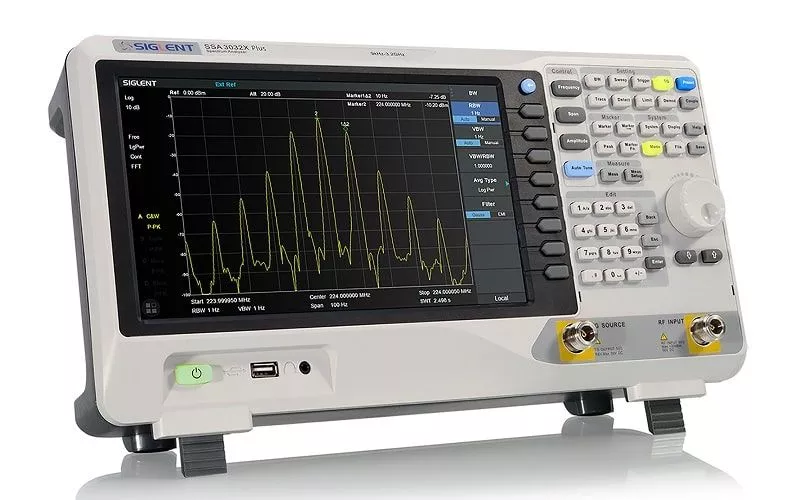

The SSA3075X Plus spectrum analyzer from SIGLENT offers a bandwidth of up to 7.5 GHz and provides reliable and automatic measurement.
Features
- Frequency range of the spectrum analyzer from 9 kHz to 7.5 GHz
- -165 dBm/Hz Indicated average noise level (typ.)
- -98 dBc/Hz.@10 kHz Offset phase noise (1 GHz, typ.)
- Level measurement uncertainty < 0.7 dB (typ.)
- 1 Hz Minimum resolution bandwidth (RBW)
- Preamplifier (Std.)
- Tracking generator (free of charge incl.)
- Analog and digital signal modulation analysis mode (opt.)
- Reflection measurement kit (Opt.)
- EMI filter and quasi-peak detector kit (optional)
- Advanced measurement kit (optional)
- 10.1-inch multi-touch screen, mouse and keyboard supported
- Web browser remote control on PC and mobile devices and file operation
Hardware details
The SIGLENT SSA3000X Plus series spectrum analyzers are powerful and flexible tools for RF signal and network analysis. With a frequency range up to 7.5 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation: spectrum analyzer as the base, optional functions include RF power measurement, vector signal modulation analysis, reflection measurement and EMI test. Applications include broadcast monitoring/evaluation, site survey, S-parameter measurement, analog/digital modulation analysis, EMI pre-compliance test, R&D, education, production and maintenance.
Product highlights
1 Hz Minimum Resolution Bandwith
The minimum resolution bandwidth (RBW) of 1 Hz makes it possible to examine even signals with minimal frequency differences.
Reflection measurement
The SSA3000X Plus spectrum analyzer provides VSWR and return loss measurement with external reflection bridge
Excellent phase noise behavior
Due to the particularly low phase noise of < -98 dBc / Hz (fc = 1 GHz, @10 kHz), most synthesizers and signal generators can be analyzed.
Large multi-touch screen
A high-resolution 10.1-inch screen with multi-touch ensures easy and efficient operation. Even the use of a mouse and keyboard is possible via USB.
Particularly low inherent noise
The SSA3000X Plus Series offers a low-noise, high-performance RF front-end with a low Displayed Average Noise Level (DANL) of only -161 dBm/Hz and a standard integrated preamplifier. The high sensitivity enables the analysis of weak signals.
EMI Measurement Mode (EMI Option)
Comprehensive EMC compliance measurements with CISPR 16-1-1 EMI filter and built-in CISPR band A/B/C/D presets. Supports peak, quasi-peak and EMI average detectors and multiple preset standards for convenient comparison of emissions to regulatory limits. Bar graph displays and continuous monitoring of the signal allow quick detection of maximum amplitude.
Modulation analysis mode (AMA/DMA option)
Vector signal modulation analysis for analog (AM/FM) and digital (ASK/FSK/PSK/MSK/QAM) signals. Supports error vector magnitude (EVM) evaluation as well as computer data recording and playback of recorded data together with a Siglent SSG5000X RF signal generator.
Technical Data
| Model comparison |  SSA3021X |  SSA3032X |  SSA3015X Plus |  SSA3021X Plus |  SSA3032X Plus |  SSA3075X Plus |
|---|---|---|---|---|---|---|
| Max. Bandwidth | 2.1 GHz | 3.2 GHz | 1.5 GHz | 2.1 GHz | 3.2 GHz | 7.5 GHz |
| Preamplifier | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Tracking generator | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| EMI filter (option) | 200 Hz, 9 kHz, 120 kHz | 200 Hz, 9 kHz, 120 kHz | 200 Hz, 9 kHz, 120 kHz, 1MHz | 200 Hz, 9 kHz, 120 kHz, 1MHz | 200 Hz, 9 kHz, 120 kHz, 1MHz | 200 Hz, 9 kHz, 120 kHz, 1MHz |
| AMK CHP/ACPR/TOI/OBW/Monitor | Option | Option | Option | Option | Option | Option |
| AMA AM/FM | n/a | n/a | Option | Option | Option | Option |
| DMA ASK/FSK/PSK/QAM | n/a | n/a | Option | Option | Option | Option |
| Touch Screen | n/a | n/a | ✓ | ✓ | ✓ | ✓ |
| Resolution bandwidth (RBW) | 1 Hz ~ 1 MHz, in 1-3-10 Sequence | 1 Hz ~ 1 MHz, in 1-3-10 Sequence | 1 Hz ~ 1 MHz, in 1-3-10 Sequence | 1 Hz ~ 1 MHz, in 1-3-10 Sequence | 1 Hz ~ 1 MHz, in 1-3-10 Sequence | 1 Hz ~ 1 MHz, in 1-3-10 Sequence |
| Display average noise level (DANL), min. | -161 dBm/Hz, Normalize to 1 Hz (typ.) | -161 dBm/Hz, Normalize to 1 Hz (typ.) | -156 dBm/Hz | -161 dBm/Hz | -161 dBm/Hz | -165 dBm/Hz |
