Siglent SSA3015X Plus Spectrum Analyzer

The SSA3015X Plus is a powerful spectrum analyzer for RF signal and network analysis.

€1,159.00*

  • 3 Years Warranty
  • 2.5% advance payment discount

Free shipping

Delivery time: 1 week

Further information
Model
Request a quote
Paypal-icon
Mastercard-icon
visa-icon
klarna-icon
Sepa-lastschrift-icon
invoice-icon
Product number: SSA3015X Plus
Manufacturer: Siglent
  • When you purchase a spectrum analyzer from Siglent together with the SRF5030T Near-Field Probe Kit, you will receive the EMI upgrade license free of charge.

Description

The SSA3015X Plus spectrum analyzer from SIGLENT offers a bandwidth of up to 1.5 GHz and provides reliable and automatic measurement.

Features

  • Frequency range of the spectrum analyzer from 9 kHz to 1.5 GHz
  • -156 dBm/Hz Indicated average noise level (typ.)
  • -98 dBc/Hz.@10 kHz Offset phase noise (1 GHz, typ.)
  • Level measurement uncertainty < 0.7 dB (typ.)
  • 1 Hz Minimum resolution bandwidth (RBW)
  • Preamplifier (Std.)
  • Tracking generator (free of charge incl.)
  • Analog and digital signal modulation analysis mode (opt.)
  • Reflection measurement kit (Opt.)
  • EMI filter and quasi-peak detector kit (optional)
  • Advanced measurement kit (optional)
  • 10.1-inch multi-touch screen, mouse and keyboard supported
  • Web browser remote control on PC and mobile devices and file operation

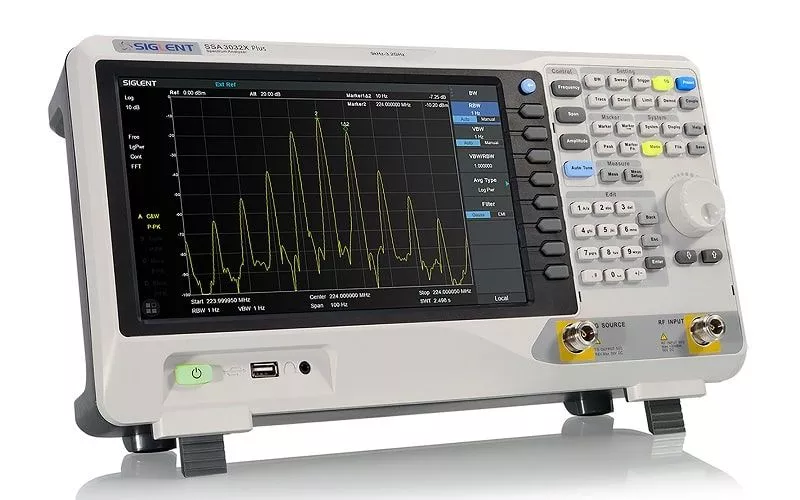

SSA3015X Plus - Front

Hardware details

The SIGLENT SSA3000X Plus series spectrum analyzers are powerful and flexible tools for RF signal and network analysis. With a frequency range up to 7.5 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation: spectrum analyzer as the base, optional functions include RF power measurement, vector signal modulation analysis, reflection measurement and EMI test. Applications include broadcast monitoring/evaluation, site survey, S-parameter measurement, analog/digital modulation analysis, EMI pre-compliance test, R&D, education, production and maintenance.

Product highlights

Productvideo

SSA3000X Plus - Introduction

Technical Data

Model comparisonSSA3021X - SmallSSA3021XSSA3032X - SmallSSA3032XSSA3015X Plus - Small
SSA3015X Plus
SSA3021X Plus Small
SSA3021X Plus
SSA3032X Plus - Small
SSA3032X Plus
SSA3075X Plus - Small
SSA3075X Plus
Max. Bandwidth2.1 GHz3.2 GHz1.5 GHz2.1 GHz3.2 GHz7.5 GHz
Preamplifier
Tracking generator
EMI filter (option)200 Hz, 9 kHz, 120 kHz200 Hz, 9 kHz, 120 kHz200 Hz, 9 kHz, 120 kHz, 1MHz200 Hz, 9 kHz, 120 kHz, 1MHz200 Hz, 9 kHz, 120 kHz, 1MHz200 Hz, 9 kHz, 120 kHz, 1MHz
AMK CHP/ACPR/TOI/OBW/MonitorOptionOptionOptionOptionOptionOption
AMA AM/FMn/an/aOptionOptionOptionOption
DMA ASK/FSK/PSK/QAMn/an/aOptionOptionOptionOption
Touch Screenn/an/a
Resolution bandwidth (RBW)1 Hz ~ 1 MHz, in 1-3-10 Sequence1 Hz ~ 1 MHz, in 1-3-10 Sequence1 Hz ~ 1 MHz, in 1-3-10 Sequence1 Hz ~ 1 MHz, in 1-3-10 Sequence1 Hz ~ 1 MHz, in 1-3-10 Sequence1 Hz ~ 1 MHz, in 1-3-10 Sequence
Display average noise level (DANL), min.-161 dBm/Hz, Normalize to 1 Hz (typ.)-161 dBm/Hz, Normalize to 1 Hz (typ.)-156 dBm/Hz-161 dBm/Hz-161 dBm/Hz-165 dBm/Hz

Software

SSA3000X Plus-TG
SSA3000X PLUS-TG Tracking Generator
SSA3000X PLUS-TG
Siglent SSA3000X PLUS-TG Activation License for Tracking Generator Kit

€169.00*
SSA3000X Plus-EMI
SSA3000X PLUS-EMI Measurement Kit
SSA3000X PLUS-EMI
Siglent SSA3000X PLUS-EMI Activation License for EMI Measurement Kit

€425.00*
SSA3000X Plus-AMK
SSA3000X PLUS-AMK Advanced Measurement Kit
SSA3000X PLUS-AMK
Siglent SSA3000X PLUS-AMK Activation License for the Advanced Measurement Kit

€395.00*
SSA3000X Plus-DMA
SSA3000X PLUS-DMA Digital Modulation Analysis Function
SSA3000X PLUS-DMA
Siglent SSA3000X PLUS-DMA Activation License for the Digital Modulation Analysis Function

€469.00*
SSA3000X Plus-AMA
SSA3000X PLUS-AMA Analog Modulation Analysis Function
SSA3000X PLUS-AMA
Siglent SSA3000X PLUS-AMA Activation License for the Analog Modulation Analysis Function

€286.00*
SSA3000-Refl
SSA3000-Refl Reflect Measurement Kit
SSA3000-Refl
Siglent SSG3000-Refl Activation License for Reflection/VSWR Option

€369.00*

Accessories

SSA-RMK
SSA-RMK Rackmount-Kit
SSA-RMK
The SSA-RMK rackmount kit is compatible with Siglent spectrum analyzers.

€135.00*
RB3X25
RB3X25 Return Loss Bridge
RB3X25
Siglent RB3X25 reflective measurement bridge with a bandwidth of 2.5 GHz.

€419.00*
RBSSA3X25
RBSSA3X25 Reflect Measurement Kit + License Option
RBSSA3X25
Siglent RBSSA3X25 Bundle: BR3X25 Reflection Measurement Bridge + SSA3000-Refl Activation License

€559.00*
V26-N35MN35F-25IN
V26-N35MN35F-25IN Cable
V26-N35MN35F-25IN
The V26-N35MN35F-25IN cable from Siglent features 26.5 GHz

€1,120.00*
V26-N35FA35F-25IN
V26-N35FA35F-25IN Cable
V26-N35FA35F-25IN
The V26-N35FA35F-25IN cable from Siglent features 26.5 GHz

€1,120.00*
N-N 18L
N-N-18L Kabel
N-N-18L
Das N-N-18L Kabel von Siglent verfügt über 18 GHz

€219.00*
