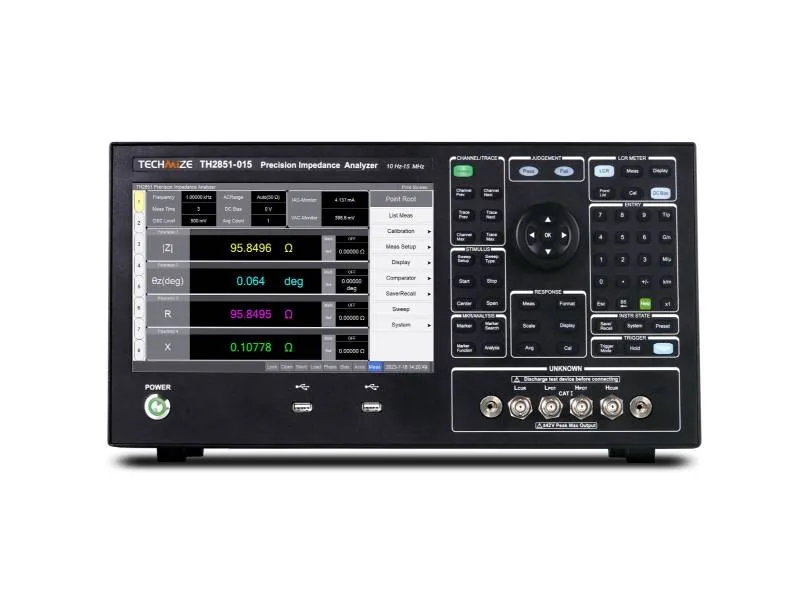

Precision impedance analyser 10 Hz-15 MHz with DC/AC bias and auto-balance for exact component measurements.
€24,999.00*
Volume discounts on request!
Delivery time: 1-2 weeks
Further information
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Product number: TH2851-015
Description
The TH2851 series is a precision impedance analyser with test frequencies from 10 Hz to 130 MHz, a basic accuracy of 0.08 %, four-pole auto-balance bridge technology and AC signals from 5 mV-2 V and DC bias up to ±40 V/±100 mA.It offers three measurement modes (point, list and graphic scan), a 1601-point multi-parameter list function and four-channel curve display with 16 split-screen layouts.
With up to 5 ms test speed, high stability and SCPI compatibility (e.g. Keysight E4990A/E4980A, HP4284A), a wide range of passive and semi-conductive components can be precisely characterised.
Powerful sorting functions and graphical analysis tools support automated component testing and quality control in the laboratory and production.
Features
- Test frequency: 10 Hz-15 MHz
- High precision: Automatic balance bridge technology, four-pole pair test configuration
- High stability and consistency
- High speed: Highest test speed of up to 5 ms
- High resolution: 10.1-inch capacitive touchscreen, resolution 1280 x 800
- Three test methods: point test, list scan and graph scan
- 1601-point multi-parameter list scan function
- Four-parameter measurement
- 4-channel graph scan function: each channel can display 4 curves, 16 different split-screen display modes for channels and curves
- Display modes for channels and curves
- Powerful sorting: 10-level sorting in LCR mode
- Graphic scan mode: Each curve is sorted individually
- High compatibility: Supports SCPI command set, compatible with KEYSIGHT E4990A, E4980A, E4980AL, HP4284A
Applications
- Passive components
Estimation of impedance parameters and performance analysis of capacitors, inductors, magnetic cores, resistors, piezoelectric components, transformers, chip components and network components - Semiconductor components
Testing and analysing parasitic parameters of integrated LED driver circuits, C-VDC properties of varactors
Analysing parasitic parameters of transistors or integrated circuits - Other components
Impedance evaluation of printed circuit boards, relays, switches, cables, batteries - Dielectric materials
Assessment of the dielectric constant and loss angle of plastics, ceramics and other materials - Magnetic materials
Assessment of the magnetic permeability and loss angle of ferrites, amorphous bodies and other magnetic materials - Semiconductor materials
Dielectric constant, electrical conductivity and C-V properties of semiconductor materials - Liquid crystal cells
Dielectric constant, elasticity constant and C-V properties of liquid crystal cells
Technical Data
| Model |  TH2851-015 | TH2851-030 | TH2851-050 | TH2851-080 | TH2851-130 |
|---|---|---|---|---|---|
| Test Frequency | 10Hz-15MHz | 10Hz-30MHz | 10Hz-50MHz | 10Hz-80MHz | 10Hz-130MHz |
| Basic Accuracy | 0.08% | 0.08% | 0.08% | 0.08% | 0.08% |
| AC Signal Voltage | 5 mVrms to 2 Vrms | 5 mVrms to 2 Vrms | 5 mVrms to 2 Vrms | 5 mVrms to 2 Vrms | 5 mVrms to 2 Vrms |
| Current | 200 µArms to 20 mArms | 200 µArms to 20 mArms | 200 µArms to 20 mArms | 200 µArms to 20 mArms | 200 µArms to 20 mArms |
| DC Bias Voltage | 0 V to ± 40 V | 0 V to ± 40 V | 0 V to ± 40 V | 0 V to ± 40 V | 0 V to ± 40 V |
| Current | 0 mA to ± 100 mA | 0 mA to ± 100 mA | 0 mA to ± 100 mA | 0 mA to ± 100 mA | 0 mA to ± 100 mA |
