Extended hipot tester with 8 channels, AC 0.05-5 kV/DC 0.05-6 kV and insulation test for parallel multi-point tests and higher efficiency.
Volume discounts on request!
€1,769.00 Net
€2,105.11 incl. VAT
Shipping country
Customer Group
Währung
Delivery time: 1-2 weeks
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 2 year guarantee
Description

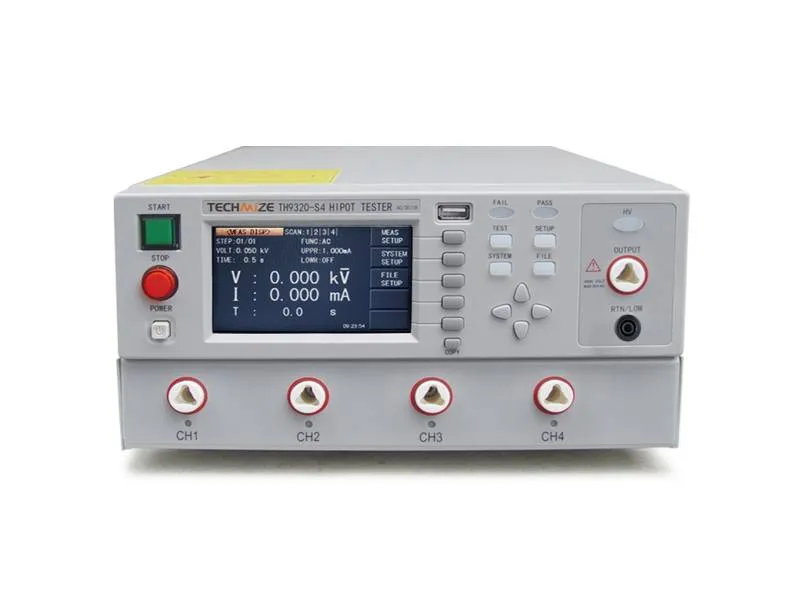

The TH9320-S series are modular hipot/safety testers with AC/DC withstand voltage and insulation test functionality in a compact, lightweight housing. Available as TH9320-S4 (4 channels) and TH9320-S8 (8 channels), they offer programmable test sequences for AC and DC withstand voltages as well as insulation testing, rapid discharge and ARC detection, suitable for automation test benches in production and laboratories.Features
- Dielectric strength AC/DC: AC 0.05-5.00 kV (±2% reading+5 digits), DC 0.05-6.00 kV (±2% reading+5 digits)
- Insulation test: test voltage 0.10-1.00 kV, resistance range 1 MΩ-9,999 MΩ with automatic discharge at the end of the test
- Multi-channel scan: Integrated interface for 4 channels (TH9320-S4) or 8 channels (TH9320-S8), programmable for parallel tests and fast multi-point tests
- Display & operation: 480×272 TFT LCD with dot-matrix display, numeric keypad and clear GUI
- Fast discharge & ARC detection: Automatic discharge after DC tests; ARC detection in several sensitivity levels (AC/DC)
- Sensitivity levels (AC/DC 1-9 level)
- Programmable test sequences: Up to 20 test steps per programme, 5 memory groups for sequence management
- Time control: Adjustable voltage rise time and test duration up to 999.9 s, waiting time for insulation test up to 999.9 s, time accuracy ±(1%+0.1 s)
- Interfaces: Standard HANDLER, RS232, USB Device/Host for PC communication and automation integration
- Safety functions: OVP/OCP/OTP/OPP, ground current detection, keypad lock, PASS/FAIL indicator with acoustic signal
- Complete accessory management: USB firmware upgrade, storage of test files on USB stick
- Compact design: 280 × 89 × 428 mm, approx. 10 kg, space-saving for laboratory and production environments
Applications
- Safety and hipot tests on household appliances, transformers, electronic components and printed circuit boards
- Insulation tests on materials and assemblies in research and quality assurance
- Automated test systems in production lines with multiple test channels, e.g. component testing with integrated scanner interface
- Development laboratories and test benches for HV and insulation tests, e.g. in automotive, medical technology and electronics production
Technical Data
| Model |  TH9320-S4 | TH9320-S8 |
|---|---|---|
| AC voltage range | 0.05-5.00 kV ±(2% reading+5 digits), 50/60 Hz | 0.05-5.00 kV ±(2% reading+5 digits), 50/60 Hz |
| DC voltage range | 0.05-6.00 kV ±(2% reading+5 digits) | 0.05-6.00 kV ±(2% reading+5 digits) |
| AC current measuring range | 0.000-20.00 mA ±(2% reading+2 digits) | 0.000-20.00 mA ±(2% Reading+2 Digits) |
| DC current measuring range | 0-10.00 mA ±(2% reading+2 digits) | 0-10.00 mA ±(2% reading+2 digits) |
| Insulation test voltage | 0.10-1.00 kV ±(2% reading+2 V) | 0.10-1.00 kV ±(2% reading+2 V) |
| Insulation test resistance | 1 MΩ-9,999 MΩ; 500-1000 V: 1 MΩ-1000 MΩ ±(5%+2 digits); 1000-9999 MΩ ±(10%+2 digits) | 1 MΩ-9.999 MΩ; 500-1000 V: 1 MΩ-1000 MΩ ±(5%+2 digits); 1000-9999 MΩ ±(10%+2 digits) |
| ARC Detection | AC/DC, 1-9 sensitivity levels | AC/DC, 1-9 sensitivity levels |
| Memory | 5 groups, up to 20 steps each | 5 groups, up to 20 steps each |
| Voltage increase/duration | 0.1-999.9 s (RISE); 0.2-999.9 s Test time; Waiting time IR 0.2-999.9 s | 0.1-999.9 s (RISE); 0.2-999.9 s Test time; Waiting time IR 0.2-999.9 s |
| Display | 480×272 TFT-LCD | 480×272 TFT-LCD |
| Interfaces | HANDLER, RS232, USBDRV (PC), USBHOST | HANDLER, RS232, USBDRV (PC), USBHOST |
| Scan channels | 4 channels | 8 channels |
| Dimension (W×H×D) | 280×89×428 mm | 280×89×428 mm |
| Weight | ≈10 kg | ≈10 kg |
| Time accuracy | ±(1%+0,1 s) | ±(1%+0,1 s) |
