Ground bond tester 1-45 A with four-pole measurement, 0-600 mΩ, long test duration and integrated automation interfaces for production lines.
€1,789.00*
Volume discounts on request!
- 2 year guarantee
Delivery time: 1-2 weeks
Further information
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Product number: TH9410A
Description

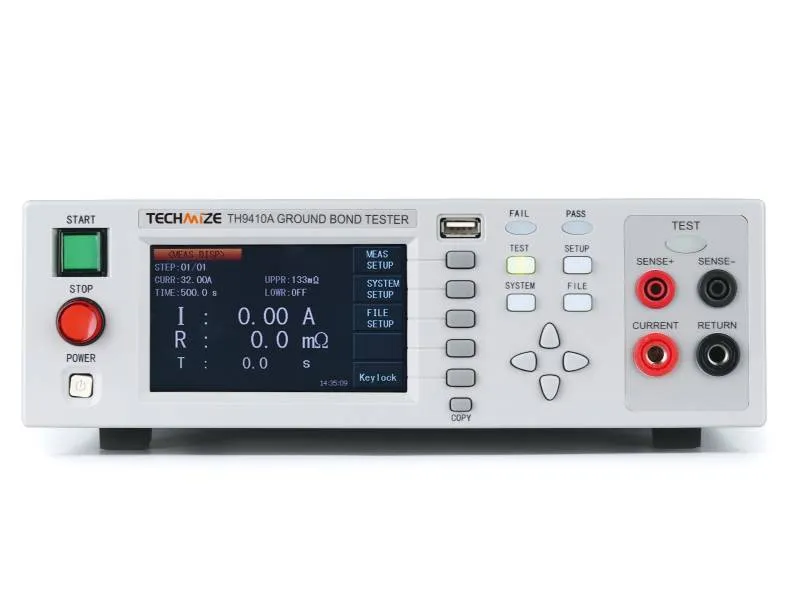

The TH9410A/TH9411A series are robust ground bond testers (earth resistance testers) with four-pole measurement, adjustable test currents and extensive safety functions, designed for automated test sequences in production and laboratories.Features
- Adjustable test current: TH9410A: 1.00-45.00 A; TH9411A: 1.00-32.00 A, in graduated ranges for precise earth resistance measurement
- Four-pole measurement: four-wire test mode for accurate resistance measurement up to 600 mΩ, independent of line or connection resistances
- High accuracy: resistance accuracy ±(2 % reading + 2 digit), current accuracy ±(2 % reading + 3 digit) and fine resolution (0.01 A for current; 0.1 mΩ-1 mΩ depending on range)
- Wide measuring range earth resistance: 0-600 mΩ, bias setting possible (0-100 mΩ) to compensate for reference values
- Long-term test: Test time adjustable 0.5-999.9 s or continuous (0=continuous), with high time resolution (0.1 s) and accuracy ±(0.1 % + 0.05 s)
- Safety: Keyboard Lock and Safety Lock prevent operating errors; automatic discharge at the end of the test
- Large display: 480×272 pixel TFT LCD for displaying measured values, status and menu navigation
- Programmable sequences: Storage of up to 20 test files with up to 20 test steps each for automated test sequences
- Interfaces: RS232, USB host/device, HANDLER for integration into automated test systems and remote control
- Stable power source: Internal power amplifier circuit for constant output current, independent of mains or load fluctuations
- Long test duration: Up to 999.9 s for continuous measurements, exceeds standard 60 s requirements
- Robust housing: Front and rear panel outputs for easy integration into standard chassis and test setups
Applications
- Automated test systems: Integration via HANDLER interface for series testing in production lines
- Household appliances: earthing testing of housings and power supply units in accordance with safety standards
- Transformers and motors: Measurement of the earthing or protective conductor resistance in windings and housings
- Electrical equipment: Testing of earthing connections in electrical switch cabinets, lights and heaters
- New-energy vehicles: earthing tests on battery housings and high-voltage systems as part of quality assurance
- Medical devices: Ensuring protective conductor integrity in accordance with regulatory requirements
- Laboratory & research: development tests and verification of earthing concepts for prototypes and systems
Technical Data
| Model |  TH9410A | TH9411A |
|---|---|---|
| Test current range | 1.00-45.00 A (1.00-5.00 A; 5.01-30.00 A; 30.01-45.00 A) | 1.00-32.00 A (1.00-5.00 A; 5.01-32.00 A) |
| Current accuracy | ±(2 % reading + 3 digit), resolution 0.01 A | ±(2 % reading + 3 digit), resolution 0.01 A |
| Voltage at the DUT (max.) | ≤ 8 V | ≤ 6 V |
| Earth resistance measurement | 0-600 mΩ, ±(2 % reading + 2 digit), resolution 0.1 mΩ / 1 mΩ | 0-600 mΩ, ±(2 % reading + 2 digit), resolution 0.1 mΩ / 1 mΩ |
| Bias range | 0-100 mΩ, resolution 0.1 mΩ, ±(2 % setting + 2 digit) | 0-100 mΩ, resolution 0.1 mΩ, ±(2 % setting + 2 digit) |
| Test time | 0.5-999.9 s (0=continuous), resolution 0.1 s, ±(0.1 % + 0.05 s) | 0.5-999.9 s (0=continuous), resolution 0.1 s, ±(0.1 % + 0.05 s) |
| Display | 480×272 pixel TFT-LCD | 480×272 pixel TFT-LCD |
| Programme memory | 20 files, up to 20 steps each | 20 files, up to 20 steps each |
| Interfaces | RS232, USB host/device, HANDLER | RS232, USB host/device, HANDLER |
| Power consumption | ≤ 900 VA | ≤ 800 VA |
| Mains supply | 110/220 V AC ±10 %, 47.5-63 Hz | 110/220 V AC ±10 %, 47.5-63 Hz |
| Dimensions (W×H×D) | 280×88×428 mm | 280×88×428 mm |
| Weight | ≈ 14 kg | ≈ 14 kg |
