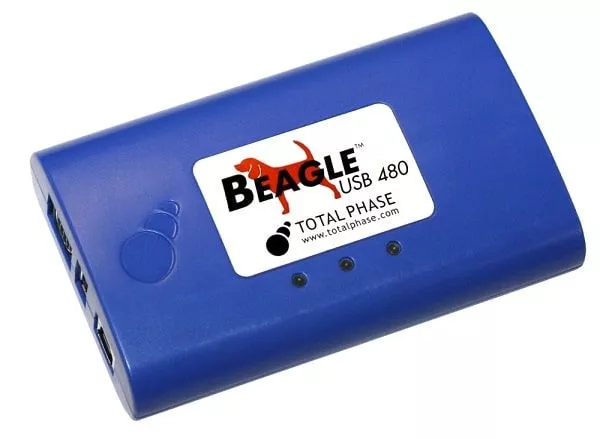

Total Phase Beagle USB 480 Protocol Analyzer

The Beagle USB 480 Protocol Analyzer is a non-intrusive high-speed USB 2.0 bus monitor.

€1,295.00*

Content: 1
Volume discounts on request!

In Stock, Delivery time: 1 - 3 days

Further information
Model
Request a quote
Paypal-icon
Mastercard-icon
visa-icon
klarna-icon
Sepa-lastschrift-icon
invoice-icon
Product number: TP320510
Manufacturer: Total Phase

Description

The Beagle USB 480 analyzer is capable of capturing and interactively displaying high-speed USB bus states and traffic in real-time with timing at 16.7 ns resolution and comes complete with software and royalty-free API. An onboard 64MB buffer captures sustained bursts of 480Mbps traffic without data loss.

Main properties

  • Non-intrusive monitoring of high-speed USB 2.0 (up to 480 Mbit/s)
  • Real-time USB class level decoding with Data Center Software
  • Two recording modes: real time and delayed download
  • High speed USB chip detection
  • Robust automatic speed detection
  • Hardware based packet suppression
  • Digital inputs and outputs for synchronization with external logic
  • Detect suspend/resume events and unexpected signals
  • Free software and API available
  • Fully compatible with Windows, Linux and Mac OS X

Real-time capture and delayed download capture

The Beagle USB 480 Protocol Analyzer has two different acquisition modes: real-time acquisition and delayed download acquisition. With real-time capture mode, developers can view any high-speed data over USB as soon as it happens. Since the data is streamed in real time, the collection size is limited only by the amount of RAM available on the analysis computer.

 Delayed download capture can be very useful in certain situations, e.g. B. when the Beagle USB 480 Protocol Analyzer is on the same high-speed bus as the target device. In these configurations, the Beagle analyzer can consume minimal USB bandwidth, not obscuring problems that only occur when the target is operating at full USB bandwidth.

Class-level USB decoding

Real-time USB class level decoding is available in Data Center software with the Beagle USB 480 Protocol Analyzer

High speed USB chip detection

The Beagle USB 480 Protocol Analyzer can capture and display the K and J chip patterns used in high speed negotiations and is able to reliably identify the correct speed of the monitored USB data.

Hardware-based mail suppression

A hardware input filter is available to suppress packets in order to reduce the amount of data collected. The filter can remove empty packet pairs like IN/NAK and PING/NAK pairs.

Digital I/O for synchronization

Four digital outputs are available for synchronizing the Beagle analyzer with oscilloscopes and logic analyzers. These digital outputs can match both patterns in the captured data and idle bus states.

Detect bus events and unexpected signals

The Beagle USB 480 Protocol Analyzer can intelligently detect suspend and resume events as well as unexpected signals on the bus.

Packet-level timing

Get packet-level timing with 16.67 ns resolution.

Cost efficient and time saving

The Beagle USB 480 Protocol Analyzer comes complete with the software.
The low cost allows companies to provide each developer with their own analyzer, making it quick and easy to identify and fix problems.
Saving time means more productivity, projects are completed on time and on budget.

The Beagle USB 480 Protocol Analyzer is regularly supplied with updates via USB.
New software functions are always available promptly and can be downloaded free of charge.

Available software

Productvideo

Beagle USB 480 - First Steps

Technical Data

Device specificationBeagle USB 480
Beagle USB 480
Operating SystemLinux and Windows
TensionUSB
USB speedHigh Speed USB 2.0
USB 2.0 distortion-free monitoring480Mbps
Real-time data acquisition and presentationYes
Built-in high-performance data buffer64 MB
Packet level time resolution16.67 ns
API languagesC/C++, C#, VB, .NET, Python
Feeless APIYes
Distortion-free USB full/low monitoring (1.5 Mbps/12 Mbps) Yes
Bit Level TimingYes
Contains the full functionality of the monitoring toolYes
Model comparisonBeagle USB 12
Beagle USB 12
Beagle USB 480
Beagle USB 480
Beagle USB 480 Standard
Beagle USB 480 Power - Standard
Beagle USB 480 Ultimate
Beagle USB 480 Power - Ultimate
Beagle USB 5000 Standard
Beagle USB 5000 v2 - Standard
Beagle USB 5000 Ultimate
Beagle USB 5000 v2 - Ultimate
USB Power Delivery Analyzer
USB Power Delivery
Article number TP320221TP320510TP323510TP323610TP322510TP322610TP350110
USB recording rate<12 Mbps<480 Mbps<480 Mbps<480 Mbps<5000 Mbps<5000 Mbps<1 Mbps
USB 3.0 and 2.0
Simulation and Monitoring
NoNoNoNoOptionNo
USB 2.0 Downlink
USB 3.0 DownlinkNoNoNoNoAvailableNo
Real-time data display & analysisNein
Real-time LTSSM trackingNoNoNoNoNo
Real time StatisticsNo
Memory Standard in the deviceHost PC64 MB +
Host PC
256 MB +
Host PC
256 MB +
Host PC
2 GB +
Host PC
4 GB +
Host PC
Host PC
Availability of external triggersNo

Input - Moniter
Output - Trigger

Input - Moniter
Output - Trigger

No
Advanced TriggerNoNoNo

USB 2.0 (Included)
USB 3.0 (Available)

No
 SyncNoBasicBasicBasic

Basic
Advanced (Option)

AvailableNo
 USB 3.0
Advance State Machine
NoNoNoNoAvailableNo
Current & Voltage MonitorNoNoNoNo
Cross-platform support
for Window, Linux,
Mac OS X

(Linux)
Software GUI
Free APINo

Accessories

USB A-B Kabel
33 cm USB A-B Kabel
Product Nr.: TP321110
The USB A-B, 31cm cable connects the USB device to the Beagle 12 protocol analyzer quickly and easily. These cables are designed for high-speed data transmission.

€15.00*
OTG Mini Stecker
OTG Mini Plug Cable Set
Product Nr.: TP320610
The USB OTG Mini-Plug Cable Assembly consists of two convenient cables that USB OTG developers can use

€32.00*
Kabel-mit-Prüfklemmen
Total Phase I/O cable with test clips
Product Nr.: TP320710
The digital I/O cable features clamp-on test probes to connect the digital I/O interface to external logic.

€109.00*

Related Products

Beagle USB 480 Power Standard - Protocol Analyzer
Product Nr.: TP323510
The Beagle USB 480 Power Analyzer allows logging of USB data packets and simultaneous monitoring of the VBUS.
...show more

Current/voltage monitor

  • Graphical display of VBUS current and voltage values in real time
    Interactive and bidirectional correlation of current/voltage values with USB data

High-performance hardware buffer

  • 256 MB capacity
  • Large ring buffer

Real-time decoding at USB class level

  • HID, audio, video, still image, printer
  • Mass Storage, Hub
  • Network, Mobile, CDC

Produkt abgekündigt

Beagle 480 USB Power Analyzer - UltimateBeagle 480 USB Power Analyzer - Ultimate – Anschlüsse
Beagle USB 480 Power Ultimate - Protocol Analyzer
Product Nr.: TP323610
USB 480 Power plus extended triggers - The Beagle USB 480 Power Protocol Analyzer – Ultimate Edition enables VBUS current and voltage measurement.
...show more

Current/Voltage Monitor

  • Graphing real-time VBUS current and voltage readings
  • Interactive and bi-directional correlation of current/voltage values with USB data

High performance hardware buffer

  • 256MB capacity
  • Large ring buffer

Real-time USB class level decoding

  • HID, Audio, Video, Still, Printer
  • Storage, Hub
  • Network, Mobile, CDC

€2,729.00*
Beagle USB 12
Beagle USB 12 - Protocol Analyzer
Product Nr.: TP320221
The Beagle USB 12 is a full/low-speed, distortion-free USB protocol analyzer.
...show more

Hardware requirement

  • Intel or AMD 2 GHz processor or faster
  • 1 gigabyte (GB) of physical RAM (32-bit) or 2 GB of RAM (64-bit)
  • 2 GB or more available disk space
  • High Speed ​​USB Port
  • VGA suitable for a screen resolution of 1024 x 768 or higher
  • Internet access is helpful



Supported operating systems (32-bit and 64-bit)

  • Windows: 7, 8, 8.1, 10
  • Linux: Red Hat, SuSE, Ubuntu, Fedora, Arch, CentOS, Debian
  • Mac OS X: 10.5-10.10

€550.00*
Beagle USB 5000 V2 - Standard zu Ultimate Upgrade
Beagle USB 5000 v2 Protocol Analyzer - Standard to Ultimate Upgrade
Product Nr.: TP323410
Upgrade of the Beagles 5000 USB 3.0 Standard v2 to USB 5000 v2 Ultimate Version.
...show more

Upgrading gives you the following options:

  • Concurrent capture option
  • SuperSpeed Downlink Upgrade
  • USB 3.0 Advanced State-Based Matching Option
  • Multi analyzer synchronization option
  • 4GB storage option

€2,890.00*
Beagle 5000 V2 USB 3.0 Standard Protocol Analyzer
Product Nr.: TP322510
The Beagle 5000 V2 USB 3.0 Standard Protocol Analyzer is an easy-to-use and versatile tool
...show more

Main features

  • Simultaneous monitoring of USB 3.0 and USB 2.0 without intervention
  • 4 GB on-board buffer with live data streaming to the analysis computer
  • Real-time USB class-level decoding with Data Center software
  • Precise timing down to 2 ns resolution
  • Match/action trigger and filter system
  • Hardware-based USB 2.0 and 3.0 packet suppression
  • USB 3.0 downlink enables longer recordings
  • Enable advanced synchronization to monitor applications that require multiple analyzers
  • Automatic support for data encryption, spread spectrum clocking, polarity inversion, and receiver detection
  • Multiple digital inputs and outputs for synchronization with external devices
  • Fully compatible with Windows, Linux, and Mac OS X with support for 32- and 64-bit systems

Hardware requirement

  • Intel or AMD processor operating at 2 gigahertz (GHz) or faster
  • 1 gigabyte (GB) physical RAM (32-bit) or 2 GB RAM (64-bit)
  • 2 GB or more of free hard disk space
  • Full-speed USB interface
  • Screen resolution of 1024x768 or better
  • Internet connection is helpful.

Product is discontinued

Beagle 5000V2 USB 3.0 Ultimate -Protocol AnalyzerBeagle 500 V2 USB - Front and Back
Beagle 5000 V2 USB 3.0 Ultimate Protocol Analyzer
Product Nr.: TP322610
USB bus monitor for real-time recording analysis of USB 3.0 & USB 2.0 data.
...show more

Key Features

  • Monitor USB 3.0 and USB 2.0 simultaneously without intervention
  • 4GB on-board buffer with live data streaming to analysis computer
  • Real-time USB class level decoding with Data Center Software
  • Precise timing up to a resolution of 2 ns
  • Match/Action trigger and filter system
  • Hardware-based USB 2.0 and 3.0 packet suppression
  • USB 3.0 downlink enables longer recordings
  • Enable advanced synchronization to monitor applications that require multiple analyzers
  • Automatic support for data encryption, spread spectrum clocking, polarity reversal and receiver detection
  • Multiple digital inputs and outputs for synchronization with external devices
  • Fully compatible with Windows, Linux and Mac OS X with support for 32 and 64-bit systems

Hardware requirement

  • Intel or AMD processor operating at 2 gigahertz (GHz) or faster
  • 1 gigabyte (GB) physical RAM (32-bit) or 2 GB RAM (64-bit)
  • 2 GB or more free disk space
  • Full-speed USB interface
  • Screen resolution of 1024x768 or better
  • Internet connection is helpfuldus.

€5,999.00*
USB Power Delivery Analyzer
Product Nr.: TP350110
The USB Power Delivery Analyzer is a monitoring solution for the USB cable power supply.
...show more

Key Features

  • Sniffing Power Delivery (PD) traffic on both control channel lines (CC1/CC2)
  • Message decoding, including performance negotiation, alternate mode negotiation, VDM data display, etc.
  • Capturing and displaying extended PD 3.0 messages
  • Decode DisplayPort VDMs
  • Transparent switching in a USB Type-C connection
LED indicator Blues Light Idle/Monitor Green light Traffic on CC1 Red light Traffic on CC2

Product is discontinued
