- This product has been discontinued by the manufacturer
Description
The USB Type-C connector and USB Power Delivery, the specification for charging electronic devices via USB with up to 100 watts, are the two most significant advancements in USB in years. The Type-C connector has a significantly smaller footprint, a reversible architecture - you no longer have to worry about the orientation of the USB cable -, support for faster transfer rates, more power and the Alternate Protocol.
With USB Power Delivery 3.0 (USB-PD) you can adapt the power supply and data transmission to individual needs in a very flexible way. These new functions are based on the previous USB generations and enable, among other things, the combination of video transmission and simultaneous charging of the device.

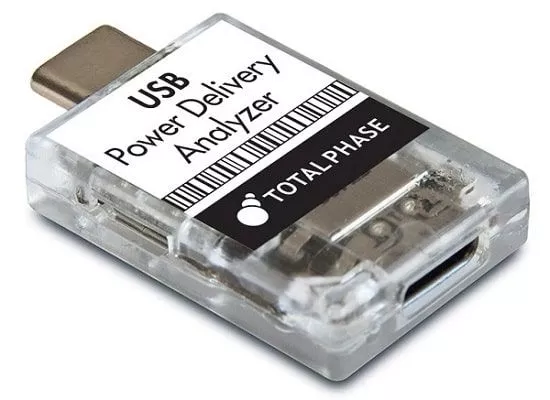

By combining the USB Power Delivery Analyzer with the free Data Center™ software, you can log, monitor and decode the power supply on the CC1/CC2 pins (configuration channel) while simultaneously monitoring the USB 2.0 and USB 3.1 (up to to Gen2) data line is used. With a planned software update you will have the additional option of monitoring and logging the voltage and current of the VBUS and VCONN. These correlate with the Power Delivery data itself and can be displayed.
Quick, easy and portable. This is the modern way to test and debug your USB Power Delivery sources.
Key Features
- Sniffing Power Delivery (PD) traffic on both control channel lines (CC1/CC2)
- Message decoding, including performance negotiation, alternate mode negotiation, VDM data display, etc.
- Capturing and displaying extended PD 3.0 messages
- Decode DisplayPort VDMs
- Transparent switching in a USB Type-C connection
| LED indicator | |
|---|---|
| Blues Light | Idle/Monitor |
| Green light | Traffic on CC1 |
| Red light | Traffic on CC2 |
Hardware requirement
- Intel or AMD 2 gigahertz (GHz) processor or faster
- 1 gigabyte (GB) of physical RAM (32-bit) or 2 GB of RAM (64-bit)
- 2 GB or more available disk space
- High-speed USB port
- VGA with a screen resolution of 1024 x 768 or higher
- Internet access is helpful
Supported operating systems (32-bit and 64-bit)
- Windows: 7, 8, 8.1, 10
- Linux: Ubuntu, Fedora, SuSE, RedHat
- Mac OS X 10.7-10.1
Available Software
Data Center
API's
Technical Data
| Device specification |  USB Power Delivery Analyzer |
|---|---|
USB Pass Through | SuperSpeedPlus Generation 2 with 10 Gbps SuperSpeed Generation 1 with 5 Gbps Hi-Speed, 480 Mbps Full Speed, 12Mbps Low Speed, 1.5Mbps |
VBus support (maximum) | 20V, 5A |
Target port | 1 x USB socket Type-C 1 x USB Type-C connector |
Analysis Port (connects to PC) | USB socket 2.0 Micro B Analyzer is USB powered |
Quality | RoHS certified 6 months warranty Manufactured to: ISO9001, ISO 13485, AS9100C, ITAR |
Dimension | W x H x L: 25.4 mm x 38.1 mm x 6.4 mm |
Weight | 42g (1.5oz) |
Operating temperature | 10º - 35º C (50º - 95º F) |
Includes fully functional monitoring tools | Yes |
Non-intrusive I2C monitoring up to 4 Mhz | Non-intrusive SPI monitoring up to 24 Mhz |
Real-time data collection and display | Bit Level Timing |
Linux and Windows compatible | Monitoring tools for both systems |
| Model comparison |  Beagle USB 12 |  Beagle USB 480 |  Beagle USB 480 Power - Standard |  Beagle USB 480 Power - Ultimate |  Beagle USB 5000 v2 - Standard |  Beagle USB 5000 v2 - Ultimate | USB Power Delivery |
|---|---|---|---|---|---|---|---|
| Article number | TP320221 | TP320510 | TP323510 | TP323610 | TP322510 | TP322610 | TP350110 |
| USB recording rate | <12 Mbps | <480 Mbps | <480 Mbps | <480 Mbps | <5000 Mbps | <5000 Mbps | <1 Mbps |
| USB 3.0 and 2.0 Simulation and Monitoring | No | No | No | No | Option | ✔ | No |
| USB 2.0 Downlink | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| USB 3.0 Downlink | No | No | No | No | Available | ✔ | No |
| Real-time data display & analysis | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | Nein |
| Real-time LTSSM tracking | No | No | No | No | ✔ | ✔ | No |
| Real time Statistics | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | No |
| Memory Standard in the device | Host PC | 64 MB + Host PC | 256 MB + Host PC | 256 MB + Host PC | 2 GB + Host PC | 4 GB + Host PC | Host PC |
| Availability of external triggers | No | Input - Moniter | Input - Moniter | ✔ | ✔ | ✔ | No |
| Advanced Trigger | No | No | No | ✔ | USB 2.0 (Included) | ✔ | No |
| Sync | No | Basic | Basic | Basic | Basic | Available | No |
| USB 3.0 Advance State Machine | No | No | No | No | Available | ✔ | No |
| Current & Voltage Monitor | No | No | ✔ | ✔ | No | No | ✔ |
| Cross-platform support for Window, Linux, Mac OS X | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ (Linux) |
| Software GUI | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Free API | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | No |
