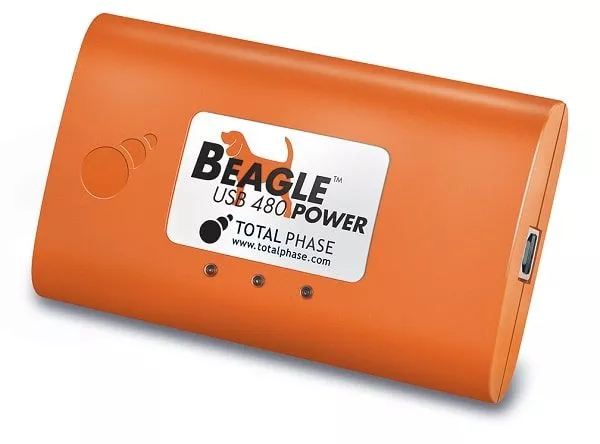

Total Phase Beagle USB 480 Power Ultimate - Protocol Analyzer
Product number: TP323610
The Beagle USB 480 Power Ultimate (TP323610) captures USB 2.0 data, VBUS current & voltage values & has advanced triggers.
Volume discounts on request!
€2,729.00 Net
€3,247.51 incl. VAT
Shipping country
Customer Group
Währung
In Stock, Delivery time: 1 - 3 days
Content: 1
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Model
Product configuration
Description
Beagle USB 480 Power Protocol Analyzer - has the same features as the Standard Edition but has the improved USB2.0 trigger functions. The Ultimate Edition enables VBUS current and voltage measurement within the trend-setting Data Center software. Enhanced USB 2.0 triggering capabilities, extra-large hardware buffer, and one-click protocol-level correlation of voltage and current measurements ensure engineers take advantage of unique real-time data analysis and display. Debugging the functions is made much easier, while at the same time optimizing the performance profile of the applications.
Current/Voltage Monitor
- Graphing real-time VBUS current and voltage readings
- Interactive and bi-directional correlation of current/voltage values with USB data
High performance hardware buffer
- 256MB capacity
- Large ring buffer
Real-time USB class level decoding
- HID, Audio, Video, Still, Printer
- Storage, Hub
- Network, Mobile, CDC
USB 2.0 Enhanced Triggers
- Create state-based and flexible trigger conditions based on data patterns, packet types, error types, events and other criteria
- Hardware Packet Filtering
- Up to eight independent states and six matches per state for USB 2.0 recording
- Digital inputs and outputs for synchronization with oscilloscopes or logic analyzers
Real-time non-intrusive monitoring
- Real-time data analysis and display
- Auto bus speed detection
- Low/Full/High Speed USB 2.0
- Capture traces up to >25GB
Available software
Data Center
Data Center™ software is free bus monitor software that captures and displays USB, USB Type-C Power Delivery, I2C, SPI, eSPI and CAN bus data via the hardware protocols. Data Center is the only protocol analysis software with real-time performance and cross-platform support for Windows, Linux and Mac OS X.
Labview Driver
The Beagle LabVIEW driver is a free open source LabVIEW instrument driver for accessing the Beagle protocol analyzers within the LabVIEW development environment. The driver package is targeted at Windows and is based on the Beagle software library.
API's
The Beagle USB 480 Protocol Analyzer has a comprehensive API for Rosetta language bindings - 32-bit and 64-bit software API C, C#, Python 2/3, .NET, VB.NET and VB6. The Labview drivers provide all the functionality normally available to a C language developer. Windows 10, 11, Max OS X 10 - 11, Ubunto, Fedora, SuSE and Red Hat are supported.
Technical Data
| Device specification |  Beagle 480 USB Power Analyzer - Ultimate |
|---|---|
| USB 2.0 Monitoring | High speed, 480 Mbps Full speed, 12 Mbps Low speed, 1.5 Mbps |
| Target Device Port | USB 2.0 type A socket |
| Target Host Port | USB 2.0 type B socket |
| Analysis port (connection to PC) | USB 2.0 type B socket The analyzer is powered by the bus |
| Digital I/O Port | Mini DIN 9 connector 4 inputs, 4 outputs, 1 ground Digital inputs are designed for 3.3 V and max. 30 MHz. Digital outputs are designed for 3.3 V and 10 mA |
| Current/Voltage Measurement | Peak current: 3 A (transient) Peak voltage: 20 V (transient) |
| Dimensions | W x D x L: 70mm x 26mm x 114mm (2.76" x 1.02" x 4.49") |
| Weight | 97.5g |
| Operating Temperature | 10 to 35 °C (50 to 95 °F) |
| Model comparison |  Beagle USB 12 |  Beagle USB 480 |  Beagle USB 480 Power - Standard |  Beagle USB 480 Power - Ultimate |  Beagle USB 5000 v2 - Standard |  Beagle USB 5000 v2 - Ultimate |  USB Power Delivery |
|---|---|---|---|---|---|---|---|
| Article number | TP320221 | TP320510 | TP323510 | TP323610 | TP322510 | TP322610 | TP350110 |
| USB recording rate | <12 Mbps | <480 Mbps | <480 Mbps | <480 Mbps | <5000 Mbps | <5000 Mbps | <1 Mbps |
| USB 3.0 and 2.0 Simulation and Monitoring | No | No | No | No | Option | ✔ | No |
| USB 2.0 Downlink | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| USB 3.0 Downlink | No | No | No | No | Available | ✔ | No |
| Real-time data display & analysis | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | Nein |
| Real-time LTSSM tracking | No | No | No | No | ✔ | ✔ | No |
| Real time Statistics | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | No |
| Memory Standard in the device | Host PC | 64 MB + Host PC | 256 MB + Host PC | 256 MB + Host PC | 2 GB + Host PC | 4 GB + Host PC | Host PC |
| Availability of external triggers | No | Input - Moniter | Input - Moniter | ✔ | ✔ | ✔ | No |
| Advanced Trigger | No | No | No | ✔ | USB 2.0 (Included) | ✔ | No |
| Sync | No | Basic | Basic | Basic | Basic | Available | No |
| USB 3.0 Advance State Machine | No | No | No | No | Available | ✔ | No |
| Current & Voltage Monitor | No | No | ✔ | ✔ | No | No | ✔ |
| Cross-platform support for Window, Linux, Mac OS X | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ (Linux) |
| Software GUI | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Free API | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | No |
