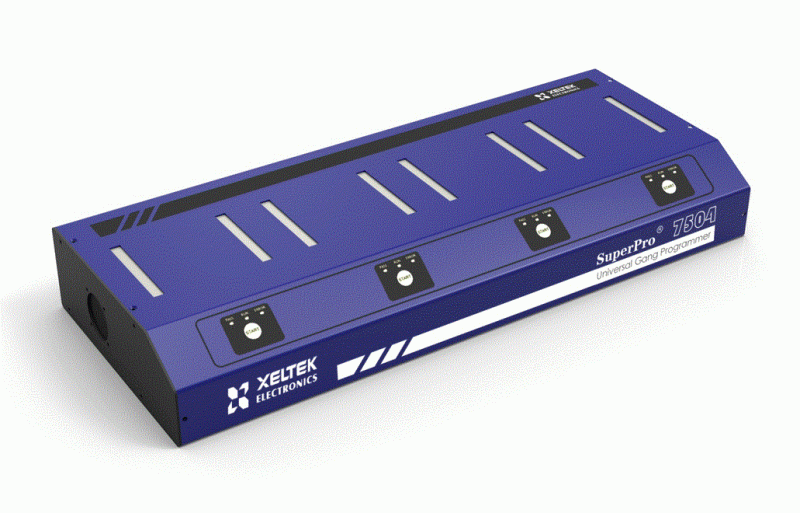

Xeltek SuperPro 7504N Universal Gang Programmer

Other functions

• High programming speed
  SuperPro 7504N was developed with high programming speed in mind. Our semiconductor manufacturer-approved algorithms, precision, and clean signals guarantee high programming yields. A special design was developed to eliminate overshoot and ground bounce. Algorithms are executed with a state machine architecture constructed with FPGA to achieve ultra-high programming speed.

• Greatest Device Support
  We are located in Silicon Valley and have good relationships with many major IC companies that are important to us, to continuously support new devices. SuperPro 7504N currently supports more than 99,800 devices, representing the largest device library in the programming industry. can be added within a week - the average delivery time from other manufacturers is over two months.

• Project files
  The project file stores preparations before programming. Users can also restore and save the work environment. The project file contains device type, buffer data, operational option settings, configuration bit settings, and batch commands. Project files can be password protected to increase security and reliability when operated by untrained operators.

• Auto Function
  The Auto Function organizes various functions into a sequential group (Erase, Blank Check, Program, Verify, and Protect). Functions are executed in sequential order, similar to a batch command.

• Production mode
  Once a chip is properly seated, the programmer automatically launches batch erase, blank check, program, and verify commands. Automatic chip recognition saves time and increases efficiency.

• Production Statistics
  A log file could be used to store operational information before the program exits. Log files can also be used to facilitate quality tracking.

• Factory Mode
  This mode is designed for mass production in the factory. In order to prevent operation errors from destroying chips and wrong data from being written on the chip, SuperPro works in auto function mode. The administrator can set a password to prevent unauthorized access to the system.

• Auto-detection of file types
  We support almost all types of popular file formats, including file formats with auto-detection capabilities: Binary, Intel (linear & segmented) Hex, Motorola S , Tektronix (linear & segmented), JEDEC, POF etc.

• Automatic increment of serial numbers
  Automatic generation of electronic serial numbers is available on the Superpro 7504N. This function is implemented by Option. Auto Increment allows users to add a unique serial number to the device. After each successful programming, the software will automatically change the value by the specified increment mode.

• Password settings
  for intellectual property protection are available in both PC and standalone modes.
