Description

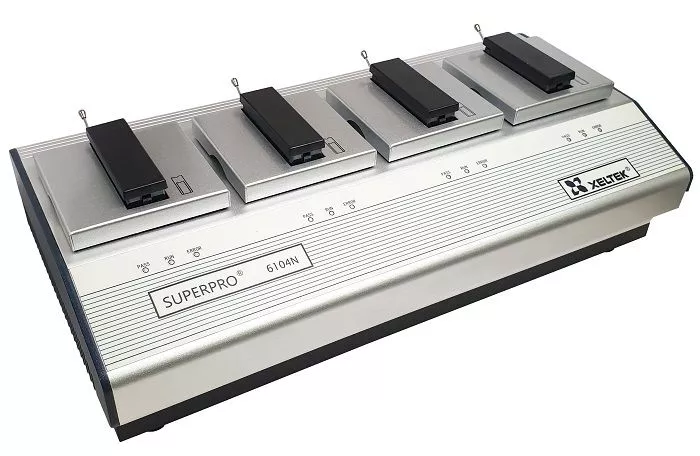

SuperPro 6104GNP is a low cost, reliable and fast 4 speed general purpose chip programmer. It is designed to communicate via USB 2.0 for development needs. With 144 pin drivers to support high pin count chips, it has the largest number of supported devices in the programming industry.
Application and Target Customers: Programming houses, electronics repairs, auto repair ships, forensics and data recovery companies, medical equipment, larger equipment support needs.
Functions
- 4 independent programming modules working simultaneously for high-speed programming
- Supports NAND / eMMC devices up to 256GB Built-in 144 universal pin drivers
- Comes with free support for device update requests within the warranty period
- Powerful ARM9 programming processor
Advanced Features
- Equipped with 4 x 144-pin universal drivers compatible with different case types
- In-system programming () capability
- Supports devices with Vcc from 1.2V - 5V.
- Supports files up to 256GB.
- Overcurrent and overvoltage protection for chip and programming hardware safety
- Compatible with Windows XP / Vista / 7 / 8 / 10 (32/64 bit)
- Only IC manufacturer approved programming algorithms are used for high reliability.
- Vcc verification (at +5% ~ -5% and +10% ~ -10%) improves programming reliability.
Other functions
- High programming speed
SuperPro 6104NGP was developed with high programming speed in mind. Our semiconductor manufacturer-approved algorithms, precision, and clean signals guarantee high programming yields. A special design was developed to eliminate overshoot and ground bounce. Algorithms are executed with a state machine architecture constructed with FPGA to achieve ultra-high programming speed. - Biggest Device Support
Located in Silicon Valley, we have good relationships with many major IC companies, which are important for us to continuously to support new devices. SuperPro 6104NGP currently supports more than 99,800 devices, representing the largest device library in the programming industry. can be added within a week - the average delivery time from other manufacturers is over two months. - Project files
The project file stores preparations before programming. Users can also restore and save the work environment. The project file contains device type, buffer data, operational option settings, configuration bit settings, and batch commands. Project files can be password protected to increase security and reliability when operated by untrained operators. - Auto Function
The Auto Function organizes various functions into a sequential group (Erase, Blank Check, Program, Verify, and Protect). Functions are executed in sequential order, similar to a batch command. - Production mode
Once a chip is properly seated, the programmer automatically launches batch erase, blank check, program, and verify commands. Automatic chip recognition saves time and increases efficiency. - Production Statistics
A log file can be used to store operational information before the program exits. Log files can also be used to facilitate quality tracking. - Factory Mode
This mode is designed for mass production in the factory. To prevent operation errors from destroying chops and writing wrong data to the chip, SuperPro works in auto function mode. The administrator can set a password to prevent unauthorized access to the system. - Automatic detection of file types
We support almost all known file formats, including file formats with automatic detection features: Binary, Intel (linear & segmented) Hex, Motorola S, Tektronix (linear & segmented), JEDEC, POF etc. - Automatic increase
of serial numbers Automatic generation of electronic serial numbers is available for Superpro 6104NGP. This function is implemented by Option. Auto Increment allows users to add a unique serial number to the device. After each successful programming, the software automatically changes the value by the specified increment mod
Software Features
Automation of serial numbers
Some applications require different content, such as B. the product sequence number or the MAC address, can be written in a specific area. This can be implemented automatically with the SuperPro 6104NGP.
SuperPro Programmer Software
The Super Pro PC software enables intuitive programming by simply selecting the IC and the programming files. The large database of programming algorithms is already integrated into the software.
TTL/CMOS Logic IC Tester
SuperPro 6104NGP series programmers can act as testers for TTL/CMOS logic ICs! In addition to traditional TTL/CMOS (74/4000 series), user can generate custom test vectors to correctly test device logic function.
ISP DLL Application
The DLL provides all the necessary functions you need to call the programming hardware to perform programming operations remotely, through a custom program.
Supported ICs
Technical Data
Device specification | SuperPro 6104NGP |
---|---|
Supported Devices | EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU |
Supported Package Types | DIP, SDIP, PLCC, JLCC, PGA, LGA, SOIC, SOJ, SOT, QFP, TQFP, PQFP, VQFP, MQFP, LQFP, TSOP, SOP, TSOPII, PSOP, SSOP, TSSOP, SON, EBGA, FBGA , FTBGA, VFBGA, μBGA, CSP, SCSP, QFN, HVQFN etc. |
PC interface | USB 2.0 |
Power adapter | Power adapter: input AC 100V - 240V; Output: 12V/1.5A |
Dimensions | Main unit: 438(L) x 216(W) x 94(H) mm |
Weight | Main unit: Weight 9.4 lbs (4.3 Kg) |
Model Comparison | SuperPro 7500 | SuperPro 6100N | SuperPro 610p | SuperPro 7504 | SuperPro 6104N | SuperPro IS01 | SuperPro IS416 |
---|---|---|---|---|---|---|---|
No. of devices supported | 123,900+ | 103,300+ | 33,900+ | 95,900+ | 103,300+ | 10,300+ | 4,200+ |
No. of pin drivers | 144 | 144 | 48 | 144 x 4 | 144 x 4 | 12 | 12 |
NAND support | High | Med | Low | High | Med | N/A | YES |
eMMC support | High | Low | Low | High | Low | N/A | N/A |
MCU support | High | High | High | High | High | High | High |
Sockets per module | Max 4 | 1 | 1 | Max 4 | Max 4 | 1 | 16 |
Module quantity | 1 | 1 | 1 | 4 | 4 | 1 | 1 |
Programming speed | High | High | High | High | High | High | High |
Syn/Asyn | Syn | ASyn | ASyn | ASyn | ASyn | ASyn | ASyn |
ISP Enhanced | No | Limited | Limited | N/A | No | Yes | Yes |
Communication interface | USB/LAN | USB | USB | USB | USB | USB & ATE | USB & LAN & ATE |
Storage media | SD Card | CF Card | N/A Card | N/A | N/A | SD | SD |
Socket adapter series | GX | DX | SA | GX | DX | N/A | N/A |
User requested device updates | Yes | Yes | No | Yes | Yes | Yes | Yes |
