Description

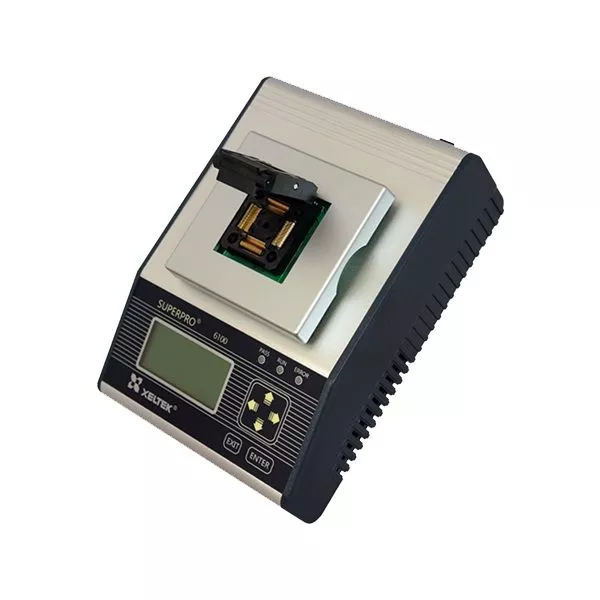

SuperPro 6100N is an affordable, reliable and fast general purpose chip programmer. It is designed to communicate via the USB 2.0 port for development needs and can also work in standalone mode (without connecting to a PC) for production needs. With 144 pin drivers to support high pin count chips, it has the largest number of supported devices in the programming industry.
Application and Target Customers: Programming houses, electronics repair shops, auto repair shops, forensics and data recovery companies, medical devices, need for major device support.
Features
- Built-in 144-pin driver
- Over 103,000 supported devices from nearly 400 IC manufacturers
- Works in PC-hosted and standalone mode
- Supports EEPROM, MCU, NOR Flash, FPGA, CPLD, SPLD, BPROM, NVRAM, EPLD
- Does not support NANDs or eMMCs
- Ultra-fast 144-pin standalone universal programmer with USB interface
- Ideal for prototyping, low volume manufacturing, master chip duplication and chip testing
Advanced Features
- Operate multiple units to build a simultaneous multi-programming system. 1-15 pieces for flexible series production.
- Supports devices with Vcc from 1.2V - 5V.
- Supports files up to 256GB
- Overcurrent and overvoltage protection for chip and programming hardware safety
- Only IC manufacturer approved programming algorithms are used for high reliability.
- Vcc verification (at +5% ~ 5% and +10% ~ 10%) improves programming reliability.
Other Features
- High Programming Speed
SuperPro 6100N is designed with high programming speed in mind. Our semiconductor manufacturer-approved algorithms, precision, and clean signals guarantee high programming yields. A special design was developed to eliminate overshoot and ground bounce. Algorithms are executed with a state machine architecture constructed with FPGA to achieve ultra-high programming speed. - Large device support
Xeltek is located in Silicon Valley and has good relationships with many major IC companies, which are important to continuously support new devices. SuperPro 6100N currently supports more than 100,000 devices, representing the largest device library in the programming industry. can be added within a week - the average delivery time from other manufacturers is over two months. - Project files
The project file stores preparations before programming. Users can also restore and save the work environment. The project file contains device type, buffer data, operational option settings, configuration bit settings, and batch commands. Project files can be password protected to increase security and reliability when operated by untrained operators. - Auto Function
The Auto Function organizes various functions into a sequential group (Erase, Blank Check, Program, Verify, and Build). tzen). Functions are executed in sequential order, similar to a batch command. - Production mode
Once a chip is properly seated, the programmer automatically launches batch erase, blank check, program, and verify commands. Automatic chip recognition saves time and increases efficiency. - Production Statistics
A log file can be used to store operational information before the program exits. Log files can also be used to facilitate quality tracking. - Factory Mode
This mode is designed for mass production in the factory. In order to prevent operation errors from destroying chips and wrong data from being written on the chip, SuperPro works in auto function mode. The administrator can set a password to prevent unauthorized access to the system. - Auto-detection of file types We support almost all known file formats, including file formats with auto-detection features: Binary, Intel (linear & segmented) Hex, Motorola S, Tektronix (linear & segmented), JEDEC, POF etc.
- Automatic increase
of serial numbers Automatic generation of electronic serial numbers is available on the Superpro 6100n. This function is implemented by Option. Auto Increment allows users to add a unique serial number to the device. After each successful programming, the software will automatically change the value by the specified increment mode. - Password settings
for intellectual property protection are available in both PC and standalone modes.
Software Features
Automation of serial numbers
Some applications require different content, such as B. the product sequence number or the MAC address, can be written in a specific area. This can be implemented automatically with the SuperPro 6100N.
SuperPro Programmer Software
The Super Pro PC software enables intuitive programming by simply selecting the IC and the programming files. The large database of programming algorithms is already integrated into the software.
TTL/CMOS Logic IC Tester
SuperPro 6100 series programmers can act as testers for TTL/CMOS logic ICs! In addition to traditional TTL/CMOS (74/4000 series), user can generate custom test vectors to correctly test device logic function.
ISP DLL Application
The DLL provides all the necessary functions you need to call the programming hardware to perform programming operations remotely, through a custom program.
Supported ICs
Technical Data
Device Specification | SuperPro 6100N |
---|---|
Devices Supported | EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU |
Package Types Supported | DIP, SDIP, PLCC, JLCC, PGA, LGA, SOIC, SOJ, SOT, QFP, TQFP, PQFP, VQFP, MQFP, LQFP, TSOP, SOP, TSOPII, PSOP, SSOP, TSSOP, SON, EBGA, FBGA, FTBGA, VFBGA, μBGA, CSP, SCSP, QFN, HVQFN etc. |
PC Interface | USB 2.0 |
Stand-Alone Memory | Compact FLASH Card |
Power Supply | AC Adapter: Input AC 100V- 240V; Output: 12V/1.5A |
Dimensions | Package: 301(L) x 252(W) x 145(H) mm |
Weight | Main unit: Weight 3.5 lbs (1.6 Kg) | Package: Weight 6.2 lbs (2.8Kg) |
Model Comparison | SuperPro 7500 | SuperPro 6100N | SuperPro 610p | SuperPro 7504 | SuperPro 6104N | SuperPro IS01 | SuperPro IS416 |
---|---|---|---|---|---|---|---|
No. of devices supported | 123,900+ | 103,300+ | 33,900+ | 95,900+ | 103,300+ | 10,300+ | 4,200+ |
No. of pin drivers | 144 | 144 | 48 | 144 x 4 | 144 x 4 | 12 | 12 |
NAND support | High | Med | Low | High | Med | N/A | YES |
eMMC support | High | Low | Low | High | Low | N/A | N/A |
MCU support | High | High | High | High | High | High | High |
Sockets per module | Max 4 | 1 | 1 | Max 4 | Max 4 | 1 | 16 |
Module quantity | 1 | 1 | 1 | 4 | 4 | 1 | 1 |
Programming speed | High | High | High | High | High | High | High |
Syn/Asyn | Syn | ASyn | ASyn | ASyn | ASyn | ASyn | ASyn |
ISP Enhanced | No | Limited | Limited | N/A | No | Yes | Yes |
Communication interface | USB/LAN | USB | USB | USB | USB | USB & ATE | USB & LAN & ATE |
Storage media | SD Card | CF Card | N/A Card | N/A | N/A | SD | SD |
Socket adapter series | GX | DX | SA | GX | DX | N/A | N/A |
User requested device updates | Yes | Yes | No | Yes | Yes | Yes | Yes |
