€1,800.00*
Delivery time: 1-2 weeks
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Description

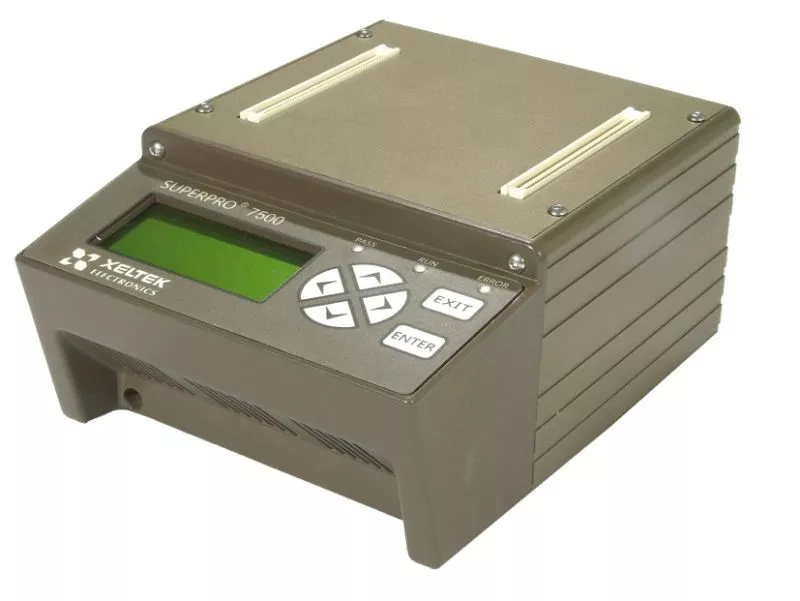

The Xeltek SuperPro 7500N is a general purpose programmer that supports programming of EEPROM, NOR/NAND Flash, MCU, FPGA, CPLD, BPROM, NVRAM, SPLD, EPLD and eMMCs. The device can be used via the PC with USB or LAN with the Super Pro programming software as well as in standalone mode. The SuperPro 7500N's powerful system engine makes it possible to program either one or up to 4 chips at the same time without any additional effort. Turn the universal programmer into a 4-speed programmer by inserting a 4-way adapter.
Functions
- Algorithms designed to program up to 4 chips simultaneously
- Supports most device memories on the market
- Programs eMMC devices up to 64GB
- Supports most packet types including WLCSP
- Works in PC hosted, standalone and LAN modes
- Custom development of device algorithms available
- 144-pin universal driver
- For standard NOR/NAND FLASH devices and serial EEPROM/FLASH
- Four chips can be programmed simultaneously (depending on device type and package).
- Over 59,000 devices are supported in the SuperPro 7500 library. Adapters do not require DIP-lock sockets for transmission, resulting in more reliable connections.
- Powerful NAND FLASH platform library and exclusive solution for special cases. Supports dozens of popular NAND FLASH platforms. Quick customization available for specific needs.
- Built with 144 universal pin driver. Universal adapters are available for different packages.
- The ninth generation of pin driver technology delivers cleaner signals, a wider voltage range, a more accurate and higher clock frequency, and supports devices with Vcc from 1.2V to 5V.
- Chip safety mechanism with built-in self-correcting voltage circuitry to ensure voltage is within a preset range.
- Overcurrent and overvoltage protection for chip and programming hardware.
- Powerful yet easy-to-use software features streamline operations, improve efficiency and reduce user error during the programming process.
- Fast free technical and new device support
Other functions
- Very high programming speed
The SuperPro 7500N programmers use a very fast MCU chip, which not only enables reliable programming algorithms, but also a high programming speed. Using an ARM11 32bit MCU combined with an internal Linux operating system makes them the most advanced and versatile programmers in the industry. Superpro 7500N offers 30% faster programming speed and 8-10 times faster programming speed for eMMC devices compared to Superpro 6100. - Custom 4 Gang Adapters
The SuperPro 7500N can be used to program up to 4 chips at a time. Many EEPROM / Flash / MCU / eMMC chips are also supported in 2-speed or 4-speed mode to increase throughput by almost four times! - LAN mode
Most production programming applications require the programmer to be operated remotely. On the SuperPro 7500N, . The programming devices can be connected to a local network via the LAN connection and remotely controlled via any computer in the network. In this case, the PC controlling the SuperPro 7500N acts as a server and the SuperPro 7500N acts as a client. - Project files
The preparations for programming are saved in the project file. Users can also restore and save the work environment. The project file contains device type, buffer data, operation option settings, configuration bit settings and batch commands. Project files can be password protected to increase security and reliability when operated by untrained personnel. - Auto function
The auto function organizes various functions into a sequential group (erase, blank check, program, verify and protect). The functions are executed in sequential order, similar to a batch command. - Production mode
As soon as a chip is inserted correctly, the programmer automatically starts the batch commands delete, blank value check, program and verify. Automatic chip recognition saves time and increases efficiency. - Production Statistics
A log file can be used to store operational information before the program exits. Log files can also be used for quality control. - Factory mode
This mode is intended for mass production in the factory. In order to prevent operation errors from destroying the chips and wrong data from being written on the chip, SuperPro works in automatic function mode. The administrator can set a password to prevent unauthorized access to the system. - Automatic detection of file types
We support almost all known file formats, including file formats with automatic detection features: Binary, Intel (linear & segmented) Hex, Motorola S, Tektronix (linear & segmented), JEDEC, POF, etc. - Automatic incrementing of serial numbers
Automatic generation of electronic serial numbers is available on the Superpro 7500N. This function is implemented by an option. Auto Increment allows the user to insert a unique serial number into the device. After each successful programming, the software will automatically change the value by the specified increment mode. - Intellectual property protection
Password settings are available in both PC and standalone modes.
Softwarefunktionen
Automation of serial numbers
Some applications require different content, such as B. the product sequence number or the MAC address, can be written in a specific area. This can be implemented automatically with the SuperPro 7500N.
SuperPro Programmer Software
The Super Pro PC software enables intuitive programming by simply selecting the IC and the programming files. The large database of programming algorithms is already integrated into the software.
Connection via LAN
Programming devices can be connected to a local network via the LAN port and remotely controlled from any computer in the network.
ISP DLL application
The DLL provides all the necessary functions you need to call the programming hardware to perform programming operations remotely, through a custom program.
Supported ICs
Technical Data
| Device Specification |  SuperPro 7500N |
|---|---|
Devices Supported | EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU |
| Package Types Supported | DIP, SDIP, PLCC, JLCC, PGA, LGA, SOIC, SOJ, SOT, QFP, TQFP, PQFP, VQFP, MQFP, LQFP, TSOP, SOP, TSOPII, PSOP, SSOP, TSSOP, SON, EBGA, FBGA, FTBGA, VFBGA, μBGA, CSP, SCSP, QFN, HVQFN etc. |
PC Interface | USB 2.0, LAN |
Stand-Alone Memory | SD Card |
Power Supply | AC Adapter: Input AC 100V- 240V; Output: 12V/1.5A |
Dimensions | Main Unit: 184(L) x 160(W) x 78(H) mm |
| Weight | Main unit: Weight 3.5 lbs (0.8 Kg) |
| Model Comparison |  SuperPro 7500 |  SuperPro 6100N |  SuperPro 610p |  SuperPro 7504 | .png) SuperPro 6104N |  SuperPro IS01 |  SuperPro IS416 |
|---|---|---|---|---|---|---|---|
| No. of devices supported | 123,900+ | 103,300+ | 33,900+ | 95,900+ | 103,300+ | 10,300+ | 4,200+ |
| No. of pin drivers | 144 | 144 | 48 | 144 x 4 | 144 x 4 | 12 | 12 |
NAND support | High | Med | Low | High | Med | N/A | YES |
eMMC support | High | Low | Low | High | Low | N/A | N/A |
MCU support | High | High | High | High | High | High | High |
Sockets per module | Max 4 | 1 | 1 | Max 4 | Max 4 | 1 | 16 |
Module quantity | 1 | 1 | 1 | 4 | 4 | 1 | 1 |
Programming speed | High | High | High | High | High | High | High |
Syn/Asyn | Syn | ASyn | ASyn | ASyn | ASyn | ASyn | ASyn |
ISP Enhanced | No | Limited | Limited | N/A | No | Yes | Yes |
Communication interface | USB/LAN | USB | USB | USB | USB | USB & ATE | USB & LAN & ATE |
Storage media | SD Card | CF Card | N/A Card | N/A | N/A | SD | SD |
Socket adapter series | GX | DX | SA | GX | DX | N/A | N/A |
| User requested device updates | Yes | Yes | No | Yes | Yes | Yes | Yes |
