Description

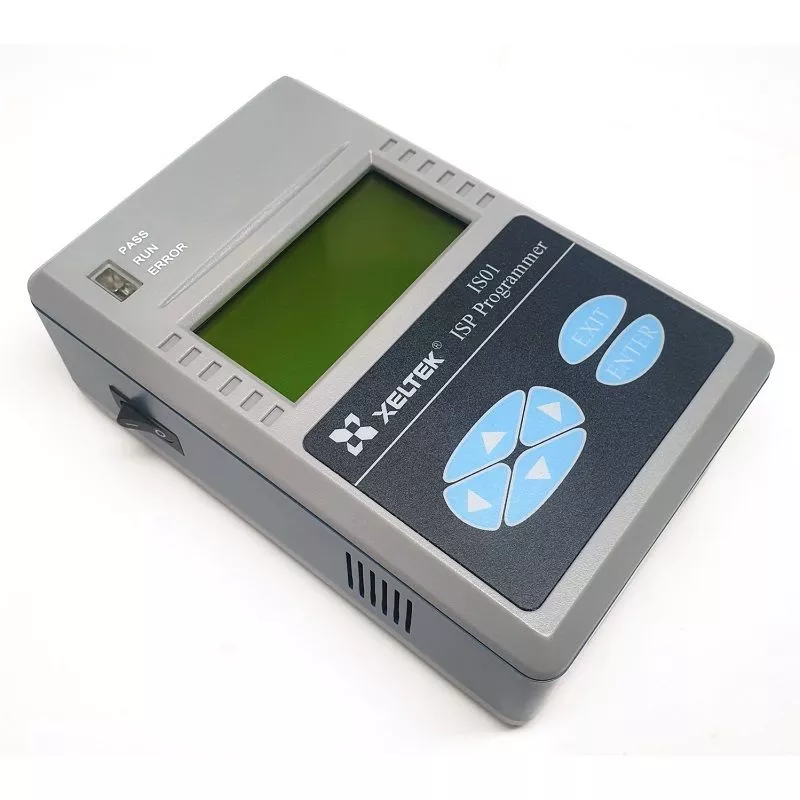

The Xeltek Superpro IS01 is a multifunction serial programmer with compact size and high programming speed. It supports many serial protocols and is ideal for in-system or in-application applications. The programmer is designed to communicate via the USB 2.0 port for development needs, but can also work in standalone mode (without being connected to a PC) for production needs. The ATE interface allows users to integrate the SuperPro IS01 directly into their systems or have it controlled by a custom program. A paid DLL and command line is available for automation.
ICT Sample Equipment: This integration allows users to complete in-circuit test and in-circuit programming in one step.
Functions
- Supports all major ISP protocols (e.g. I2C, SPI, UART, BDM, MW, JTAG, CAN, RS232). Contact Xeltek for more details
- Offers VDD (0.5A) output line and VPP (0.2A)
- Operating temperature 10-50°C
- ESD protection - I/O level is set via SuperProIS01 software (1.5V ~ 4V)
- Online software runs the programmer and manages offline projects via USB2.0
- When working offline, the processes are displayed on the integrated LCD screen, the keyboard and the LED status indicator.
- Project files can be saved using a removable SD card (max. 4GB)
- The ATE interface allows the programmer to be operated and controlled by external signals. There are six project select lines (SEL0 - SEL5), two command input lines (START and STOP) and three
- Status output lines (PASS, FAIL and BUSY). External signals are isolated from the system via optocouplers
- 12V DC / 2A external system power supply
- High programming speed selectable: adjustment to cable length and loading function for target plate.
- Support online (USB2.0 High-Speed) and offline mode simultaneously.
- Supports all major ISP protocols (e.g. I2C, SPI, UART, BDM, MW, JTAG, CAN, RS232).
- Includes for automated operation.
- Built-in overcurrent protection function.
- Field-proven for R&D, mass production and custom in-system programming projects.
- The programmer works in either PC-hosted mode or standalone mode.
- In PC hosted mode, a PC controls the programmer over a high-speed USB2.0 connection for device programming.
- In standalone mode, the user controls the programmer via a built-in LCD screen and keyboard.
- An SD card stores project files.
- Compatible with Windows XP / Vista / 7 / 8 / 10 (32/64 bit)
More features
- Largest ISP device library
SuperPro IS01 currently supports more than 10,000 devices, making it the largest device library in the serial programming industry. SuperPro IS01 supports all major ISP protocols such as I2C, SPI, UART, BDM, MW, JTAG, CAN and RS232.
- Longer cable lengths
The SuperProIS01 is a serial programmer that can program a board up to 1m away using an ISP cable. In addition to cable line driving capability for long-distance applications, the advanced in-system driver allows the operating speed to be adjusted for execution timing purposes. VDD (0-5.5V / 0.5A) and Vpp (0-15V / 0.2A) lines to power the target board and target devices.
- Mass production mode
SuperPro IS01 has a working mode called "", which means as soon as the programmer detects that the target board is ready and receives an ISP signal, it will immediately start the Function mode defined by AUTO without keyboard operation. TPIN and TPOUT are available in the ISP port for this. TPOUT supplies a high level and TPIN is the input line for level detection. If these points are short-circuited on the target board, TPIN will detect high level immediately after applying the ISP signal to the test point, and the AUTO command sequence can be started.
- Multi programming
Up to program multiple circuit boards or all programmers can be used in stand-alone mode.
Software features
- Project files
The project file stores preparations before programming. Users can also restore and save the work environment. The project file contains device type, buffer data, operation option settings, configuration bit settings and batch commands. - Project files
may be password protected to increase security and reliability when operated by untrained operators. - Project group
Run multiple project files in batch mode Multiple chips can be run simultaneously with the . The project group organizes the batch execution of multiple projects and is available on all SuperPro ISP models. - Auto Function
The Auto Function organizes various functions into a sequential group (Erase, Blank Check, Program, Verify, and Protect). Functions are executed in sequential order, similar to a batch command. - Production Statistics
A log file can be used to store operational information before the program exits. Log files can also be used to facilitate quality tracking. - Factory Mode
This mode is designed for mass production in the factory. In order to prevent operation errors from destroying chips and wrong data from being written on the chip, SuperPro works in auto function mode. The administrator can set a password to prevent unauthorized access to the system. - XPlayer
SuperPro IS01 supports JAM, SVF and Staple files from ACTEL, Xilinx and ALTERA. SuperPro IS01 also supports ACTEL Direct C files. STP or JAM files can be generated using design tools such as ISE and Quartus II. - LabVIEW
is an easy task. Previously, users had to purchase DLL functions and create a set of custom VIs for integration, which took days and resulted in expensive development time. The LabVIEW driver package can be used in the test program without a great deal of programming and customization. The standard LabVIEW driver is for . - Automatic detection of file types
We support almost all known file formats, including file formats with automatic detection features: Binary, Intel (linear & segmented) Hex, Motorola S, Tektronix (linear & segmented), JEDEC, POF etc. - Automatic increment of serial numbers
Automatic generation of electronic serial numbers is available on the Superpro IS01. This function is implemented by Option. Auto Increment allows users to add a unique serial number to the device. After each successful programming, the software will automatically change the value by the specified increment mode. - Password settings
for intellectual property protection are available in both PC and standalone modes.
Supported ICs
Technical Data
| Device Specification |  SuperPro IS01 |
|---|---|
| Supported Protocols | I2C, SPI, UART, BDM, MW, JTAG, CAN, RS232 |
| ESD Protection | Yes (I/O Level 1.5V - 4V) |
| Target Power | VDD (0-5,5V / 0,5A) Vpp (0-15V / 0,2A) |
| Memory | SD Card (max. 4GB) |
| Automation | ATE Interface allows external operating and controlling |
| Operating Temperature | 10°C to 50°C |
| Power | 12V DC / 2A |
| Interfaces | USB 2.0 Port ATE Port |
| Model Comparison |  SuperPro 7500 |  SuperPro 6100N |  SuperPro 610p |  SuperPro 7504 | .png) SuperPro 6104N |  SuperPro IS01 |  SuperPro IS416 |
|---|---|---|---|---|---|---|---|
| No. of devices supported | 123,900+ | 103,300+ | 33,900+ | 95,900+ | 103,300+ | 10,300+ | 4,200+ |
| No. of pin drivers | 144 | 144 | 48 | 144 x 4 | 144 x 4 | 12 | 12 |
NAND support | High | Med | Low | High | Med | N/A | YES |
eMMC support | High | Low | Low | High | Low | N/A | N/A |
MCU support | High | High | High | High | High | High | High |
Sockets per module | Max 4 | 1 | 1 | Max 4 | Max 4 | 1 | 16 |
Module quantity | 1 | 1 | 1 | 4 | 4 | 1 | 1 |
Programming speed | High | High | High | High | High | High | High |
Syn/Asyn | Syn | ASyn | ASyn | ASyn | ASyn | ASyn | ASyn |
ISP Enhanced | No | Limited | Limited | N/A | No | Yes | Yes |
Communication interface | USB/LAN | USB | USB | USB | USB | USB & ATE | USB & LAN & ATE |
Storage media | SD Card | CF Card | N/A Card | N/A | N/A | SD | SD |
Socket adapter series | GX | DX | SA | GX | DX | N/A | N/A |
| User requested device updates | Yes | Yes | No | Yes | Yes | Yes | Yes |
