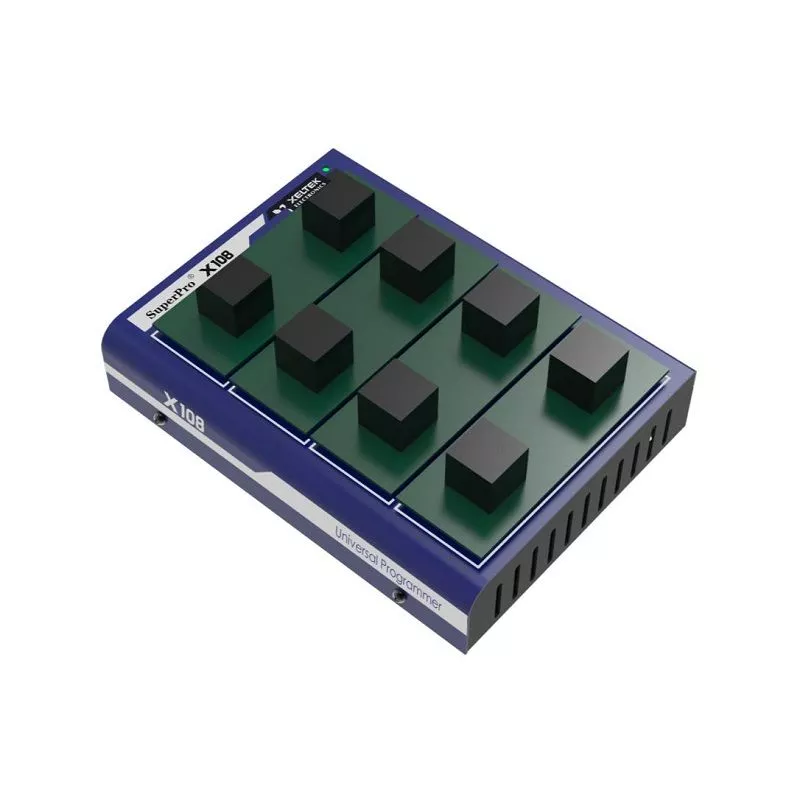

Xeltek SuperPro X108 eMMC Gang Programmer

The X108 is the recommended tool for programming eMMC, NAND and mid-volume microcontrollers.

€2,400.00*

Content: 1

incl. VAT. (inactive)

Prices excl. VAT plus shipping costs

Delivery time: 1-2 weeks

Further information

Product number: SuperPro X108

Manufacturer: Xeltek

SuperPro X108 eMMC Gang Programmer

Offer

Description

The SuperPro X108 is an 8-socket production programmer. The X108 is the recommended tool for programming eMMC, NAND and mid-volume microcontrollers. The programming algorithms tested by the IC manufacturers achieve a high programming speed, so that, for example, an eMMC chip with a memory size of 1GB can be programmed and tested within 38 seconds.

Functions

Programs and verifies eMMC ICs in 30 seconds
Programs and verifies NAND FLASH ICs in 35 seconds
Program 8 eMMC or NAND flash devices simultaneously.
Approved programming algorithms from many IC manufacturers

Advanced Features

In production mode, the device automatically begins the programming process as soon as the chip is inserted into the socket.
With the Project feature Set configurations once and save your project requirements for future use. The project file includes programming file, configurations and programming operations.
Set a protected project file with password and control the production volume
Combine programming operations such as program, verify, save into a single batch command in any order.
The Dynamic Buffer allows you to program each chip with a different file. E.g. Programming with serial number, MAC address etc.
Connect 12 SPX108 to meet production needs. Manage all units under one GUI as a concurrent production programmer.
Compatible with JAM/STAPL Player and Direct C
Log file and statistics table for quality control
MES and Industrial 4 compatible remote communication interface and runtime database available.

Programmingspeed

Device	Capacity	SP7500 P+Vtime（S）	SP/X1 P+V time（S)	Remarks
KLM8G1GEND	1GB	50	38	eMMC
K9F1G08U0C	1Gb	50	30	NAND FLASH
MX25L12835E	128Mb	45	38	SPI FLASH

Supported ICs

The SuperPro 6100N programmer supports over 104,000 devices to get an overview of these ICs and the required adapter See the Supported Devices PDF under the Documentation section or use the link below to search the IC database.

To the selection assistant

Productvideo

SuperPro Software

Technical Data

Device specification	SuperPro X108
Supported devices	eMMC, EPROM, paged out EPROM, parallel and serial EEPROM, FPGA configuration PROM, FLASH memory (NAND), BPROM, NVRAM, SPLD, CPLD, EPLD, firmware HUB, microcontroller, MCU
Supported Package Types	DIP, SDIP, PLCC, JLCC, PGA, LGA, SOIC, SOJ, SOT, QFP, TQFP, PQFP, VQFP, MQFP, LQFP, TSOP, SOP, TSOPII, PSOP, SSOP, TSSOP, SON, EBGA, FBGA , FTBGA, VFBGA, µBGA, CSP, SCSP, QFN, HVQFN, etc.
Interface	USB 3.0 Banana plug (grounded)
Power supply	Power supply: input AC 100V - 240V; Output: 12V/2A
Dimensions	Device: 18013248mm Package: 301(L) x 252(W) x 145(H)mm
Weight	Main unit: weight 0.6 kg Package: weight 1.2 kg

Model Comparison	SuperPro 7500	SuperPro 6100N	SuperPro 610p	SuperPro 7504	SuperPro 6104N	SuperPro IS01	SuperPro IS416
No. of devices supported	123,900+	103,300+	33,900+	95,900+	103,300+	10,300+	4,200+
No. of pin drivers	144	144	48	144 x 4	144 x 4	12	12
NAND support	High	Med	Low	High	Med	N/A	YES
eMMC support	High	Low	Low	High	Low	N/A	N/A
MCU support	High	High	High	High	High	High	High
Sockets per module	Max 4	1	1	Max 4	Max 4	1	16
Module quantity	1	1	1	4	4	1	1
Programming speed	High	High	High	High	High	High	High
Syn/Asyn	Syn	ASyn	ASyn	ASyn	ASyn	ASyn	ASyn
ISP Enhanced	No	Limited	Limited	N/A	No	Yes	Yes
Communication interface	USB/LAN	USB	USB	USB	USB	USB & ATE	USB & LAN & ATE
Storage media	SD Card	CF Card	N/A Card	N/A	N/A	SD	SD
Socket adapter series	GX	DX	SA	GX	DX	N/A	N/A
User requested device updates	Yes	Yes	No	Yes	Yes	Yes	Yes

Documentation

SuperPro 6100N User Manual

SuperPro 6100N supported ICs
