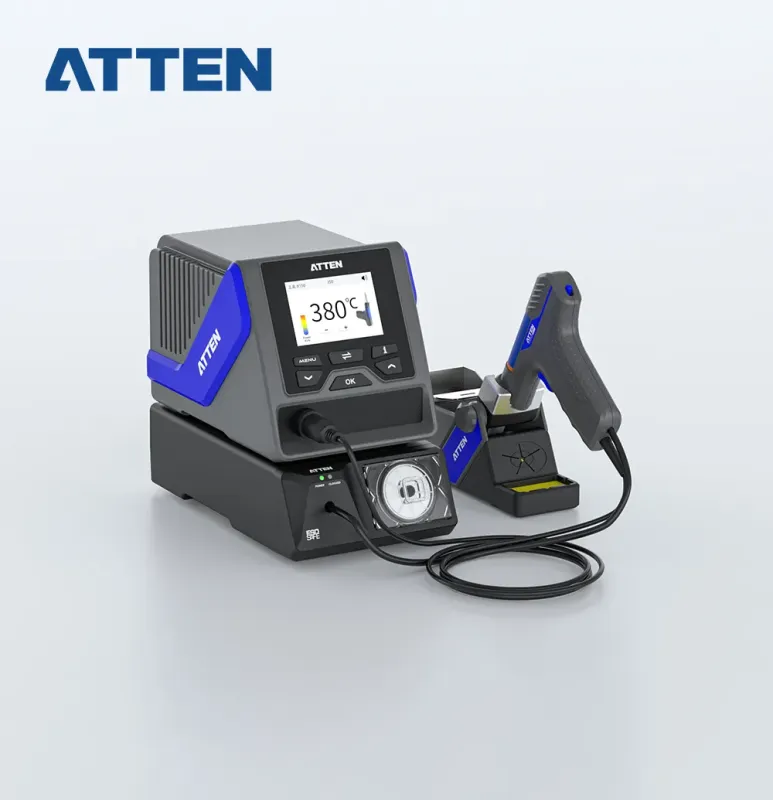

The ATTEN GT-5150P desoldering station is an intelligent digital soldering station with a 150 W heating element for temperatures from 150 - 480 °C.
€489.00*
Content: 1
Volume discounts on request!
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
In Stock, Delivery time: 1 - 3 days
Further information
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Product number: GT-5150P
Manufacturer: Atten
Description
The ATTEN GT-5150P desoldering station is an intelligent digital soldering station with a 150 W heating element for temperatures from 150 - 480 °C. With the supplied desoldering gun with suction function, you can carry out all desoldering work easily and cleanly.
The Atten GT-5150P soldering station has a high-quality heating element with 150 watts of power with a built-in vacuum suction pump and is supplied with suitable PC software for control. The GT-5150P is equipped with a user-friendly display. The soldering station automatically lowers the temperature to 150°C when not in use. Three different desoldering temperatures can be easily programmed individually and can be called up directly by pressing the corresponding selection button.
The desoldering station is supplied with a separate soldering holder. With 150 watts of power, the soldering tip heats up very quickly, and the high temperature stability (2°C) enables very precise work.
Features
- Built-in vacuum suction pump.
- The maximum output is 150 W.
- Can automatically recognise the connected soldering tools and upload the corresponding parameters.
- Software for control via a PC
- compatible with various types of soldering tools
- Intuitive menu navigation
- Display of parameter data and information in the form of a graphic on a large display
- 3 adjustable temperatures available at the touch of a button
- Very fast heat-up: from room temperature to 350 °C in only approx. 7 s
- High-contrast multifunction LC display for status and programming display
- Readiness for operation checked by bar display
- flexible connection cable with plug-in system
- Temperature freely selectable between 150 °C and 480 °C
- Precise temperature calibration possible, calibration range ± 50 °C
- Temperature stability: ± 2 °C (without load / MCU-controlled temperature calibration)
- Temperature setting possible in 5-degree or 1-degree increments
- Automatic, adjustable temperature reduction during soldering breaks to 150 °C (1-120 min)
- Protection against temperature adjustment
- ESD-safe design, low-voltage heating completely separated from the power supply
- Freely positionable holder
- Intelligent detection of working or non-working status.
Technical Data
| Model | GT-5150P |
|---|---|
| Power output | 150 watts |
| Temperature range | 150°C - 480°C |
| Temperature offset range | ±50°C |
| Temperature setting | 5 digits (standard) / 1 digit (fine-tuning) |
| Temperature stability | 2°C |
| Heating element | with silver alloy |
| ESD protection | ✓ |
| Earthing resistance | < 2 Ohm |
| Earth potential | < 2 mV |
| Weight | 5.68 kg |
| Channel | 1 |
| Power supply | 230 V / 50 Hz |
| RoHS | Compliant |
