With the GT-5200P, electronic tweezers or a soldering iron of up to 150 W can be used in parallel with the desoldering gun.
€639.00*
Content: 1
Volume discounts on request!
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
In Stock, Delivery time: 1 - 3 days
Further information
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Product number: GT-5200P
Manufacturer: Atten
Description

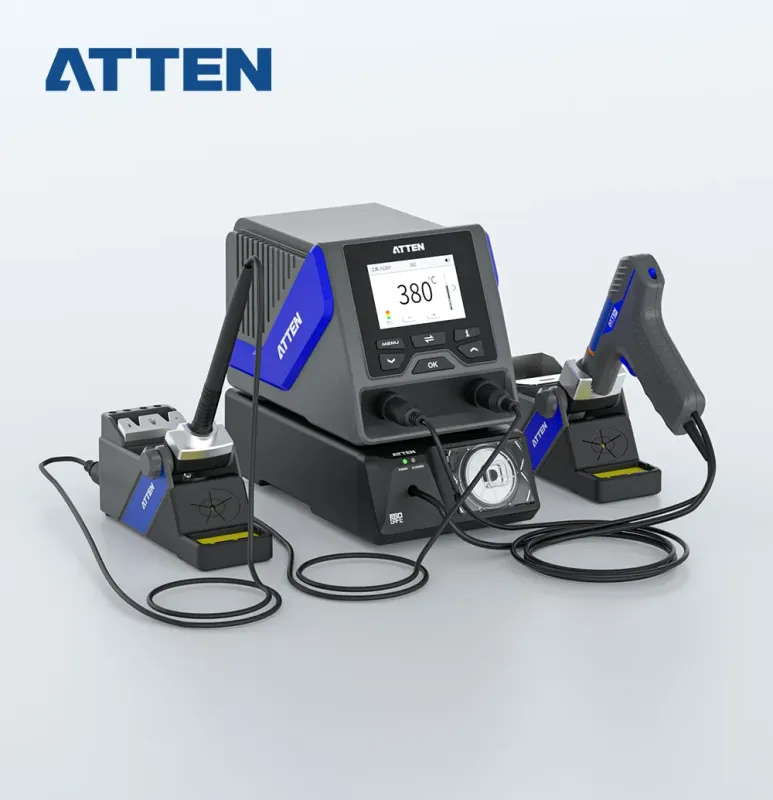

The GT-5200P station has both a channel for connecting the desoldering gun to the vacuum pump and a conventional soldering channel for connecting various soldering tools such as soldering irons or tweezers. Both channels can be used in parallel.
The Atten GT-5200P soldering station has a high-quality heating element with 200 watts of power with a built-in vacuum suction pump and is supplied with suitable PC software for control. The soldering station automatically lowers the temperature to 150°C when not in use. Three different desoldering temperatures can be easily programmed individually and can be called up directly by pressing the corresponding selection button.
The desoldering station is supplied with two separate soldering holders.
Features
- Built-in vacuum suction pump.
- The maximum output is 150 W.
- Can automatically recognise the connected soldering tools and upload the corresponding parameters.
- Built-in RS485 interface for computer control.
- Software for control via a PC
- compatible with various types of soldering tools
- Intuitive menu navigation
- Display of parameter data and information in the form of a graphic on a large display
- 3 adjustable temperatures available at the touch of a button
- Very fast heat-up: from room temperature to 350 °C in only approx. 7 s
- High-contrast multifunction LC display for status and programming display
- Readiness for operation checked by bar display
- flexible connection cable with plug-in system
- Temperature freely selectable between 150 °C and 480 °C
- Precise temperature calibration possible, calibration range ± 50 °C
- Temperature stability: ± 2 °C (without load / MCU-controlled temperature calibration)
- Temperature setting possible in 5-degree or 1-degree increments
- Automatic, adjustable temperature reduction during soldering breaks to 150 °C (1-120 min)
- Protection against temperature adjustment
- ESD-safe design, low-voltage heating completely separated from the power supply
- Freely positionable holder
- Intelligent detection of working or non-working status.
Technical Data
| Model | GT-5200P |
|---|---|
| Power output | 200 watts |
| Temperature range | 150°C - 500°C |
| Temperature offset range | ±50°C |
| Temperature setting | 5 digits (standard) / 1 digit (fine-tuning) |
| Temperature stability | 2°C |
| Heating element | with silver alloy |
| ESD protection | ✓ |
| Earthing resistance | < 2 Ohm |
| Earth potential | < 2 mV |
| Weight | 5.68 kg |
| Channel | 1 |
| Power supply | 230 V / 50 Hz |
| RoHS | Compliant |
