Description

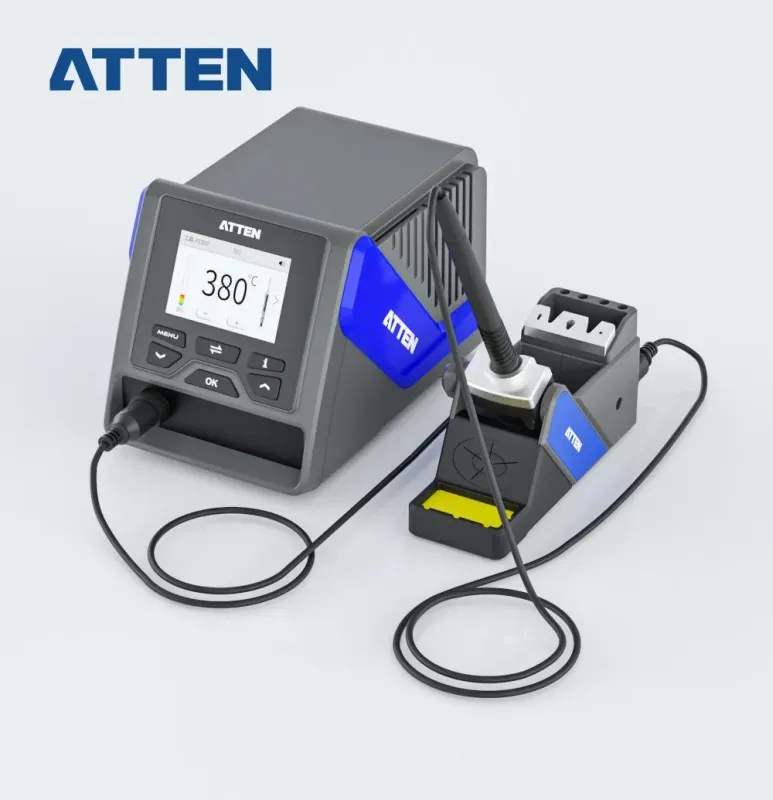

The upgrade version of the GT-6150P has improved IOT functions and a colour display.
The ATTEN GT-6150P soldering station is an intelligent digital soldering station with 150 W heating element for temperatures from 150 - 480 °C. The lightweight soldering iron is well suited for long periods of work at accurate and stable temperatures.
The Atten GT-6150P soldering station has a high-quality heating element with 150 watts of power and is supplied with suitable PC software for control. The GT-6150 is equipped with a user-friendly display. The soldering station automatically lowers the temperature to 150°C when not in use. This ensures a longer service life for the soldering tip. Three different soldering temperatures can be easily programmed individually and can be called up directly by pressing the corresponding selection button.
The soldering station is supplied with a separate soldering holder. With 150 watts of power, the soldering tip heats up very quickly, and the high temperature stability (2°C) enables very precise work.
Features
- Software for control via a PC
- compatible with various types of soldering tools
- The maximum power is 150 W
- Intuitive menu navigation with large silicone buttons
- Display of parameter data and information in the form of a graphic on a large display
- Automatically recognises the connected soldering tools and calculates the corresponding parameters
- 3 adjustable temperatures available at the touch of a button
- Very fast heat-up: from room temperature to 350 °C in only approx. 5 s
- Internally heated soldering tip, fast and efficient heat transfer to the entire soldering tip
- High-contrast multifunction LC display for status and programming display
- Operational readiness check via bar display
- Soldering iron with flexible connection cable
- Soldering tip temperature freely selectable between 150 °C and 480 °C
- Precise temperature calibration possible, calibration range ± 50 °C
- Temperature stability: ± 2 °C (without load / MCU-controlled temperature calibration)
- Temperature setting possible in 5-degree or 1-degree increments
- Automatic, adjustable temperature reduction during soldering breaks to 150 °C (1-120 min)
- Protection against adjustment of the soldering tip temperature
- Warning in the event of device malfunctions
- ESD-safe design, low-voltage heating completely separated from the power supply
- Freely adjustable soldering iron holder
- High-quality four-wire heating element with silver alloy for fast heat-up
- Intelligent detection of working or non-working status.
Technical Data
| Model |  GT-6150 |
|---|---|
| Power output | 150 watts |
| Temperature range | 150°C - 480°C |
| Temperature offset range | ±50°C |
| Temperature setting | 5 digits (standard) / 1 digit (fine-tuning) |
| Temperature stability | 2°C |
| Heating element | with silver alloy |
| ESD protection | ✓ |
| Earthing resistance | < 2 Ohm |
| Earth potential | < 2 mV |
| Dimensions | 168 x 110 x 95mm |
| Weight | 2.68 kg |
| Channel | 1 |
| Power supply | 230 V / 50 Hz |
| RoHS | Compliant |
