€377.00*
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
In Stock, Delivery time: 1 - 3 days
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Description

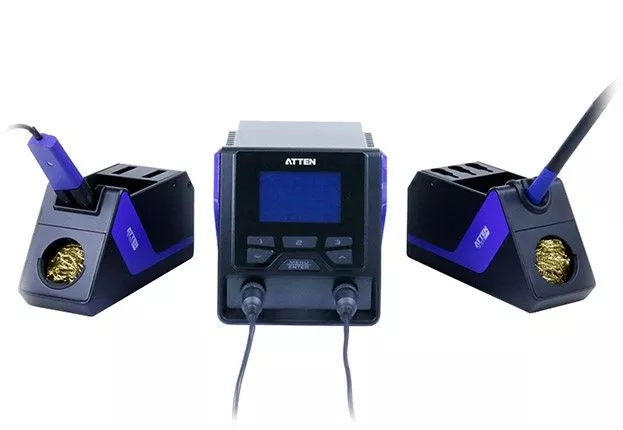

The Atten GT-6200 soldering station has two channels, each of which can be used to connect a soldering iron. In single-channel operation, the maximum power is 150 watts. In two-channel operation, a total power of 200 watts can be accessed via both channels. The unit is supplied with suitable PC software for control and is equipped with a large user-friendly display. The soldering station automatically lowers the temperature to 150°C when not in use. This allows for a longer lifetime of the soldering tip. Three different soldering temperatures can be easily programmed individually and can be called up directly by pressing the corresponding selection button. As an additional feature, a timer can be set for (1-120 minutes), whereby the unit automatically goes into standby mode or switches off.
The soldering station is supplied with 2 separate soldering iron holders. With the high power, the soldering tips heat up very quickly, and the high temperature stability (2°C) enables very precise work.
Features
- 2 channels for simultaneous soldering iron use
- Software for control via PC
- compatible with different types of soldering tools
- Maximum power is 200 W
- Intuitive menu navigation through large silicone buttons
- Display of parameter data as well as information in the form of a graphic display on a large screen
- Automatically recognises the soldering tools connected and calculates the corresponding parameters.
- 3 adjustable temperatures available at the touch of a button
- Very fast heat-up: from room temperature to 350 °C only approx. 5 s
- Internally heated soldering tip, fast and efficient heat transfer to the entire soldering tip
- High-contrast multifunctional LC display for status and programming indication
- Bar display for checking readiness for operation
- Soldering iron with flexible connecting cable
- Soldering tip temperature freely selectable between 150 °C and 480 °C
- Precise temperature calibration possible, calibration range ± 50 °C
- Temperature stability: ± 2 °C (without load / MCU-controlled temperature calibration)
- Temperature adjustment possible in 5-degree or 1-degree steps
- Automatic, adjustable temperature setback to 150 °C (1-120 min) during soldering breaks
- Protection against adjustment of the soldering tip temperature
- Warning in case of equipment malfunction
- ESD-safe design, low-voltage heating completely separated from power supply
- Freely adjustable soldering iron holder
- High-quality four-wire heating element with silver alloy for fast heating up
- Intelligent detection of working or non-working status.
Technical Data
| Model |  GT-6200 |
|---|---|
| Power | 200 Watt |
| Temperature range | 150°C - 480°C |
| Temperature offset range | ±50°C |
| Temperature setting | 5 digits (standard) / 1 digit (fine-tuning) |
| Temperature stability | 2°C |
| Heating element | with silver alloy |
| ESD protection | ✓ |
| Earth resistance | < 2 Ohm |
| Earth potential | < 2 mV |
| Dimensions | 635 x 320 x 240mm |
| Weight | 4,9 kg |
| Channels | 2 |
| Power supply | 230 V / 50 Hz |
| RoHS | Compliant |
