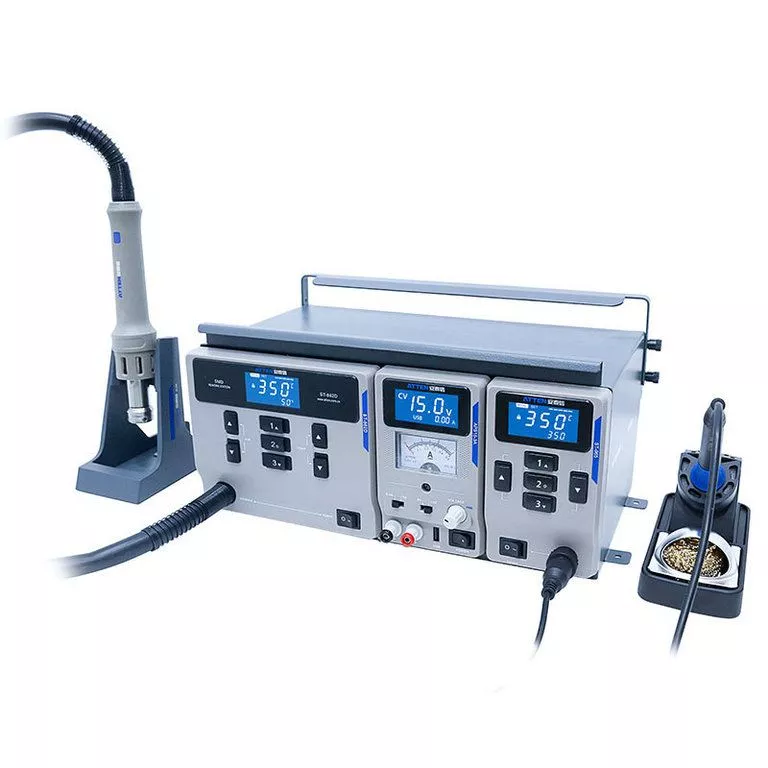

Atten MS300 3 in 1 Rework Station

The ATTEN MS300 3 in 1 Rework Station consists of a hot air station (ST-862D), a soldering station (ST-965), a laboratory power supply (APS15-3A).

€340.00*

Content: 1
  • 2.5% advance payment discount

In Stock, Delivery time: 1 - 3 days

Further information
Request a quote
Paypal-icon
Mastercard-icon
visa-icon
klarna-icon
Sepa-lastschrift-icon
invoice-icon
Product number: MS300
Manufacturer: Atten

Description

The ATTEN MS300 3 in 1 rework station consists of a hot air station (ST-862D), a soldering station (ST-965), a laboratory power supply (APS15-3A) and a rack kit for transport and installation.

ATTEN ST-862D hot air station

The ATTEN ST-862D hot air soldering station is a unit with 1000 watts of power, which allows the station to reach operating temperature very quickly. The temperature can be set manually between 100 and 480 degrees °C or set to one of three user-defined temperatures with the push of a button. The device has an adjustable flow rate (max. 120 L/min). Temperature and volume flow as well as a variety of built-in functions such as an auto-sleep function can be regulated with the silicone buttons. In addition, the system has an overheating protection system as well as a good cooling system that allows it to run for a very long time.

Soldering station ST-965

The Atten ST-965 soldering station has a high-quality heating element with 65 watts of power. The ST-965 is equipped with a user-friendly display. The soldering station automatically lowers the temperature to 200°C when not in use. This allows for a longer life of the soldering tip. Three different soldering temperatures can be easily programmed individually and called up directly by pressing the corresponding selection button.

The soldering station comes with a soldering iron holder. With 65 watts of power, the soldering tip heats up very quickly, and the high temperature stability (2°C) also enables very precise work. The soldering station comes with a round soldering tip with a diameter of 0.2 mm. You can see more soldering tips under accessories.

Laboratory power supply APS15-3A

The APS15-3A is an adjustable laboratory power supply with a maximum output power of 56W. The voltage can be adjusted between 0-15 V in fine steps. The current can be switched between 0.5 and 3A with a switch. The device has an LCD screen and an analogue display. The APS series power supply is designed to meet the needs of communications maintenance technicians, educators and developers. The product uses a series-type regulated voltage scheme with the best current stability and is controlled by a digital MCU chip. It is characterized by very high stability and low residual ripple, simple operation and control, and a large number of protective functions. It is particularly suitable for use in the communications industry.

Features ST-862D hot air station

  • Patented heater for rapid heating
  • Switchable between target and actual temperature.
  • Intelligent cooling system and delayed shutdown function to extend the life of the handpiece.
  • LCD screen for visualization of the control.
  • Temperature adjustment protection, automatic time-controlled switch-off.
  • MCU controlled temperature calibration, constant work compensation.
  • High airflow with brushless fan.
  • Convertible with Straight Air and Spiral Air.
  • Auto sleep function.
Atten ST-862D Heißluftstation
Atten-ST-965-Soldering-Station

Features ST-965 Soldering Station

  • Max. power of 65 W, soldering iron 28 V AC
  • Very fast heating: from room temperature to 350 °C in only approx. 10 s
  • Internally heated soldering tip, fast and efficient heat transfer to the entire soldering tip
  • Checking the readiness for operation by means of a bar display
  • Soldering tip temperature freely selectable between 200 °C and 450 °C
  • Exact temperature calibration possible, calibration range ± 50 °C
  • Temperature stability: ± 1 °C (no load / MCU-controlled temperature calibration)
  • Temperature can be set in 5 degree or 1 degree increments
  • Automatic, adjustable temperature reduction to 200 °C (1–120 min) during soldering breaks
  • Protection against changing the soldering tip temperature
  • Acoustic feedback when a button is pressed (can be switched off)
  • ESD-safe design, low-voltage heater completely isolated from the power supply

Features APS15-3A Power Supply

  • Digital control, series setting mode control, low ripple, low noise and high stability.
  • Suitable for use for communication devices.
  • Fast dynamic load response speed, optimized processing for communication devices.
  • The product is equipped with a shutdown self-recovery protection function and an over-temperature protection function.
  • Independent 5V USB interface that provides 2.1A current output capability, with overcurrent and short circuit protection.
  • Voltage and current can be switched in 2 stages to adapt to different devices, the voltage can be adjusted dynamically.
  • Built-in automatic voltage response adjustment function, which may be more suitable for full-load use.
  • The digital encoder adjusts the voltage and can switch between coarse adjustment and fine adjustment for more precise control and longer device life.
  • Output setting locking function, alarm function, which can effectively prevent wrong operation.
  • Intelligent fan control is automatically controlled according to the temperature of the internal power supply.
Atten APS15-3A Labornetzgerät

Productvideo

APS15-3A Overview
ST-965 Overview
ST-862D Overview

Technical Data

ModelAtten-ST-965-klein
ST-965
Power65 Watt
Temperature range150°C - 450°C
Temperature offset range±50°C
Temperature setting5 digits (Default)/1 digit (Fine-tuning)
Temperature stability1°C
Heating elementSilver alloy heater
SicherheitslevelKlasse 1 (Steuerung) Klasse 3 (Zubehör des Lötgriffs)
ESD Safe
Earth resistance< 2 Ohm
Earth potential< 2 mV
Dimensions168 x 110 x 95mm
Weight2.1 Kg
Channels1
Voltage230 V / 50 Hz
RoHSConform
Device SpecificationAtten ST-862D Heißluftstation small
ST-862D
Power1000 watt
Temperature range100℃ - 480℃
Temperature Accuracy (outgoing air)35℃
Flow rate (air)120 L/min (max) | 30 L /min (min)
Flow rate setting range10% - 100%
Available temperature units°F / °C
Standby cooling functionYes
Error detectionShort circuit / missing heating element / overheating
Beep alarm functionAvailable
Quick access3 user-defined temperatures and flow rates
Temperature compensation50°C
Heating statusDisplay on LCD display
Timing function20s to 600s (adjustable)
Temperature setting10 digits / 1 digit (fine adjustment)
Flow rate setting2 digits / 1 digit (fine adjustment)
Volume<52dB(A)
Operating temperatur0℃~40℃
ModelAtten-APS15-3A-klein
APS15-3A
Input VoltageAC 240V/230V/220V/110V/120V
Output Voltage0-5V / 0-15V (dual steps)
Output Current0,5A / 3A (dual steps)
Output Power56 W (including USB output Interface)
Ripple & NoisecV ≤ 0,5mVrms
Line RegulationcV ≤ 0,01% + 3mV
Load RegulationcV ≤ 0,01% + 8mV
Read Back Accuracy0.5 ± 2 digits (Display) / Class 2.5 (Current Pointer Class)
Protection FunctionOCP (support automatically recover) / OHP
Other FunctionsCoarse tuning / fine tuning switch 5V / 15 V switch / 0,5 A- 3A switch and parameter locking
USB InterfaceFixed 5V Output (±5%) maximum 2.1A output (overcurrent protection, stop outputting)
Heat-dispassing methodSmart fan control
working conditionTemp.: 0-40°c
RoHSConform
