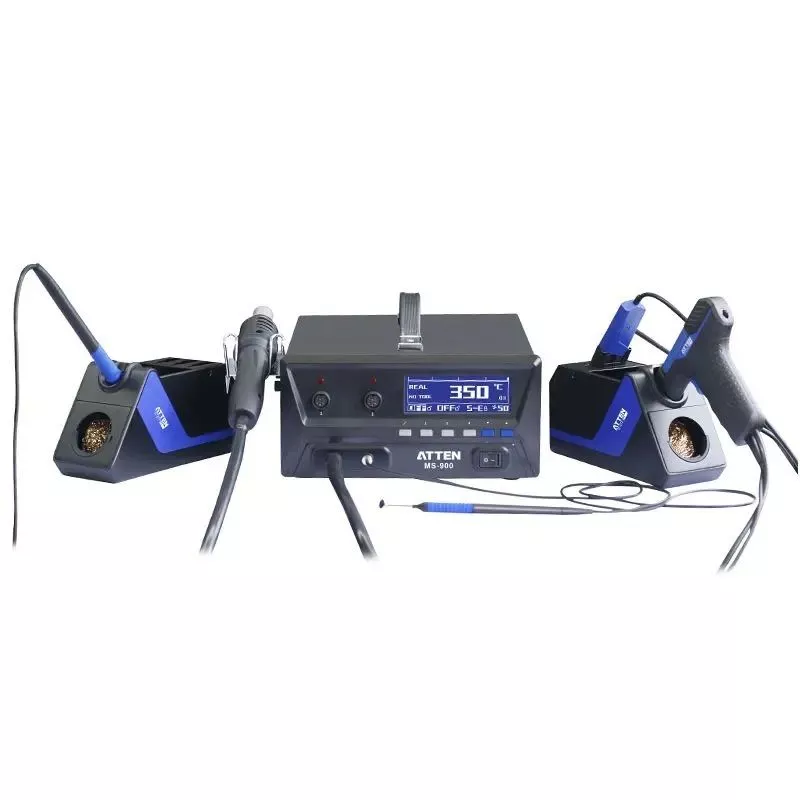

Atten MS900 4 in 1 Rework Station

Product number: MS-900

The ATTEN MS900 4 in 1 Rework Station includes a hot air station, a soldering station, a laboratory power supply & electronic tweezers

Volume discounts on request!

€650.00 Net

€773.50 incl. VAT

% €927.01* (16.56% saved)

Delivery time: 3-4 weeks

Content: 1

VAT included.

2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.

Shipping & Payment

Further information

Product configuration

4002 PCBite mounting kit (A5 base plate)

€70.21*

4002 PCBite mounting kit (A5 base plate)

€70.21*

MS900 4 in 1 Rework Station

Offer

Description

The ATTEN MS900 4 in 1 rework station includes a hot air station, a soldering station, a laboratory power supply, electronic tweezers and a rack kit for transport and installation.

Hot air system

The MS900 has an intelligent cooling system. It can automatically delay the air supply when the power is turned off, greatly extending the life of the heater core and holder. A spiral heating core is used, which contributes to a longer service life. The hot air gun holder has been redesigned to make the air more even. In addition, the resistance has been increased enormously, which makes maintenance, storage and transport easier.

Soldering System

The soldering station uses a split heater core material that allows for heat conduction and extremely high temperature recovery speed. It only takes 10 seconds from room temperature to 350°C. The front sensor enables high accuracy of temperature control and high temperature stability. The soldering iron handle holder is lightweight and comfortable.

Desoldering System

The desoldering station heating core uses a 24VDC low-voltage power supply and a safe and reliable isolation output of the main power transformer. Built-in vacuum pump with powerful suction.

Electronic tweezers

The heating core of the electronic tweezers uses a 12VDC low voltage power supply and a safe and reliable main transformer isolation output.
The front sensor enables high temperature control accuracy and high temperature stability.

Productvideo

MS900 Overview

Technical Data

System	Hot Air System	Soldering System	Desoldering System	Eletronic tweezers
Power	550 W, Fan 25 W	130 W	150W / Vacuum Pump 15W	100W
Output voltage	=Input	24VDC	24VDC	12VDC
Temperature range	150 - 500°C	150 - 500°C	150 - 500°C	150 - 500°C
Standby Time	NA	1 - 120 Minutes	1 - 120 Minutes	1 - 120 Minutes
Volume flow(max)	23 L/min	NA	NA	NA
Noise	<52dB(A)	NA	NA	NA
Temperature for calibration	-50~+50℃	-50~+50℃	-50~+50℃	-50~+50℃
Password lock	Available	Available	Available	Available
Temperature stability	5°C	2°C	2°C	2°C
Earth resistance	2 Ohm	2 Ohm	2 Ohm	2 Ohm
Earth potential	< 2mV	< 2mV	< 2mV	< 2mV
