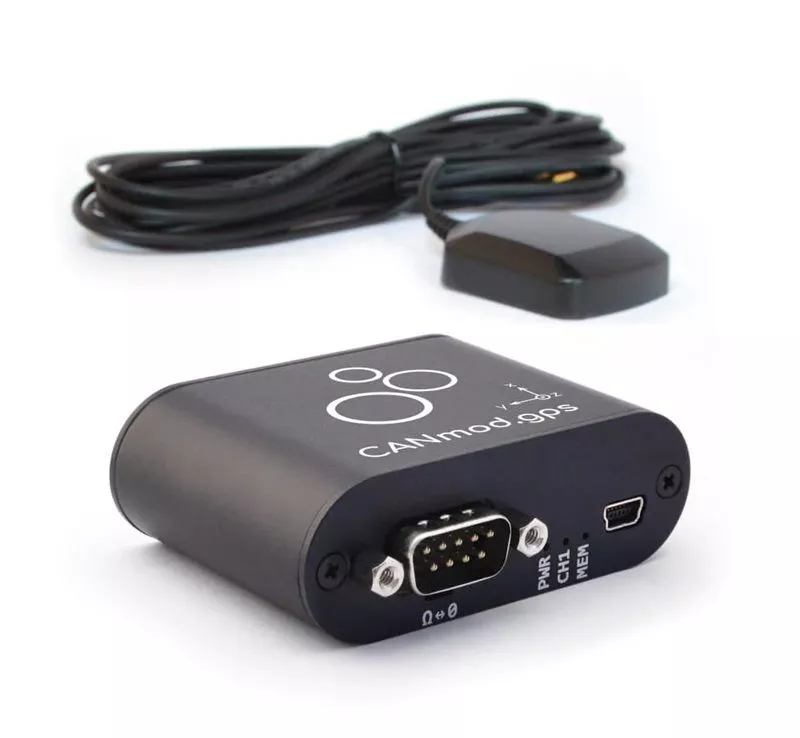

The CANmod.gps generates GNSS position and 3D inertial data and outputs it via configurable CAN bus frames.
Volume discounts on request!
€230.00 Net
€273.70 incl. VAT
Shipping country
Customer Group
Währung
In Stock, Delivery time: 1 - 3 days
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 2-year warranty
Product configuration
Description
This standalone GPS-to-CAN module generates GNSS position and 3D inertial data (via a gyroscope and accelerometer) and outputs it via configurable CAN bus frames.
The module supports “Untethered Dead Reckoning” – this means that even in the event of a complete loss of the GNSS signal, the module can provide continuous positioning through IMU-based estimates (no external inputs required).
You can integrate the module into any CAN bus, such as vehicle networks or CAN hardware. For example, you can use it as a plug-and-play add-on module for the CANedge.
Features
PLUG
Standalone – no PC required. Integrate it into any CAN bus to add GNSS/IMU data. DBC included.COMPACT
Only 7 x 2 x 5 cm. 70g. Aluminum housing. 4 LEDs. 5-26 V DC via DB9. USB for configuration/firmware/streaming.DEPLOY GLOBALLY
1 Hz GNSS position. Warm start via battery backup. GPS, Galileo, BeiDou, GLONASSInertial data
Built-in gyroscope (roll, pitch, yaw) and accelerometer (X, Y, Z). 100 Hz frequencySENSOR FUSION
High-precision position and orientation data through sensor fusion of the GNSS/IMUCONFIGURABLE
Configure CAN IDs, bitrate, data frequency and geofences via JSON configuration and GUI.
Add GNSS/IMU data to any CAN bus system
With CANmod.gps you can easily add position and 3D inertial data to your CAN bus – e.g. for use by control units or CAN hardware.
- Compatible with any high-speed CAN bus (2.0A, 2.0B)
- Fully configure CAN IDs, bit rate, and message frequency
- Power supply with 5–26 V DC via standard DB9 adapter cable
- Optionally, you can record the data via any CAN interface/logger/...
- Example: Use as an add-on for the CANedge (power supply via 2nd port)
- Included DBC file for easy decoding into a human-readable format
- Optionally, stream sensor data via USB in real time.
- White label, for example, for integration into your production
Example: Adding GNSS/IMU data to CANedge log data
Easily extend your CAN/LIN data from CANedge2 with GNSS/IMU information by connecting the CANmod.gps to the 2nd port.
Check out the online playground with OBD2 + GNSS/IMU data
– or learn more in our intro!
GPS and 3D IMU – Enrich your data
GPS and 3D-IMU allow the following functions and data to be used and recorded.
Position + Sensor Fusion : Add time-synchronized GPS positioning to your CAN/LIN data – with sensor fusion (UDR) for 3x higher accuracy.
Speed data is useful, for example, in fleet telematics for determining speeding violations, idling times, plant utilization, and more.
Altitude is crucial, e.g. for analyzing fuel/battery consumption – or e.g. in aerospace applications such as drones, airplanes, etc.
Tilt: The GNSS/IMU enables position data and provides a 3D view of the plant orientation at any time [Automotive].
Travel distance odometer data enables easy tracking of the distance traveled by the system (since the module was last switched on and off).
Angular velocities and 3D IMU angle rates can be used, for example, for the analysis of driving and vehicle dynamics (tires/suspension, drifting, etc.).
Acceleration rates from 3D-IMUs can be used, for example, for analyzing ride quality and predictive maintenance.
Configurable circular geofences are useful for, e.g., theft prevention, security, automation, and more.
Timestamp The highly precise epoch timestamp is useful, e.g., for synchronizing the CANedge real-time clock.
Technical Data
| Model specification |  CANmod.gps |
|---|---|
| Functionality | The configurable device generates GNSS/IMU data and outputs it via CAN bus and/or USB. |
| Included | CANmod.gps module, u-blox GPS antenna and USB dust cover (mini-USB adapter not included) |
| Firmware | Supports free firmware updates via USB for adding features |
| Construction | Configuration files based on the popular open-source -JSON schema concept (similar to the CANedge) |
| software | Free open-source Editor tool For easy device configuration (offline/online version available) |
| Security | CE, FCC, IC and RoHS certified (certificates can be found in the documents) |
| guarantee | 1 year warranty |
| Support | Free, fast and high-quality support |
| Origin | Denmark |
| module | Professional u-blox NEO-M8U (72-channel) sensor with integrated gyroscope and accelerometer |
| GNSS | Supports (combinations of) GPS (USA), Galileo (Europe), BeiDou (China), GLONASS (Russia) |
| Geofences | Supports 0-4 configurable circular geofences (status is sent via CAN bus) |
| Sensor fusion (UDR) | Improved positional accuracy through sensor fusion ( UDR ) of GNSS and 3D-IMU (automobiles only) |
| Acquisition | Cold starts: 26 s | Supported starts: 3 seconds | Resumption: 1 s |
| sensitivity | Tracking/Navigation: 160 dBm | Cold starts: 148 dBm | Hot starts: 157 dBm |
| Battery backup | The module has a backup battery to enable "assisted starts" (3 seconds) between power cycles. |
| accuracy | Position: 2.5 m CEP (circle error likely) Course: 1 degree (50% at 30 m/s) Speed: 0.05 m/s (50% at 30 m/s) |
| CAN signals | The module communicates multiple GNSS/IMU signals (a complete list can be found in the documentation or in the DBC file). GNSS position: Longitude and latitude information [1 Hz] GNSS time: Precise GNSS-based epoch timestamp [1 Hz] GNSS status: Fix type (NO/UDR/2D/3D/GNSS+UDR) and number of satellites [1 Hz] GNSS speed: Travel speed in meters/second [1 Hz] GNSS altitude: Altitude readings in meters [1 Hz] GNSS position/orientation: Roll, pitch, heading [1 Hz] GNSS odometer: Distance traveled (since power-on and total) [1 Hz] 3D-IMU: Gyroscope-based angular velocity (X, Y, Z) and accelerometer-based acceleration (X, Y, Z) [100 Hz] Geofences: Status of configured geofences [1 Hz] |
| Channels | 1 x CAN channel |
| Modes | The device can either send the data to the CAN bus or provide it on request. |
| standard | ISO 11898: Compliant with CAN (up to 1 Mbit/s) |
| Identifiers | Compliant with CAN specifications 2.0A (11-bit ID) and 2.0B (29-bit ID) |
| termination | The termination can be switched via the switch below the DB9 connector. |
| Further distribution | Retransmission of frames that have lost arbitration or were disrupted by errors. |
| Transceiver protection | Protection: +/- 25 kV HBM ESD, +/- 12 kV IEC ESD, +/- 14 V bus fault, short circuit Common-mode input voltage: +/-12 V TXD-dominant timeout (prevents network blocking in case of error) |
| Bitrate | Choose between standard bitrates (5K to 1M) or use custom bit timing. |
| Activate/deactivate | Activate/deactivate each CAN message individually |
| Identifier matching | Configure CAN IDs individually for all messages (11-bit or 29-bit) |
| Push/Poll mode | Configure individual "trigger" modes for all messages (push or poll). |
| frequency | Customize the pre-scaling of standard message frequencies to lower rates. |
| IMU correction | Optionally compensate for the module's orientation within the IMU configuration. |
| Entrance care | +5V to +26V DC via the DB9 connector (power supply via pin 1 or pin 9) Alternative power supply via USB (for updating firmware/configuration or for streaming data in real time). |
| Energy consumption | Extremely low (<1 W) – No risk of battery discharge |
| Protection | Reverse polarity protection of the CAN bus power supply Protection against transient voltage events on supply lines |
| Case and weight | Compact aluminum housing: 52.5 x 70.0 x 24.5 mm (L x W x H) excl. Antenna, 70 grams |
| connector | 1 x Standard D-Sub 9 connector (DB9). |
| Pin assignment | Information on the pin assignments of the DB9 connector can be found in the product manual. |
| USB | Standard mini-USB port for configuration/firmware updates and streaming (USB cable not included) |
| LEDs | Module status via 4 external LEDs: Power, CAN bus, memory, GNSS |
| temperature | Operating temperature (parts): -25 °C to +70 °C |
| IP rating | IP protection class 40 |
| Assembly | The module can be attached, for example, with robust double-sided adhesive tape, cable ties, or a Mounting bracket can be mounted |
| GPS antenna | u-blox ANN-MS-0-005 (SMA connector, 5 m cable, magnetic base, -40 to +85 °C, 48 x 40 x 13 mm) |
