The Micsig CP2100A probe has two optional measurement ranges of 10 A and 100 A at a bandwidth of 800 KHz.
€223.00*
Content: 1
- 1 year warranty
Free shipping
In Stock, Delivery time: 1 - 3 days
More Information
Product number: CP2100A
Manufacturer: Micsig
Description

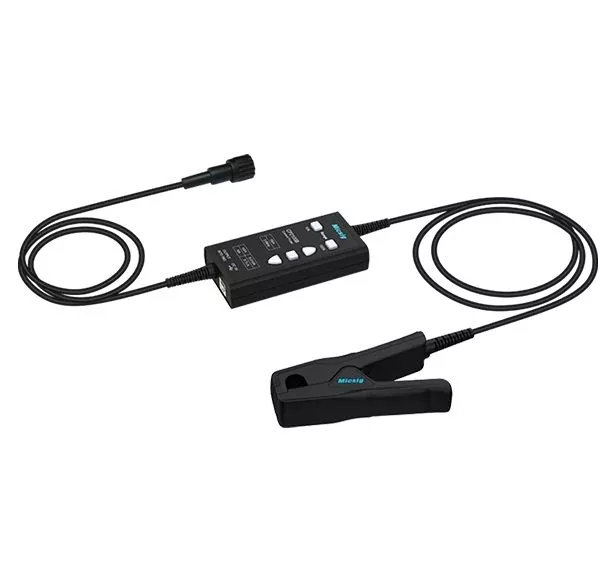

The Micsig CP2100A current probe can measure both DC and AC current and has a small and compact design. The probe uses a standard BNC interface for oscilloscopes or a multi-connector for adapters. The maximum current that can be measured is 100 Apk and the bandwidth is DC ~ 800KHz. The probe has two optional measurement ranges of 10A and 100A. In addition, the probe has automatic and manual zeroing and USB power supply.
Technical Data
| Model specification |  DP10013 |
|---|---|
| Bandwidth | 100 MHz |
| Channels | 1 |
| Rise time | 3,5 ns |
| Damping | x50, x500 |
| Total area (DC+ACpp) | 130 V (50x) 1300 V (500x) |
| Max. Input voltage (compared to ground) | 1000 V, CAT I |
| CMRR | > 80 dB (DC) > 60 dB (100 KHz) > 50 dB (1 MHz) |
| Output voltage | ≤ 3 V |
| Energy supply | USB (5V), 0,85 W |
| Cable lengths | Input: 60 cm Output: 90 cm |
| Dimensions | 145 x 60 x 27 mm |
| Model comparison |  CP2100A | CP2100B |
|---|---|---|
| Rise time | ≤437.5ns | ≤140ns |
| Sections | 10A / 100A | 10A / 100A |
| Bandwidth | 800KHz | 2,5 MHz |
| Output sensitivity | 0.1V/A (10A) | 0.1V/A (10A) 0.01V/A (100A) |
| DC-Accuracy | 3%±50mA (10A) | 3%±50mA (10A) 4%±50mA(100A,500mA~40Apk) 15%(100A,40Apk~100Apk) |
| Signal delay | ＜150ns(10A) | ＜150ns(10A) ＜200ns(100A) |
| Current measuring range | 50mA~10Apk(10A) | 50mA~10Apk(10A) 1A~100Apk(100A) |
| Maximum measurable current | 100Apk,70.7Arms(DC+ACpk) | 100Apk,70.7Arms(DC+ACpk) |
| Maximum working voltage | CAT Ⅲ 300V CAT Ⅱ 600V | CAT Ⅲ 300V CAT Ⅱ 600V |
| Maximum float voltage | CAT Ⅲ 300V CAT Ⅱ 600V | CAT Ⅲ 300V CAT Ⅱ 600V |
| Maximum conductor diameter | 13mm | 13mm |
| Overload indicator | ✓ | ✓ |
| Power supply | DC5V | DC5V |
