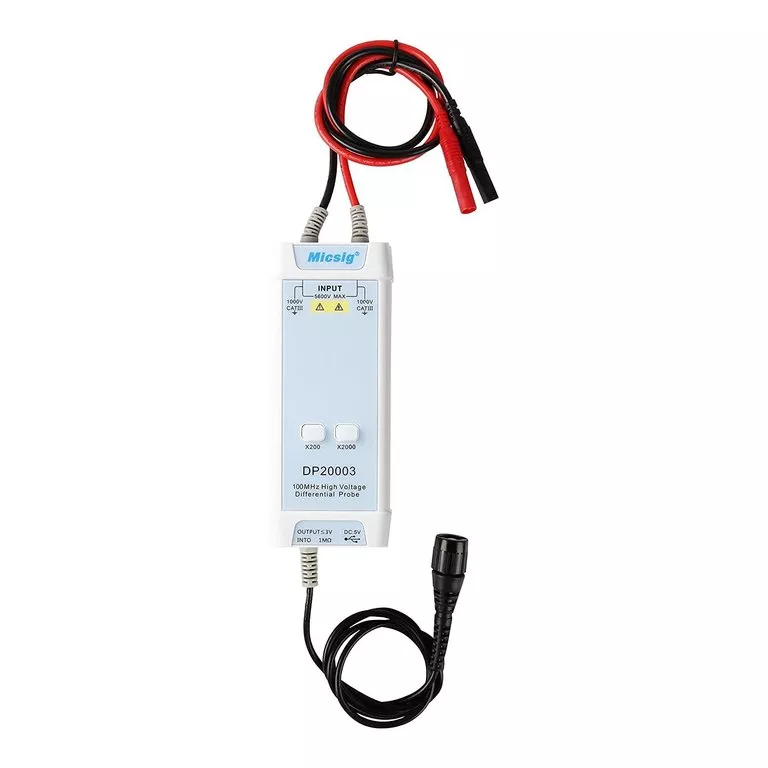

Micsig DP20003 High Voltage Differential Probe

The Micsig DP20003 offers a bandwidth of 100 MHz and a measurement range up to 5600 V.
Product is discontinued
  • 1 year warranty
  • 2.5% advance payment discount
Free shipping

No longer available

Further information
Model
Paypal-icon
Mastercard-icon
visa-icon
klarna-icon
Sepa-lastschrift-icon
invoice-icon
Product number: DP20003
Manufacturer: Micsig
  • This product has been discontinued by the manufacturer

Description

The Micsig DP20003 offers a bandwidth of 100 MHz and a measurement range up to 5600 V. Variable attenuation completes the package.

With the specifications that this probe offers, it allows a wide range of use. This combined with a low price makes the probe unique among the competition.

The probe is powered by a USB port, which makes it more portable since almost all oscilloscopes offer an external USB port. This eliminates the need for a separate power brick. A wide range of clamps and clips are included for measurements.

Productvideo

DP Probe Series - Overview

Technical Data

Model specificationDP20003-micsig-small
DP20003
Bandwidth100 MHz
Channels1
Rise time3,5 ns
Attenuationx200, x2000
Total area (DC+ACpp)560 V (200x)
5600 V (2000x)
Max. Input voltage (compared to ground)1000 V, CAT I
CMRR> 80 dB (DC)
> 60 dB (100 KHz)
> 50 dB (1 MHz)
Output voltage≤ 3 V
Power supplyUSB (5V), 0,85 W
Cable lengthsInput: 60 cm
Output: 90 cm
Dimensions145 x 60 x 27 mm
Model comparisonDP20003-micsig-small
D10007
DP750-1-micsig-hochspannungssonde-small
DP750-100
DP20003-micsig-small
DP10013
DP20003-micsig-small
DP20003
Max. Voltage±700 V in 100:1 mode±750 V in 500:1 mode±1300 V at 500:1 Mode±5600 V at 2000:1 Mode
Attenuation10:1, 100:150:1, 500:150:1, 500:1200:1, 2000:1
Bandwidth100 MHz100 MHz100 MHz100 MHz
