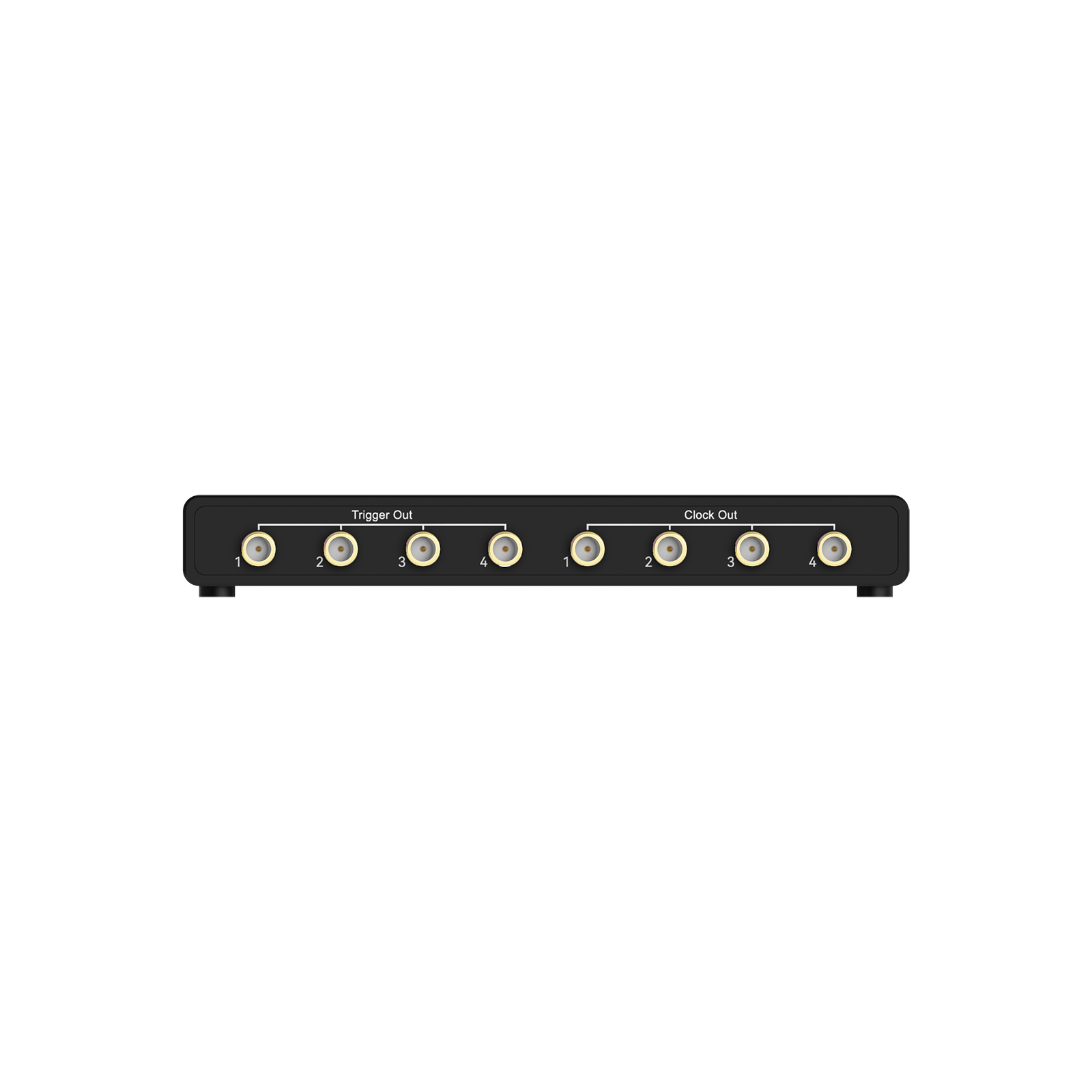

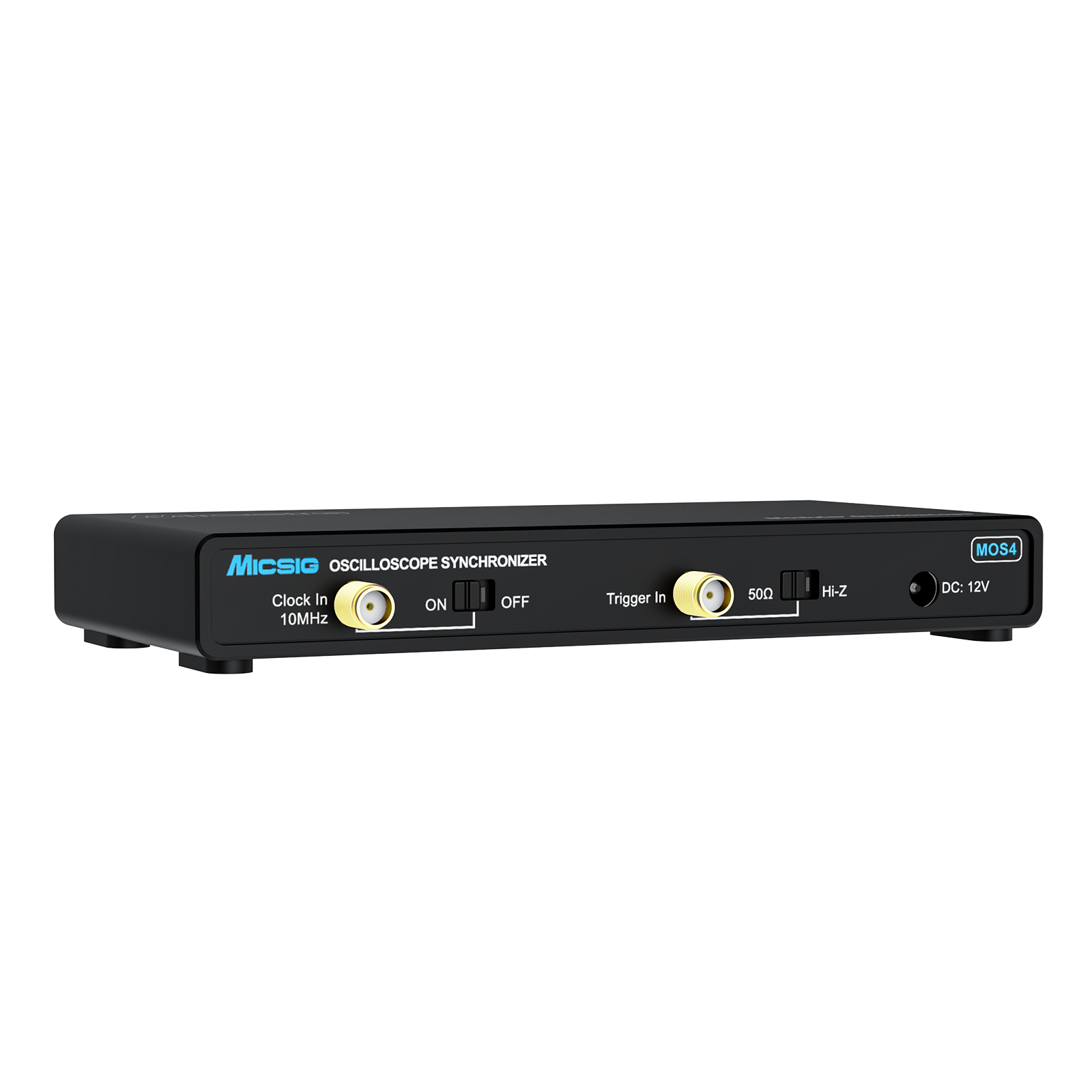

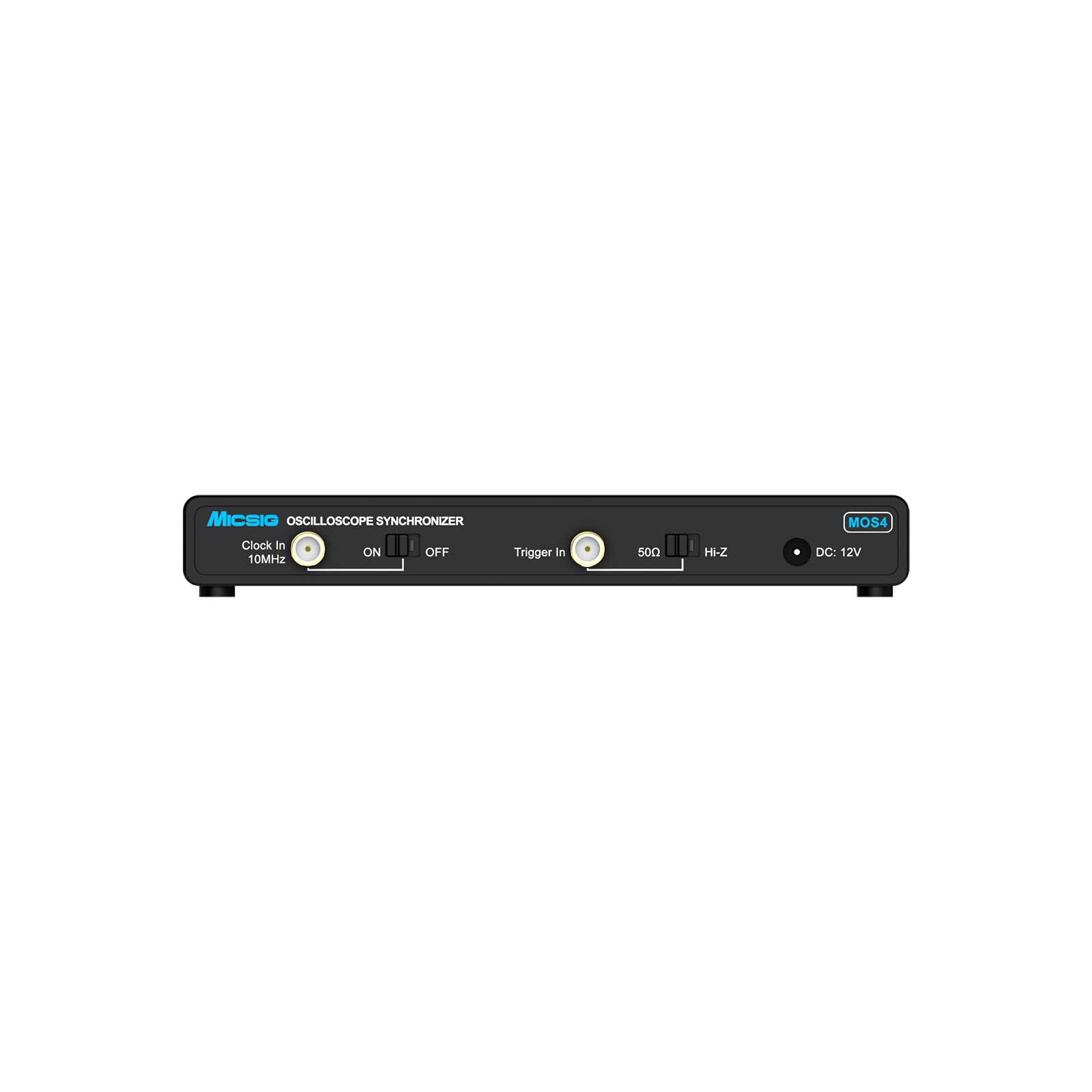

Micsig MOS4 oscilloscope synchronizer for precise synchronization of up to 4 oscilloscopes with 10 MHz clock, trigger distribution and
Volume discounts on request!
€305.00 Net
€362.95 incl. VAT
Shipping country
Customer Group
Währung
In Stock, Delivery time: 1 - 3 days
Content: 1
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 1 year warranty
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Free shipping
Description
The Micsig MOS4 supports measurement tasks where multiple oscilloscopes need to operate simultaneously – for example, in the analysis of fast digital circuits, mixed-signal applications, or the verification of radar and communication systems. Thanks to the shared 10 MHz clock and trigger distribution, up to four oscilloscopes, or 16 channels, can be acquired synchronously.
Features
- Switch between 50Ω and High-Z
- Time deviation < 100ps
- Up to 4 oscilloscopes can be synchronized
| parameter | Signal / Type | specification |
|---|---|---|
| Trigger out | Single pulse | Output range 1.55V-1.65V, typically 1.6V |
| Trigger in | Single pulse | Minimum input voltage 500 mV, range -5 V~5 V, 50 Ω or High-Z load |
| Clock out | 10 MHz square wave | Output range 430mV-470mV, typically 450mV |
| Clock in | 10 MHz square wave | Minimum input voltage 500 mV, range -5 V~5 V, 50 Ω load |
| Overshoot | < 10% | |
| power | 12 V DC / 1.5 A | |
| Connector | SMA | |
| Operating Temperature | 0 °C – 45 °C | |
| Storage Temperature | -20 °C – 70 °C | |
| ESD | ±8 kV | |
| Weight | 190 g ±10 g | |
| L × W × H | 132.4 mm × 77 mm × 18.7 mm |
