The OP1000-3 is a 1000X attenuation tip with 350 MHz bandwidth for the Micsig SIGOFIT fibre optic isolated series.
Volume discounts on request!
€299.00 Net
€355.81 incl. VAT
Shipping country
Customer Group
Währung
Delivery time: 1 week
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Free shipping
Further information
Description

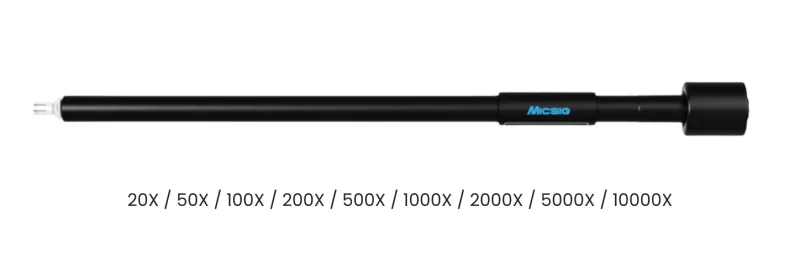

The OP1000-3 is a 1000X attenuation probe tip with 300 MHz bandwidth and a voltage range of ±500 V for the Micsig SIGOFIT fibre optic isolated series.
The probe tip is compatible with the MOIP100P, MOIP200P and MOIP350P models.
Specification attenuators
| Probe tip | Attenuation | Differential voltage range (MOIP100P) | Differential voltage range (MOIP800P) | Differential voltage range (MOIP200P/350P/500P/1000P) | Input impedance |
|---|---|---|---|---|---|
| OP10 | 1X/10X | ±1.25V / ±12.5V | ±0.5V / ±5V | NA | 3.75 MΩ / 6 pF |
| OP20 | 2X/20X | ±2.5V / ±25V | ±1V / ±10V | ±1V / ±10V | 4.47 MΩ / 4 pF |
| OP50 | 5X/50X | ±6.25V / ±62.5V | ±2.5V / ±25V | ±2.5V / ±25V | 4.19 MΩ / 2 pF |
| OP100 | 10X/100X | ±12.5V / ±125V | ±5V / ±50V | ±5V / ±50V | 4.10 MΩ / 2 pF |
| OP200 | 20X/200X | ±25V / ±250V | ±10V / ±100V | NA | 9.03 MΩ / 2 pF |
| OP500 | 50X/500X | ±62.5V / ±625V | ±25V / ±250V | NA | 20.98 MΩ / 1 pF |
| OP1000 | 100X/1000X | ±125V / ±1250V | ± 50V / ± 500V | ±50V / ±500V | 20.94 MΩ / 1 pF |
| OP2000 | 200X/2000X | ±250V / ±2500V | ± 100V / ± 1000V | ± 100V / ± 1000V | 20.52 MΩ / 1 pF |
| OP5000 | 500X/5000X | ±625V / ±6250V | ± 250V / ± 2500V | ± 250V / ± 2500V | 40.82 MΩ / 2.4 pF | 40.92 MΩ / 1 pF |
| OP10000 | 1000X/10000X | N.A. | ± 500V / ± 5000V | ± 500V / ± 5000V | 40.82 MΩ / 2.4 pF |
