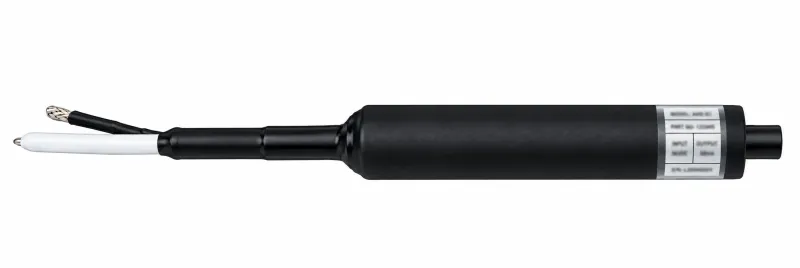

The OP5000-RF is attenuation tip with 50 MHz bandwidth for the Micsig SIGOFIT fibre optic insulated series.
Volume discounts on request!
€1,299.00 Net
€1,545.81 incl. VAT
Shipping country
Customer Group
Währung
Delivery time: 1 week
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Free shipping
Further information
Description
The OP5000-RF is an attenuation probe tip with 300kHz to 50MHz bandwidth and a voltage range upto ±5000 V for the Micsig SIGOFIT fibre optic isolated series.
The other probe tips are available in 20X, 50X, 100X, 200X, 500X, 1000X, 2000X, 5000X, 10000X, 20000X, 30000X, and 40000X attenuation and in 200 MHz, 350 MHz, 500 MHz and 1 GHz bandwidth versions.
Standard Attenuators
| Probe tip | Attenuation | Differential voltage range (MOIP200P/350P/500P/1000P) | Input impedance |
|---|---|---|---|
| OP20 | 2X/20X | ±1V / ±10V | 4.47 MΩ / 4 pF |
| OP50 | 5X/50X | ±2.5V / ±25V | 4.19 MΩ / 2 pF |
| OP100 | 10X/100X | ±5V / ±50V | 4.10 MΩ / 2 pF |
| OP200 | 20X/200X | ±10V / ±100V | 9.03 MΩ / 2 pF |
| OP500 | 50X/500X | ±25V / ±250V | 20.98 MΩ / 1 pF |
| OP1000 | 100X/1000X | ±50V / ±500V | 20.94 MΩ / 1 pF |
| OP2000 | 200X/2000X | ± 100V / ± 1000V | 20.52 MΩ / 1 pF |
| OP5000 | 500X/5000X | ± 250V / ± 2500V | 40.82 MΩ / 2.4 pF | 40.92 MΩ / 1 pF |
| OP10000 | 1000X/10000X | ± 500V / ± 5000V | 40.82 MΩ / 2.4 pF |
Ultra-High Voltage Attenuators
| Probe tip | Attenuation | Differential voltage range (MOIP200P/350P/500P/1000P) | Input impedance |
|---|---|---|---|
| OP20000 | 2000X/20000X | ±1000V / ±10000V | 120 MΩ / 2 pF |
| OP30000 | 3000X/30000X | ±1500V / ±15000V | 180 MΩ / 1 pF |
| OP40000 | 4000X/40000X | ±2000V / ±20000V | 240 MΩ / 1 pF |
| OPRF5000 | 500X/5000X | ±250V / ±2500V |
