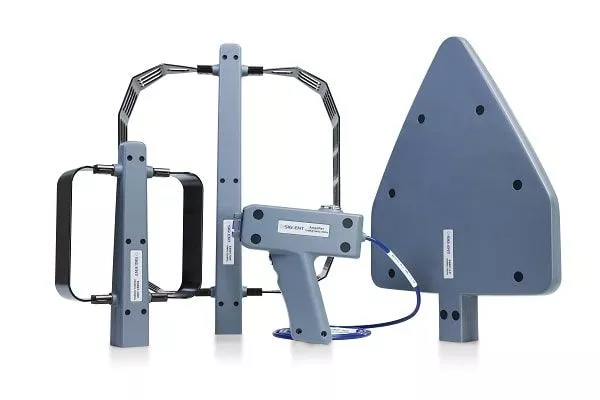

ANT-DA1 antenna set includes three different directional antennas and an amplifier handle.
Description
The ANT-DA1 antenna package includes three directional antennas with different frequency bands and a handle with integrated low-noise broadband amplifier and a rechargeable battery. The handle is equipped with two working modes "pass" and "gain" to improve the dynamic range of the received signal.
The antenna set includes the following:
- ANT-DA11 antenna (10 MHz ~ 200 MHz)
- ANT-DA12 antenna (200 MHz ~ 500 MHz)
- ANT-DA13 antenna (500 MHz ~ 8 GHz)
- Gain handle 12 dB at 1 GHz (typical)
Features
- 10 dB (typical value)
- SWR <1:1.9 (typical value)
- 50Ω/N type
- Polarisation direction horizontal and vertical
