The N-SMA-18L cable from Siglent has 18 GHz
€219.00*
Volume discounts on request!
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Free shipping
Delivery time 1 to 3 days
Further information
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Product number: N-SMA-18L
Manufacturer: Siglent
Description

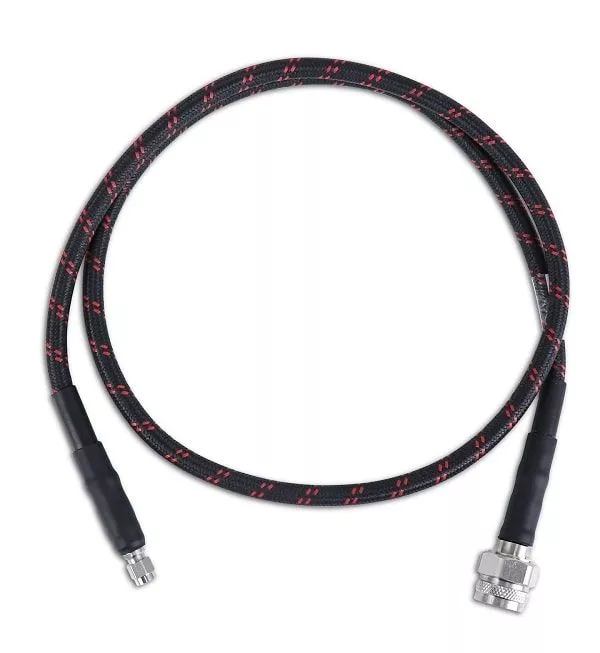

The Siglent N-SMA-18L is a 100 cm long cable with 18 GHz.
Technical Data
| Parameters | N-SMA-18L |
| Port 1 | N |
| Port 2 | SMA |
| Length | 1000 + 10 (mm) |
| Impedance | 50 Ω |
| Frequency range | DC - 18GHz |
| VSWR | < 1.35 to 18GHz |
| Phase Stability vs Bending | < 10° at 18 GHz (wrapped around a 50mm diameter mandrel) |
| Amplitude stability vs. bending | < 0.1dB at 18GHz (wrapped around a 50mm diameter mandrel) |
| Minimum bend radius | 50.8mm |
| Cable diameter (with armor) | 6.6mm |
| Temperature range (operation) | -40°C to 150°C |
