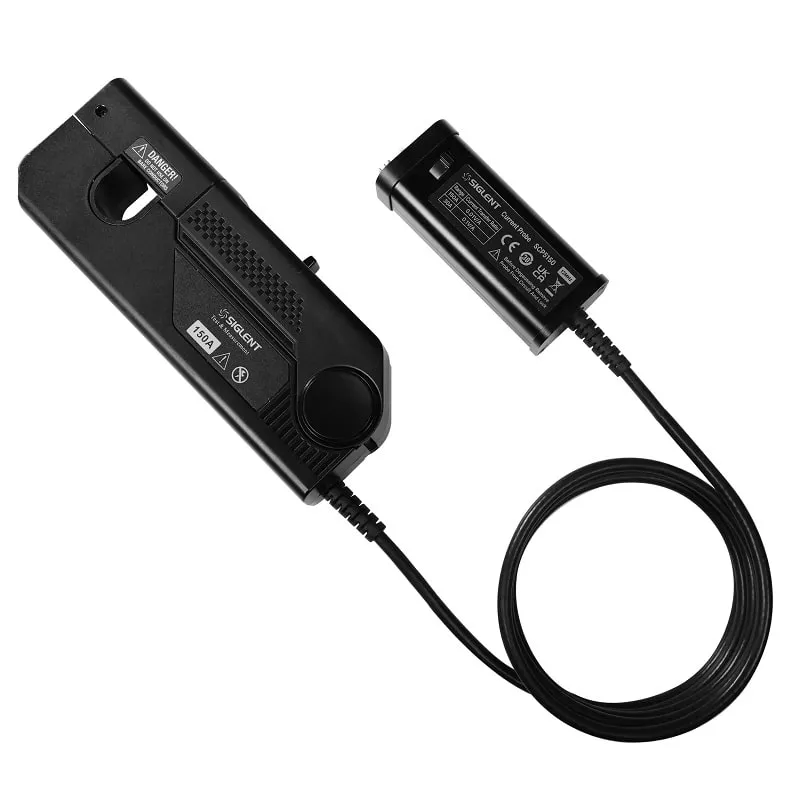

Siglent SCP5150 Current probe

Product number: SCP5150

Siglent SCP5150 current probe with a bandwidth of 12 MHz

Volume discounts on request!

€2,980.00 Net

€3,546.20 incl. VAT

Delivery time: 4 to 5 weeks

Probe

2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.

Free shipping

Further information

Offer

Description

The SCP5150 is a current probe with a bandwidth of 12 MHz. This probe has a rise time of ≤ 29 ns and a maximum current of 300 A.

Probe comparison	SCP5030	SCP5030A	SCP5150	SCP5500
Bandwidth	DC-50MHz	DC-100MHz	DC-12MHz	DC-2MHz
Rise time	≤ 7nS	≤ 3.5nS	≤ 29nS	≤ 175nS
Max. effective AC value	30 Arms	30 Arms	150 Arms	500 Arms
Peak-peak value	50 A	50 A	300 A	750 A
Operating range	5A(1X)/30A(10X)	5A(1X)/30A(10X)	30A(10X)/150A(100X)	75A(10X)/500A(100X)
overload value	5A(≥5A) 30A(≥50A)	5A(≥5A) 30A(≥50A)	30A(≥30A) 150A(≥300A)	75A(≥75A) 500A(≥750A)
Transfer rate	5A(1V/A) 30A(0.1V/A)	5A(1V/A) 30A(0.1V/A)	30A(0.1V/A) 150A(0.01V/A)	75A(0.1V/A) 500A(0.01V/A)
Measurement resolution	5A(1mA) 30A(10mA)	5A(1mA) 30A(10mA)	30A(10mA) 150A(100mA)	75A(10mA) 500A(100mA)
DC accuracy	5A(±1%±1mA) 30A(±1%±10mA)	5A(±1%±1mA) 30A(±1%±10mA)	30A(±1%±10mA) 150A(±1%±100mA)	75A(±1%±10mA) 500A(±1%±100mA)
Max. Rated voltage to earth	300V CAT I	300V CAT I	300V CAT III 600V CAT II	300V CAT III 600V CAT II
Cable diameter Max.	5mm	5mm	20mm	20mm
Power supply	Direct power supply by the oscilloscope via SAPBUS	Direct power supply from the oscilloscope via SAPBUS	Direct power supply from the oscilloscope via SAPBUS	Direct power supply from the oscilloscope via SAPBUS
Weight	270g	270g	475g	475g
