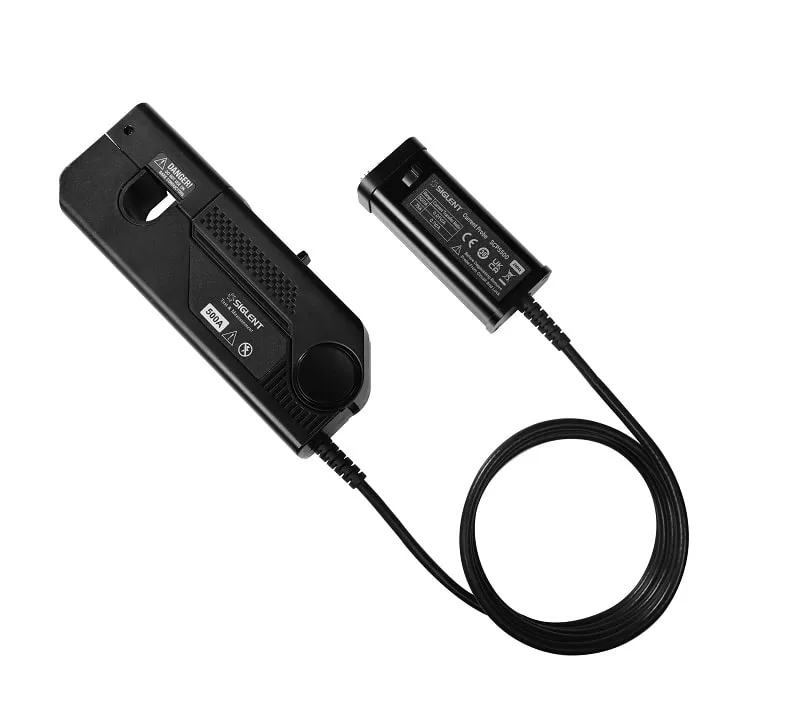

Siglent SCP5500 current probe with a bandwidth of 2 MHz
Volume discounts on request!
€4,680.00 Net
€5,569.20 incl. VAT
Shipping country
Customer Group
Währung
Delivery time: 5 to 6 weeks
Probe
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Free shipping
Complete your setup
Recommended services and accessories so the measurement setup is ready to use.
.jpg)
Ähnliche Kategorie
SDS5000HD-8BW3TA
Aus derselben technischen Kategorie.
.jpg)
Ähnliche Kategorie
SDS5000HD-4BW3TA
Aus derselben technischen Kategorie.
.jpg)
Hersteller
SMM3312X
Weitere passende Produkte vom selben Hersteller.
Hersteller
SDG8002A
Weitere passende Produkte vom selben Hersteller.
.png)
Hersteller
SDG8004A
Weitere passende Produkte vom selben Hersteller.
Description
The SCP5500 is a current probe with a bandwidth of 2 MHz. This probe has a rise time of ≤ 175 ns and a maximum current of 750 A.
Compatible with the following oscilloscope series
- SDS7000A
- SDS6000A
- SDS6000L
- SDS5000X
- SDS3000X
Technical Data
| Probe comparison |  SCP5030 |  SCP5030A |  SCP5150 |  SCP5500 |
|---|---|---|---|---|
| Bandwidth | DC-50MHz | DC-100MHz | DC-12MHz | DC-2MHz |
| Rise time | ≤ 7nS | ≤ 3.5nS | ≤ 29nS | ≤ 175nS |
| Max. effective AC value | 30 Arms | 30 Arms | 150 Arms | 500 Arms |
| Peak-peak value | 50 A | 50 A | 300 A | 750 A |
| Operating range | 5A(1X)/30A(10X) | 5A(1X)/30A(10X) | 30A(10X)/150A(100X) | 75A(10X)/500A(100X) |
| overload value | 5A(≥5A) 30A(≥50A) | 5A(≥5A) 30A(≥50A) | 30A(≥30A) 150A(≥300A) | 75A(≥75A) 500A(≥750A) |
| Transfer rate | 5A(1V/A) 30A(0.1V/A) | 5A(1V/A) 30A(0.1V/A) | 30A(0.1V/A) 150A(0.01V/A) | 75A(0.1V/A) 500A(0.01V/A) |
| Measurement resolution | 5A(1mA) 30A(10mA) | 5A(1mA) 30A(10mA) | 30A(10mA) 150A(100mA) | 75A(10mA) 500A(100mA) |
| DC accuracy | 5A(±1%±1mA) 30A(±1%±10mA) | 5A(±1%±1mA) 30A(±1%±10mA) | 30A(±1%±10mA) 150A(±1%±100mA) | 75A(±1%±10mA) 500A(±1%±100mA) |
| Max. Rated voltage to earth | 300V CAT I | 300V CAT I | 300V CAT III 600V CAT II | 300V CAT III 600V CAT II |
| Cable diameter Max. | 5mm | 5mm | 20mm | 20mm |
| Power supply | Direct power supply by the oscilloscope via SAPBUS | Direct power supply from the oscilloscope via SAPBUS | Direct power supply from the oscilloscope via SAPBUS | Direct power supply from the oscilloscope via SAPBUS |
| Weight | 270g | 270g | 475g | 475g |
