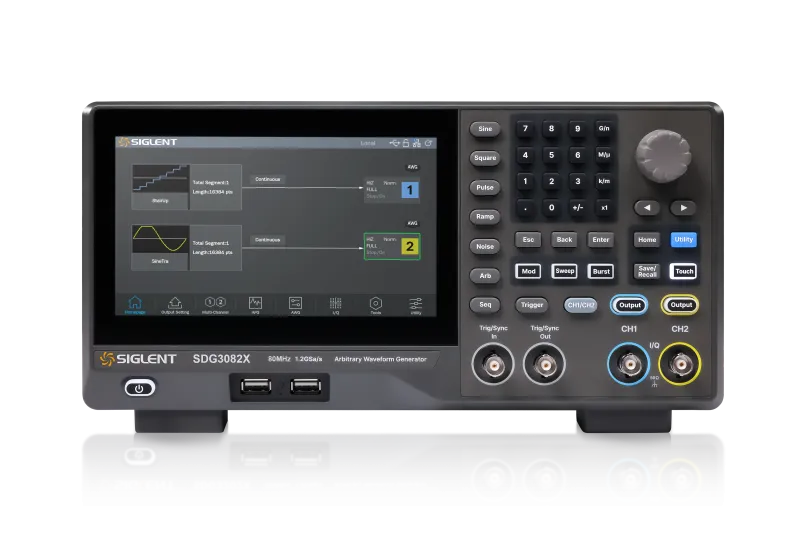

Siglent SDG3082X Function generator

The SDG3082X function generator from Siglent offers an output frequency of 80 MHz and 2 channels.

€690.00*

Volume discounts on request!

incl. VAT. (inactive)

Prices excl. VAT plus shipping costs

3-year guarantee

2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.

Free shipping

Delivery time: 12 weeks

Further information

Product number: SDG3082X

Manufacturer: Siglent

SDG3082X Function generator

Offer

Description

The SDG3082X dual-channel function generator offers a maximum output frequency of 80 MHz and a vertical resolution of 16 bits. This device has an excellent sampling system with a sampling rate of 1.2 GSa/s.

Features

Two channels, maximum output frequency 80 MHz, maximum output amplitude 20 Vpp
1.2 GSa/s sampling rate, 16-bit vertical resolution
With TrueArb technology, any waveform can be output point by point. Provided that no waveform details are lost, waveforms with low jitter can be output at a sampling rate of 10 mSa/s to 600 MSa/s.
Supports the sequence wave playback function with a maximum waveform memory of 40 Mpts per channel.
Using EasyPulse technology, it can output square waves/pulses with low jitter, and the pulse wave enables fine adjustment of pulse width and rising/falling edges with extremely high adjustment resolution and a wide adjustment range.
Supports the dual-pulse output function, which can measure the switching parameters of power devices and evaluate their dynamic characteristics.
Supports PRBS up to 120 Mbit/s
Extensive analogue and digital modulation functions: AM, DSB-SC, FM, PM, FSK, ASK, PSK and PWM
Sweep and burst functions
Waveform combination function
High-precision frequency counter
196 integrated arbitrary waveforms
Standard interfaces: USB host, USB device (USBTMC), LAN (VXI-11); optional GPIB
The integrated web server supports the control of measuring devices via a web browser.
7-inch touchscreen display

Hardware details

Based on traditional DDS technology, it utilises innovative TrueArb and EasyPulse technologies that overcome the inherent shortcomings of DDS technology in the output of arbitrary waves and square waves/pulses, providing users with high-resolution signals with low jitter. In addition, the SDG3000X offers PRBS pattern, sequence, double pulse and vector signal generation capabilities to meet a wider range of application requirements.

Product highlights

Modulation

Extensive modulation functions that support common AM/DSB-SC/FM/PM/ASK/FSK/PSK/PWM modulation methods. Two modulation sources are available: internal and external.

Burst

Supports two burst modes: N-cycle and gating. Three trigger sources are available: internal, external and manual.

Sweep

Supports three sweep modes: frequency, amplitude and frequency and amplitude, making it easier to perform frequency and amplitude sweep tests. Supports three sweep types: linear, logarithmic and stepwise and three sweep directions: up, down and up/down. Three trigger sources are available: internal, external and manual.

Counter

When the counter is in frequency counter mode, it can be used to measure the frequency, period and duty cycle of a signal. The measuring range is between 0.1 Hz and 200 MHz. In totaliser mode, the specified trigger events can be counted.

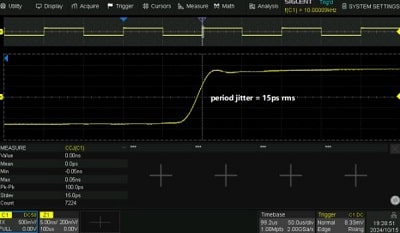

Innovative EasyPulse technology

When a square/pulse waveform is generated by DDS, single-ended jitter occurs if the sampling rate is not an integer multiple of the output frequency. EasyPulse technology successfully overcomes this weakness of DDS designs and contributes to the generation of square/pulse waveforms with low jitter.

Powerful sequence playback function

Provides a flexible sequence playback function to easily handle various scenario tests. The maximum waveform storage depth of each channel is 40 Mpts. The number of cycles for each waveform and the order of waveform playback can be easily set. Up to 1024 segments are supported. During playback, the currently playing segment can also be displayed, allowing you to control the test. Five operating modes: continuous, triggered, burst, single and extended. In extended operating mode, you can set the trigger mode for each segment. Four trigger sources are available: "Auto", "External", "Manual" and "Timer".

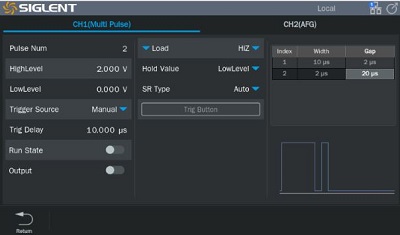

Integrated multiple pulse function

The integrated dual pulse output function in combination with Siglent's oscilloscope enables fast measurement of switching parameters and dynamic characteristics of power devices without the need for host computer software. Supports up to 30 pulses, each pulse width and pulse interval can be set. Four trigger sources are available: "Internal", "External", "Manual" and "Timer".

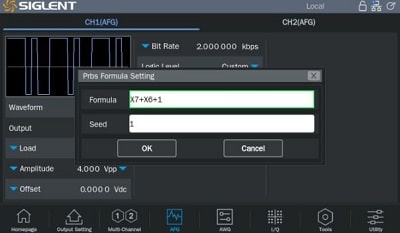

Customisable output of polynomial PRBS patterns

Provides multiple pattern outputs from PRBS3 to PRBS32 with a maximum bit rate of up to 120 Mbps. In addition to outputting single-ended signals, the two channels can also be set to differential output. In addition to using the integrated PRBS generator polynomial, you can also customise the PRBS generator polynomial to make the test more flexible.

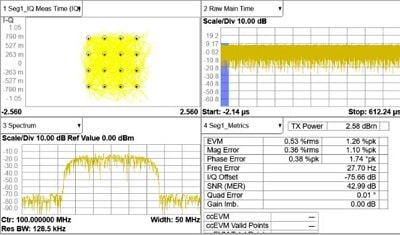

Vector signal output

The SDG3000X supports baseband or IF signals and can generate IQ signals of common modulation types such as ASK, FSK, PSK, QAM, etc. The SDG3000X achieves excellent EVM performance at any symbol rate in the range from 250 Symb/s to 50 MSymb/s. The integrated digital orthogonal modulator can modulate the IQ signal to any frequency in the range of 200 MHz.

Productvideo

Pulse/arbitrary waveform generators - SDG3000X series

Technical Data

Model comparison	SDG3082X	SDG3162X	SDG3202X
Maximum output frequency	80 MHz	160 MHz	200 MHz
Number of channels	2	2	2
Sampling rate	1.2GSa/s (2X interpolation)	1.2GSa/s (2X interpolation)	1.2GSa/s (2X interpolation)
Vertical resolution	16 bits	16 bits	16 bits
Waveform length	20 Mpts/channel (40 Mpts/channel optional) Supported sequence	20 Mpts/channel (40 Mpts/channel optional) Supported sequence	20 Mpts/channel (40 Mpts/channel optional) Supported sequence
Vector signal (optional)	50 MS/s maximum symbol rate; includes modulation modes such as ASK, PSK, FSK and QAM. The SigIQPro software enables the creation and processing of vector signals.	50 MS/s maximum symbol rate; includes modulation modes such as ASK, PSK, FSK and QAM. The SigIQPro software enables the creation and processing of vector signals.	50 MS/s maximum symbol rate; includes modulation modes such as ASK, PSK, FSK and QAM. The SigIQPro software enables the creation and processing of vector signals.
Max. Amplitude	±10 V	±10 V	±10 V
Display	7-inch touchscreen	7-inch touchscreen	7-inch touch screen
Interface: Standard	Standard: USB host, USB device, LAN Optional: GPIB (USB-GPIB adapter)	Standard: USB host, USB device, LAN Optional: GPIB (USB-GPIB adapter)	Standard: USB host, USB device, LAN Optional: GPIB (USB-GPIB adapter)
