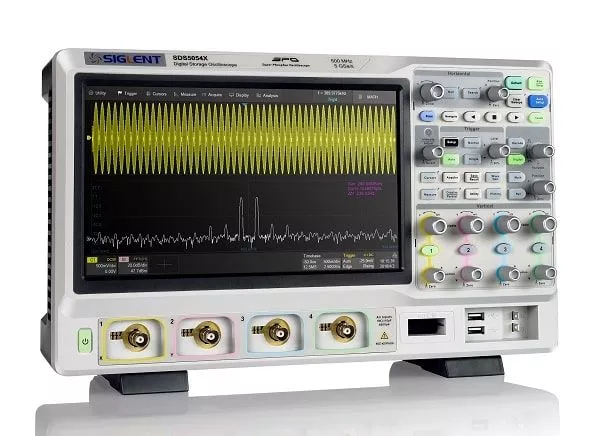

The Siglent SDS5054X storage oscilloscope has a bandwidth of 500-MHz and 4 analog channels. It has a maximum sampling rate of 5 GSa/s and a memory depth of 250 Mpts. The user-friendly design of the control interface allows quick access to the most frequently needed functions.

Features

Model 500 MHz with real-time sampling rate up to 5 GSa / s
4 channels + EXT
SPO technology
Signal acquisition rates up to 110,000 Wfm / s (normal mode) and 480,000 Wfm / s (sequence mode)
Supports 256 intensity levels and color temperature display modes
Record length up to 250 Mpts
Digital trigger system
Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified and Video (HDTV supported). The trigger zone simplifies advanced triggering
Serial bus triggering and decoder, supports I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S and MIL-STD-1553B protocols
Low background noise, supports voltage scales from 0.5 mV / div to 10 V / div
Segmented acquisition mode (sequence), which divides the maximum record length into multiple segments (up to 100,000) according to user-specified trigger conditions with a very short dead time between segments to capture the qualification event
History waveform record (history) function, the maximum length of the recorded signal waveform is 100,000 frames
Automatic measurement function for 39 parameters, supports statistics with histogram, gating measurement, math measurement, history measurement, and ref measurement
25 MHz function / arbitrary signal generator, built-in multiple predefined signal waveforms
Large 10.1-inch TFT LCD display with a resolution of 1024 * 600; The capacitive touch screen supports multi-touch gestures
Multiple interfaces: USB host, USB device (USBTMC), LAN (VXI-11, Telnet, jack, web), pass / fail, trigger out, 10 MHz in, 10 MHz out, VGA output.
Built-in web server supports remote control via LAN port using web browser
Supports SCPI remote control commands

Hardware details

The SDS5000X series uses Siglent's SPO technology with a maximum signal acquisition rate of up to 110,000 Wfm / s (normal mode, up to 480,000 Wfm / s in sequence mode). It also features an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports several powerful trigger modes, including triggering via serial bus. Recording of signal waveform history, sequence capture, and search and navigate, allows extended signal waveforms to be captured, stored, and analyzed.

An impressive array of measurement and calculation functions, options for a 25 MHz arbitrary signal generator, and serial decoding are also already included in the SDS5000X series . The 10.1 "large capacitive touch screen with touchscreen supports multi-touch gestures. The SDS5000X series also supports mouse and external keyboard control.

Product highlights

$advanced math funktion$

Advanced mathematical function

In addition to the conventional operations (+, -, X, /), FFT, integration, differential and square root operations are supported. Math in Math is available for more complex operations

Hardware-based Average und Eres Acquisition

Hardware-based average and Eres acquisition

Average and Eres (Enhanced Resolution) acquisition modes are hardware-based, so waveforms can be acquired faster

Web control

With the new embedded web server, users can control the oscilloscope from a simple web page. This provides wonderful remote troubleshooting and monitoring capabilities.

Signal curves histogram

The waveform histogram function provides a statistical view of the waveform in horizontal and vertical direction

Serial bus decoding

View the decoded characters via the event list. Bus protocol information can be displayed quickly and intuitively in tabular form. Supported are I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S and MIL-STD-1553B

Sequence Mode

The segmented memory collection stores the signal waveform in multiple memory segments (up to 100,000), and each segment stores a triggered signal wave and the dead time information. The dead time between segments can be up to 2 μs. All segments can be played back with the history function

Search and navigate

The SDS5000X can search for user-specified events in a frame. Events marked with the search can be automatically retrieved with Navigate. It is also possible to navigate by time (delay position) and history frames

Recording lengths up to 250 Mpts/ch

Using hardware-based zoom technology and a recording length of up to 250 Mpts, users can select a slower time base without affecting the sampling rate and then zoom quickly to focus on the area of interest.

Parameter Statistics Function

The statistic shows the current value, the maximum value, the minimum value, the standard deviation and the mean value of up to 5 parameters simultaneously. A histogram shows the probability distribution of a parameter.

History Mode

The history function can record up to 100,000 frames of waveforms. Recording is automatic, so the customer can play back the stored waveform history at any time to observe unusual events and quickly locate the area of interest using the cursors and measurements.

Hardware-based high speed mask test function

The SDS5000X has a hardware-based mask test function that performs up to 110,000 pass/fail decisions per second. Custom test templates can be easily created to provide trace mask comparisons, making it suitable for long-term signal monitoring or automated production line testing

Up to 110,000 wfm/s update rate of the signal curve

With a signal waveform update rate of up to 110,000 Wfm / s, the oscilloscope can easily capture unusual events or low probability events. In sequence mode, the signal acquisition rate can reach 480,000 Wfm / s

Digital voltmeter function

4-digit voltmeter and 7-digit frequency counter. Any analog channel can be selected as a source. Bar, histogram and trend graphs are supported

Trigger Zone

The trigger zone is available for extended triggering

Multiple trigger functions

Edge, Slope, Pulse, Video, Windows, Runt, Interval, Dropout, Pattern, qualified and serial triggering

Productvideo

SDS5000X - Feature Highlights Part 1

SDS5000X Series - Introduction

SDS5000X - Feature Highlights Part 2

Technical Data

Device specification	SDS5054X	SDS5034X	SDS5104X
Bandwidth	500 MHz	350 MHz	1 GHz
Channels	4+EXT	4+EXT	4+EXT
Maximum sampling rate	5 GSa/s (single Channel) 2,5 GSa/s (dual Channel)	5 GSa/s (single Channel) 2,5 GSa/s (dual Channel)	5 GSa/s (single Channel) 2,5 GSa/s (dual Channel)
Signal acquisition rate	110,000 wfm/s (normal mode) 480,000 wfm/s (sequence mode)	110,000 wfm/s (normal mode) 480,000 wfm/s (sequence mode)	110,000 wfm/s (normal mode) 480,000 wfm/s (sequence mode)
Memory depth	250 Mpts (single Channel) 125 Mpts (dual channel)	250 Mpts (single Channel) 125 Mpts (dual channel)	250 Mpts (single Channel) 125 Mpts (dual channel)
Display	10,1 Zoll LCD "1024*600"	10,1 Zoll LCD "1024*600"	10,1 Zoll LCD "1024*600"
