The Y504MS is a calibration kit for vector network analyzers
€1,870.00*
Volume discounts on request!
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Free shipping
Delivery time 1 to 3 days
Model
Further information
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Product number: Y504MS
Manufacturer: Siglent
Description

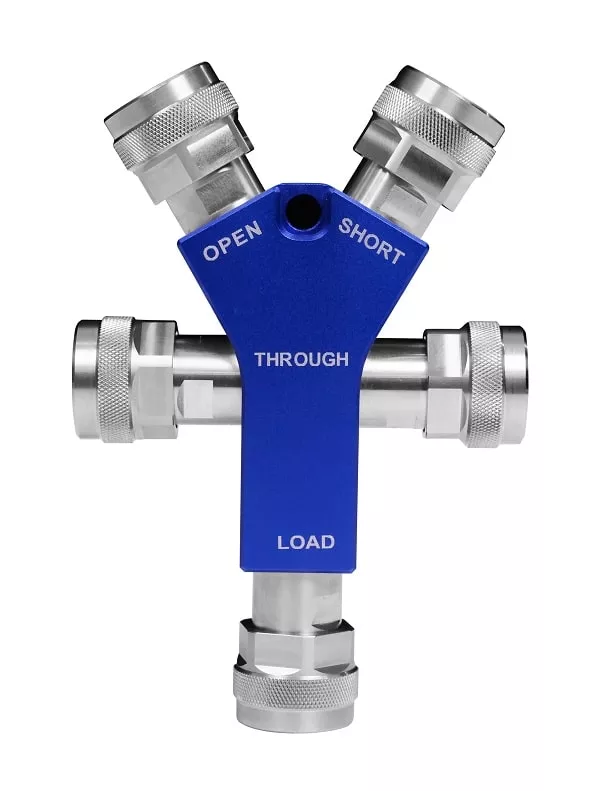

The Y504MS N connector is an integrated 9GHz mechanical calibration kit for Siglent's vector network analyzers. The kit provides fixed connections, open circuits, short circuits and continuity adapters.
Features
- Open (M)
- Short (M)
- Match/Load (M, 50 Ohm)
- Pass (MM) DC - 9 GHz
Technical Data
| Model | Model Description | Connections |
|---|---|---|
| F503ME | Mech. Calibration kit: OSLT*, 50 Ω, DC - 4.5 GHz | N connector |
| F503FE | Mech. Calibration kit: OSLT*, 50 Ω, DC - 4.5 GHz | N-socket |
| F603ME | Mech. Calibration kit: OSLT*, 50 Ω, DC - 4.5 GHz | 3.5 mm SMA plug |
| F603FE | Mech. Calibration kit: OSLT*, 50 Ω, DC - 4.5 GHz | 3.5 mm SMA socket |
| F504MS | Mech. Calibration kit: OSLT*, 50 Ω, DC - 9 GHz | N-connector |
| F504FS | Mech. Calibration kit: OSLT*, 50 Ω, DC - 9 GHz | N socket |
| F504TS | Mech. Calibration kit: OSLT*, 50 Ω, DC - 9 GHz | N plug and socket |
| F604MS | Mech. Calibration kit: OSLT*, 50 Ω, DC - 9 GHz | 3.5 mm SMA plug |
| F604FS | Mech. Calibration kit: OSLT*, 50 Ω, DC - 9 GHz | 3.5 mm SMA socket |
| F604TS | Mech. Calibration kit: OSLT*, 50 Ω, DC - 9 GHz | 3.5 mm plug and socket |
| F505TS | Mech. Calibration kit: OSLT*, 50 Ω, DC - 18 GHz | N plug and socket |
| F606TS | Mech. Calibration kit: OSLT*, 50 Ω, DC - 27 GHz | 3.5 mm plug and socket |
| Y504MS | Integrated mech. calibration kit: OSLT*, 50 Ω, DC - 9 GHz | N-connector |
| Y504FS | Integrated mech. calibration kit: OSLT*, 50 Ω, DC - 9 GHz | N-connector |
* Open, Short, Load, Through
