The F504MS is used to calibrate Siglent vector network analyzers
€1,269.00*
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Free shipping
Delivery time: 2 to 4 days
Further information
Model
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Product number: F504MS
Manufacturer: Siglent
Description

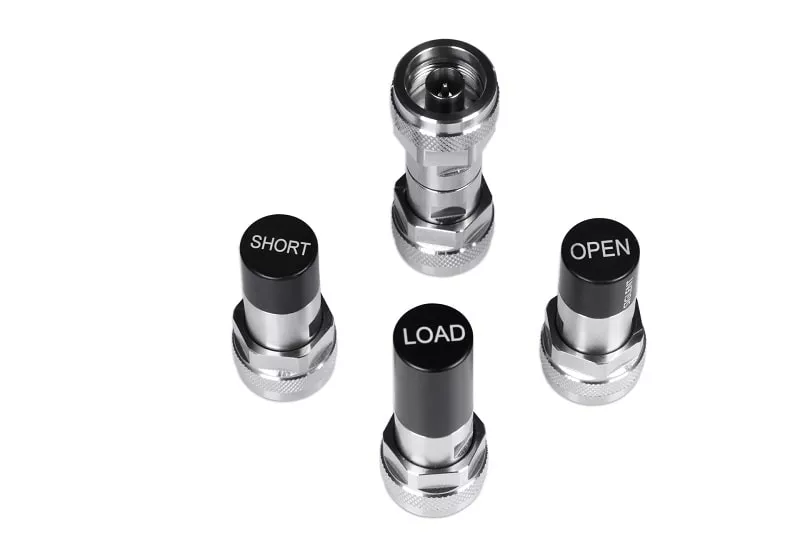

The F504MS is a calibration kit for self-calibration of the SVA1000X vector network analyzers. Open(M), Short(M), Match(M, 50), Through(M-M), 50 Ω, DC-9 GHz, N-type connector.
Features
- Impendence: 50 Ω
- Power: 1 W
- Interfaces standard: IEC 60169-16
- Durability: > 2000
- Torque: 1.35Nm
- Key: 19mm
- Temperature: -15 ℃ ~ + 35 ℃
Technical Data
| Type | Connector | Specification |
|---|---|---|
| Open | N(Male) | DC – 9 GHz, Phase Deviation* ≤ ± 0.8° |
| Short | N(Male) | DC – 9 GHz, Phase Deviation* ≤ ± 0.8° |
| Load | N(Male) | DC – 9 GHz, SWR ≤ 1.032 (Return Loss ≥ -36 dB) |
| Through | N-Male to N-Male | DC – 9 GHz, SWR ≤ 1.06 (Return Loss ≥ -31 dB), 9 – 18 GHz, SWR ≤ 1.1 (Return Loss ≥ -26 dB), Insert Loss ≤ 0.2 dB, Delay= 197.1 ps |
| Model | Model Description | Connections |
|---|---|---|
| F503ME | Mech. Calibration kit: OSLT*, 50 Ω, DC - 4.5 GHz | N connector |
| F503FE | Mech. Calibration kit: OSLT*, 50 Ω, DC - 4.5 GHz | N-socket |
| F603ME | Mech. Calibration kit: OSLT*, 50 Ω, DC - 4.5 GHz | 3.5 mm SMA plug |
| F603FE | Mech. Calibration kit: OSLT*, 50 Ω, DC - 4.5 GHz | 3.5 mm SMA socket |
| F504MS | Mech. Calibration kit: OSLT*, 50 Ω, DC - 9 GHz | N-connector |
| F504FS | Mech. Calibration kit: OSLT*, 50 Ω, DC - 9 GHz | N socket |
| F504TS | Mech. Calibration kit: OSLT*, 50 Ω, DC - 9 GHz | N plug and socket |
| F604MS | Mech. Calibration kit: OSLT*, 50 Ω, DC - 9 GHz | 3.5 mm SMA plug |
| F604FS | Mech. Calibration kit: OSLT*, 50 Ω, DC - 9 GHz | 3.5 mm SMA socket |
| F604TS | Mech. Calibration kit: OSLT*, 50 Ω, DC - 9 GHz | 3.5 mm plug and socket |
| F505TS | Mech. Calibration kit: OSLT*, 50 Ω, DC - 18 GHz | N plug and socket |
| F606TS | Mech. Calibration kit: OSLT*, 50 Ω, DC - 27 GHz | 3.5 mm plug and socket |
| Y504MS | Integrated mech. calibration kit: OSLT*, 50 Ω, DC - 9 GHz | N-connector |
| Y504FS | Integrated mech. calibration kit: OSLT*, 50 Ω, DC - 9 GHz | N-connector |
* Open, Short, Load, Through
