The F503ME is used to calibrate Siglent vector network analysers
€339.00*
Volume discounts on request!
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Free shipping
Delivery time 1 to 3 days
Model
Further information
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
Product number: F503ME
Manufacturer: Siglent
Description

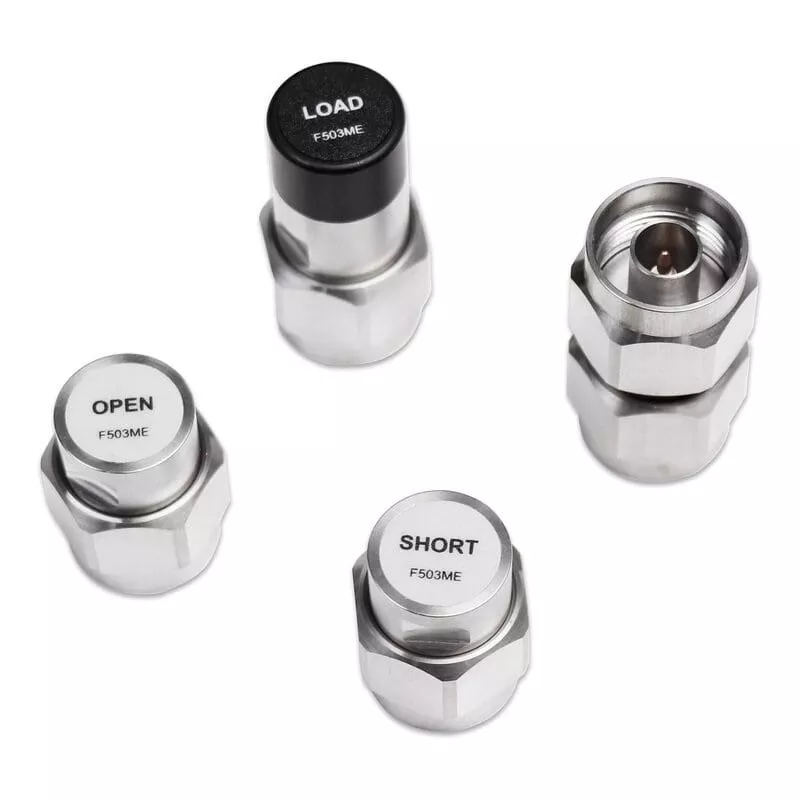

The F503ME is a calibration set for self-calibration of the SVA1000X vector network analysers. Open(M), Short(M), Match(M, 50), Through(M-M), 50 Ω, DC-4.5 GHz, N-type connector.
Features
- Impendence: 50 Ω
- Power: 1 W
- Interface standard: IEC 60169-16
- Durability: > 2000
- Torque: 1.35Nm
- Key: 19mm
- Temperature: -15 ℃ ~ + 35 ℃
Technical Data
| Type | Connection | Specification |
|---|---|---|
| Open | N(Male) | DC - 4.5 GHz, phase deviation ≤ ± 1.0° |
| Short | N(Male) | DC - 4.5 GHz, phase deviation ≤ ± 1.0° |
| Load | N(Male) | DC - 4.5 GHz, SWR ≤ 1.04 (return loss ≥ -34 dB) |
| Through | N(Female) - N(Female) | DC - 9 GHz, SWR ≤ 1.035 (return loss ≥ -35 dB), insertion loss ≤ 0.1 dB, delay=125.4 ps |
| Model | Model Description | Connections |
|---|---|---|
| F503ME | Mech. Calibration kit: OSLT*, 50 Ω, DC - 4.5 GHz | N connector |
| F503FE | Mech. Calibration kit: OSLT*, 50 Ω, DC - 4.5 GHz | N-socket |
| F603ME | Mech. Calibration kit: OSLT*, 50 Ω, DC - 4.5 GHz | 3.5 mm SMA plug |
| F603FE | Mech. Calibration kit: OSLT*, 50 Ω, DC - 4.5 GHz | 3.5 mm SMA socket |
| F504MS | Mech. Calibration kit: OSLT*, 50 Ω, DC - 9 GHz | N-connector |
| F504FS | Mech. Calibration kit: OSLT*, 50 Ω, DC - 9 GHz | N socket |
| F504TS | Mech. Calibration kit: OSLT*, 50 Ω, DC - 9 GHz | N plug and socket |
| F604MS | Mech. Calibration kit: OSLT*, 50 Ω, DC - 9 GHz | 3.5 mm SMA plug |
| F604FS | Mech. Calibration kit: OSLT*, 50 Ω, DC - 9 GHz | 3.5 mm SMA socket |
| F604TS | Mech. Calibration kit: OSLT*, 50 Ω, DC - 9 GHz | 3.5 mm plug and socket |
| F505TS | Mech. Calibration kit: OSLT*, 50 Ω, DC - 18 GHz | N plug and socket |
| F606TS | Mech. Calibration kit: OSLT*, 50 Ω, DC - 27 GHz | 3.5 mm plug and socket |
| Y504MS | Integrated mech. calibration kit: OSLT*, 50 Ω, DC - 9 GHz | N-connector |
| Y504FS | Integrated mech. calibration kit: OSLT*, 50 Ω, DC - 9 GHz | N-connector |
* Open, Short, Load, Through
