€7,495.00 Net
€8,919.05 incl. VAT
Delivery time 1 to 3 days
.jpg){kind=icon}
.jpg){kind=icon}
.jpg)
.jpg)
.jpg)
.jpg)
- 3-year guarantee
- 2.5% advance payment discount
- If you use the payment method in advance by bank transfer, 2.5% of the purchase amount will be automatically deducted at the checkout.
Product configuration
Description

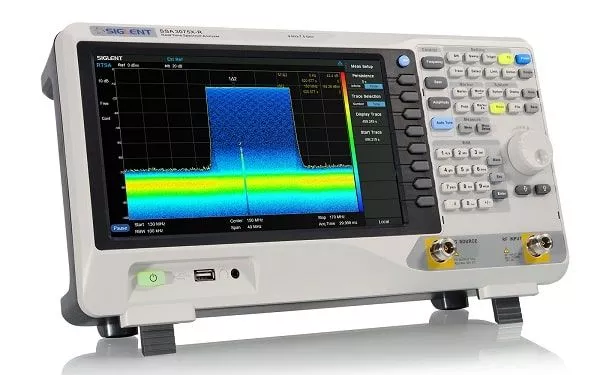

The Siglent SSA3050X-R offers a large multi-touch display (25.65 cm, 10.1") with a resolution of 1024 × 600 pixels and a bandwidth of 5 GHz.
Features
- Frequency range of the spectrum analyser from 9 kHz to 5.0 GHz
- -165 dBm / Hz Displayed average noise level (Typ.)
- -98 dBc / Hz at 10 kHz offset phase noise (1 GHz, Typ.)
- Level measurement uncertainty <0.7 dB (Typ.)
- 1 Hz minimum resolution bandwidth (RBW)
- Preamplifier standard
- Tracking generator standard
- Real-time analysis bandwidth of up to 40 MHz
- 100% POI 7.20 μs, dynamic range 60 dB
- Multi-view for density, spectrogram, PvT as well as multi-trigger and FMT
- Modulation analysis up to 40 MHz BW (opt.)
- Reflection measurement kit (opt.)
- EMI filter and quasi-peak detector kit (opt.)
- Advanced Measurement Kit (opt.)
- 10.1-inch multi-touch screen, mouse and keyboard supported
- Web browser remote control on PC and mobile terminals and file operation
Hardware details
The SIGLENT SSA3000X-R real-time spectrum analysers are powerful and flexible tools for complex RF signal monitoring and analysis. With a capacity of 40 MHz analysis bandwidth and 7.2 µs 100 % POI, the analyser can provide multi-dimensional data displays, advanced triggering and RF data acquisition to solve modern RF spectrum challenges such as hopping frequency, conflict channel, spectrum interference, etc. They also offer a standard tracking generator for network analysis, optional digital wideband modulation analysis and EMI compliance test.
Applications include broadcast monitoring/evaluation, cellular sites, IoT, WiFi, Bluetooth surveying, R&D, education, production and maintenance.
Product highlights
1 Hz minimum resolution bandwidth
The minimum resolution bandwidth (RBW) of 1 Hz makes it possible to analyse signals with minimal frequency differences.
Particularly low inherent noise
The SSA3000X-R series offers a low-noise, high-performance RF front end with a low Displayed Average Noise Level (DANL) of only -165 dBm/Hz and a standard integrated preamplifier. The high sensitivity enables weak signals to be analysed.
Excellent phase noise behaviour
Thanks to the particularly low phase noise of < -98 dBc / Hz (fc=1 GHz, @10 kHz), most synthesisers and signal generators can be analysed.
Large multi-touch screen
A high-resolution 10.1-inch screen with multi-touch ensures simple and efficient operation. Even a mouse and keyboard can be used via USB.
Distance to error mode
Cable and antenna test based on timing domain analysis
Vector network analyser mode
100 kHz - 7.5 GHz Vector S11 and S21 measurement, overlay display for multiple formats
Reflection measurement
VSWR and return loss measurement with Q-value measurement
Real-time analysis mode
Density, 3D, spectrogram, PvT, multi-view and dimensions for monitoring complex signals
EMI measurement mode (EMI option)
Comprehensive EMC compliance measurements with CISPR 16-1-1 EMI filter and integrated CISPR band A/B/C/D presets. Supports peak, quasi-peak and EMI average detectors and multiple pre-stored standards for convenient comparison of emissions to regulatory limits. Bar graph displays and continuous monitoring of the signal allow quick detection of maximum amplitude.
Modulation analysis mode (AMA/DMA option)
Vector signal modulation analysis for analogue (AM/FM) and digital (ASK/FSK/PSK/MSK/QAM) signals. Supports Error Vector Magnitude (EVM) analysis as well as data recording on the computer and playback of recorded data together with a Siglent SSG5000X RF signal generator.
Technical Data
| Model comparison |  | | | |  | | |
|---|---|---|---|---|---|---|---|
| Max. Bandwidth | 1.5 GHz | 2.1 GHz | 3.2 GHz | 7.5 GHz | 3.2 GHz | 5 GHz | 7.5 GHz |
| Real-time bandwidth | x | x | x | x | 25 MHz, 40 MHz (option) | 25 MHz, 40 MHz (option) | 25 MHz, 40 MHz (option) |
| Preamplifier | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Tracking (tracking) generator | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| EMI filter (option) | 200 Hz, 9 kHz, 120 kHz, 1MHz | 200 Hz, 9 kHz, 120 kHz, 1MHz | 200 Hz, 9 kHz, 120 kHz, 1MHz | 200 Hz, 9 kHz, 120 kHz, 1MHz | 200 Hz, 9 kHz, 120 kHz, 1MHz | 200 Hz, 9 kHz, 120 kHz, 1MHz | 200 Hz, 9 kHz, 120 kHz, 1MHz |
| AMK CHP/ACPR/TOI/OBW/Monitor | Option | Option | Option Option | Option option | Option Option | Option option | Option |
| AMA AM/FM | Option | Option | Option | Option | Option | Option option | Option |
| DMA ASK/FSK/PSK/QAM | Option | Option | Option | Option | Option | Option option | Option |
| Touch Screen | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Resolution bandwidth (RBW) | 1 Hz ~ 1 MHz, in 1-3-10 sequence | 1 Hz ~ 1 MHz, in 1-3-10 sequence | 1 Hz ~ 1 MHz, in 1-3-10 sequence | 1 Hz ~ 1 MHz, in 1-3-10 sequence | 1 Hz ~ 3 MHz, in 1-3-10 sequence | 1 Hz ~ 3 MHz, in 1-3-10 sequence | 1 Hz ~ 3 MHz, in 1-3-10 sequence |
| Display of the average noise level (DANL), min. | -156 dBm/Hz | -161 dBm/Hz | -161 dBm/Hz | -165 dBm/Hz | -165 dBm/Hz | -165 dBm/Hz | -165 dBm/Hz |
| Vector network analyser | X | X | X | X | ✓ | ✓ | ✓ |
